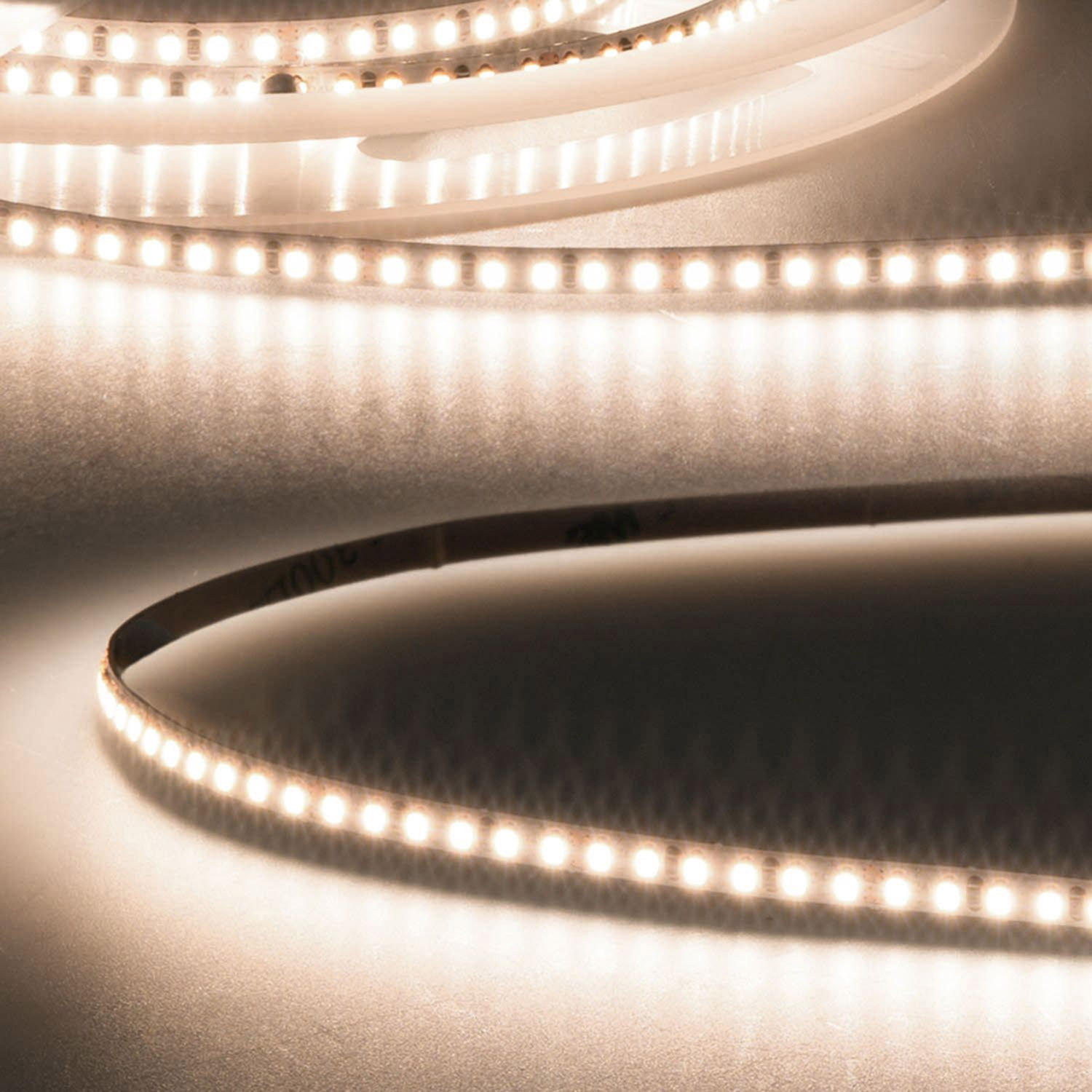

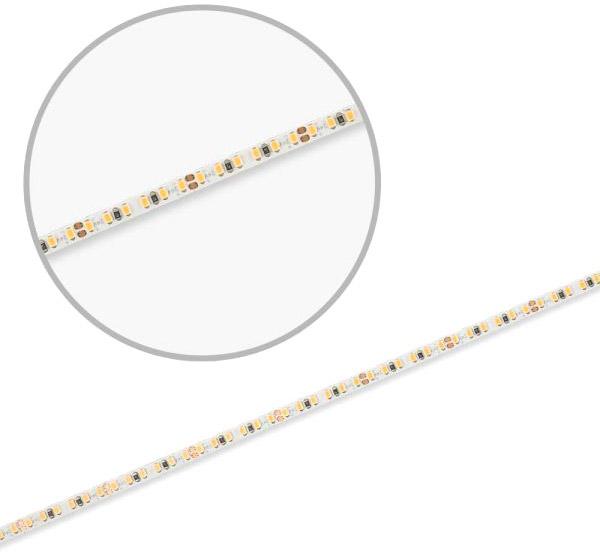

ISOLED LED CRI940 Micro Linear flex stripe, 24V, 6W, IP20

€91.23 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111006080
EAN: 9009377063329
LED CRI940 Micro Linear flex stripe, 24V, 6W, IP20 Length: 5000mm Width: 4mm Height:... more
All information about the product:
"ISOLED LED CRI940 Micro Linear flex stripe, 24V, 6W, IP20"
LED CRI940 Micro Linear flex stripe, 24V, 6W, IP20
Length:5000mm
Width:4mm
Height:3mm
Net weight:90g
LED type:1200xSMD
Nominal voltage:24V DC
Rated power:6W
Colour temperature:4000K
Beam angle:120°
Light intensity:1414cd
Colour rendering:> 93 CRI
Lifetime:50000h
Switching cycles:30000
Protection class:IP20
Energy efficiency class:A++
Dimmable: Yes
dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer
Material:PCB copper/white
Incl. illuminant:No

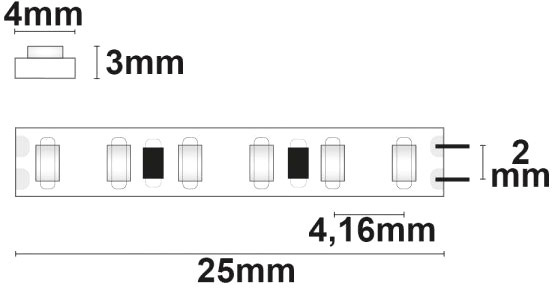

Special features:Separation point: 25mm | Pitch (chip center-center): 4.16mm | 1 roll= 5m | Length Tolerance 1% | max. flex band length per feed-in: 5m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required!
