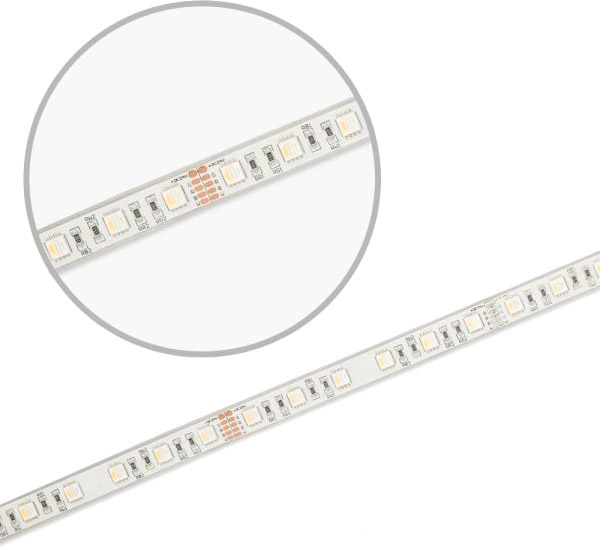

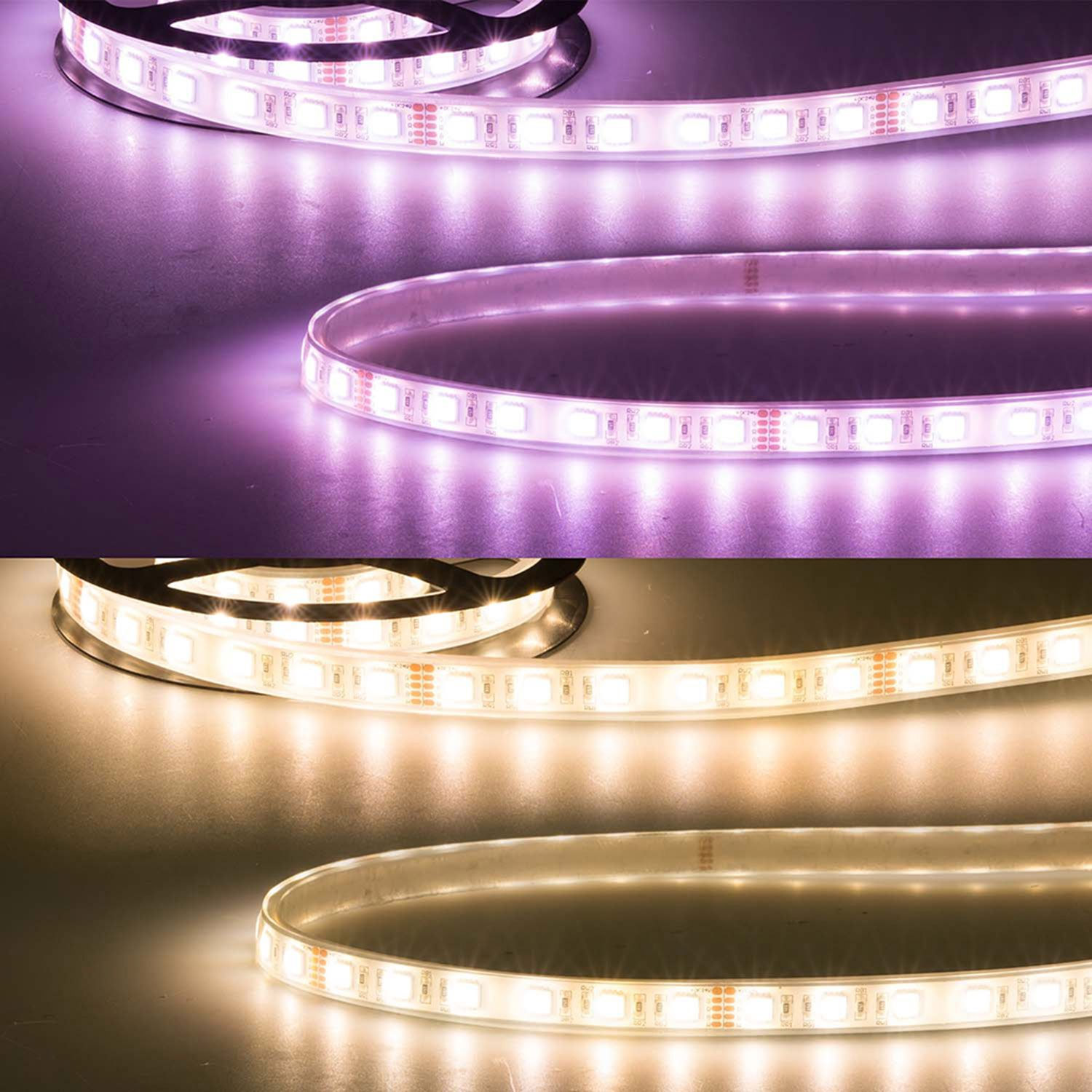

ISOLED LED AQUA RGB+WW flex stripe, 24V, 19W, IP68, 4 in 1 chip
€118.21 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111006435
EAN: 9009377065163
LED AQUA RGB+WW flex stripe, 24V, 19W, IP68, 4 in 1 chip Length: 5000mm Width: 13mm... more
All information about the product:
"ISOLED LED AQUA RGB+WW flex stripe, 24V, 19W, IP68, 4 in 1 chip"
LED AQUA RGB+WW flex stripe, 24V, 19W, IP68, 4 in 1 chip
| Length: | 5000mm |
| Width: | 13mm |
| Height: | 5mm |
| Net weight: | 240g |
| LED type: | 300xSMD5050 4in1 |
| Nominal voltage: | 24V DC |
| Rated power: | 19 W/m |
| Colour temperature: | RGB+3000K |
| Beam angle: | 120° |
| Light intensity: | 1391cd |
| Colour rendering: | > 86 CRI |
| Lifetime: | 25000h |
| Switching cycles: | 30000 |
| Protection class: | IP68 |
| Energy efficiency class: | B |
| Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
| Material: | PCB copper/white, silicone |
| Incl. illuminant: | No |
| Special features: | Separation point: 100mm | Pitch (chip center-center): 16.66mm | 1 roll= 5m | Length Tolerance 1% | max. flex band length per feed-in: 3m | Clean and degrease the substrate before gluing! Do not replace it again! |
