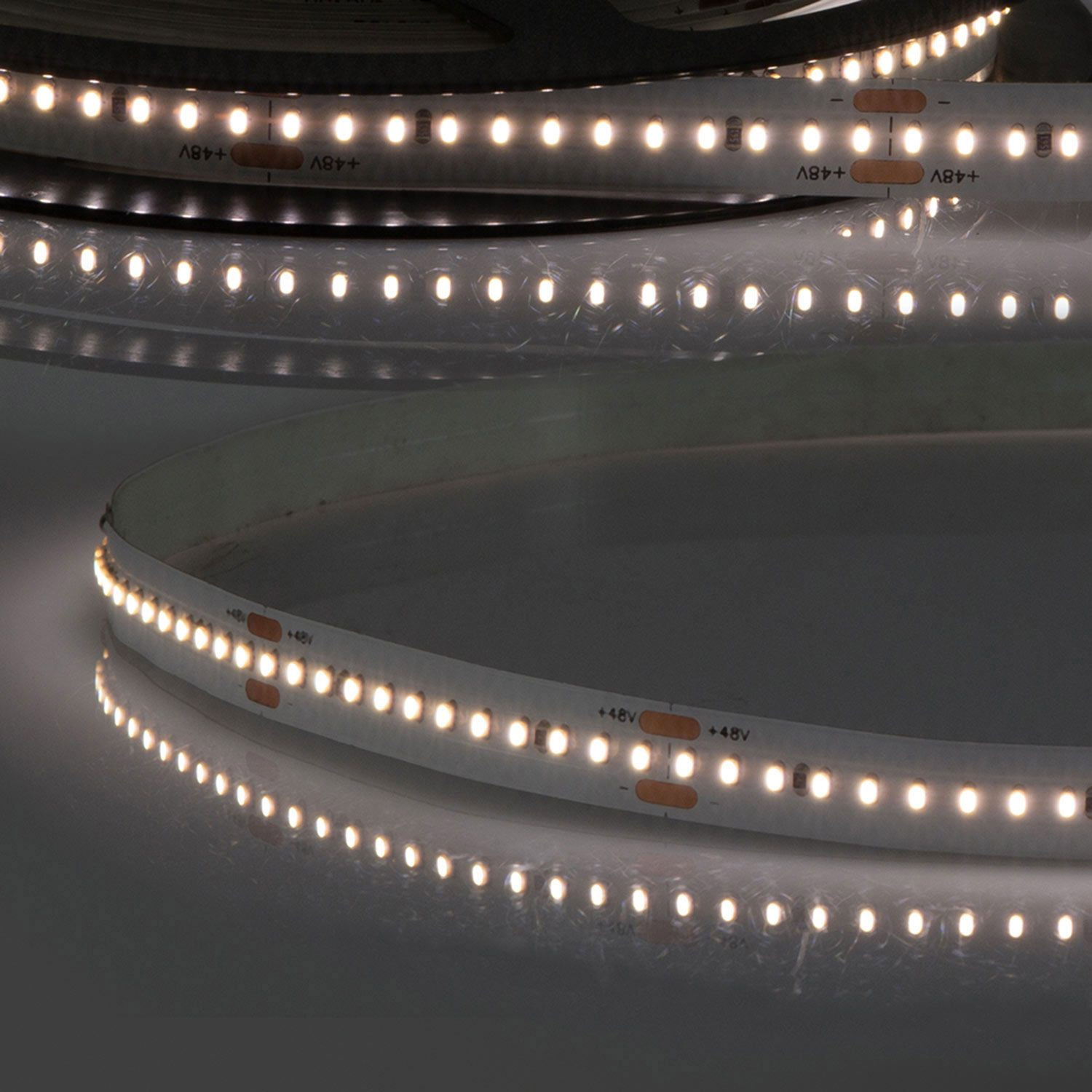

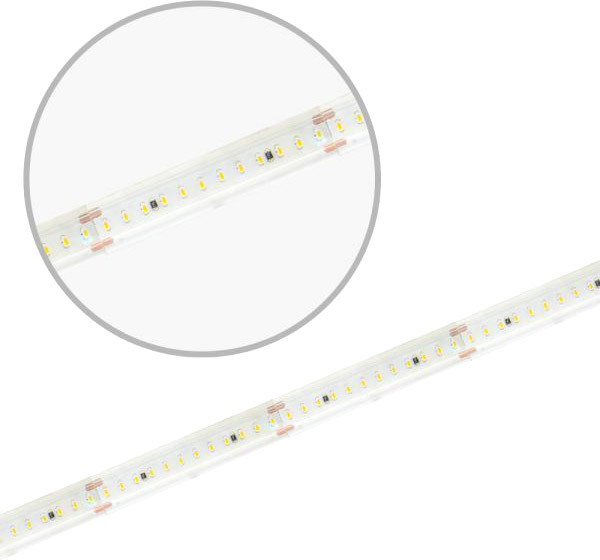

ISOLED LED CRI940 Linear 48V flex stripe, 8W, IP20, 4000K, 30 meter

€515.67 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111007945
EAN: 9009377074486
LED CRI940 Linear 48V flex stripe, 8W, IP20, 4000K, 30 meter Length: 30000mm Width: 10mm... more
All information about the product:
"ISOLED LED CRI940 Linear 48V flex stripe, 8W, IP20, 4000K, 30 meter"
LED CRI940 Linear 48V flex stripe, 8W, IP20, 4000K, 30 meter
Length:30000mm
Width:10mm
Height:2mm
Net weight:514g
LED type:7200xSMD2110
Nominal voltage:48V DC
Rated power:8 W/m
Colour temperature:4000K
Beam angle:120°
Colour rendering:> 95 CRI
Lifetime:50000h
Switching cycles:100000
Protection class:IP20
Energy efficiency class:A+
Dimmable: Yes
dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer
Material:PCB copper/white
Incl. illuminant:No
Special features:Separation point: 50mm | Pitch (chip center-center): 4.16mm | 1 roll= 30m | Length Tolerance 1% | max. flex belt length per feed-in: 15m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required!
