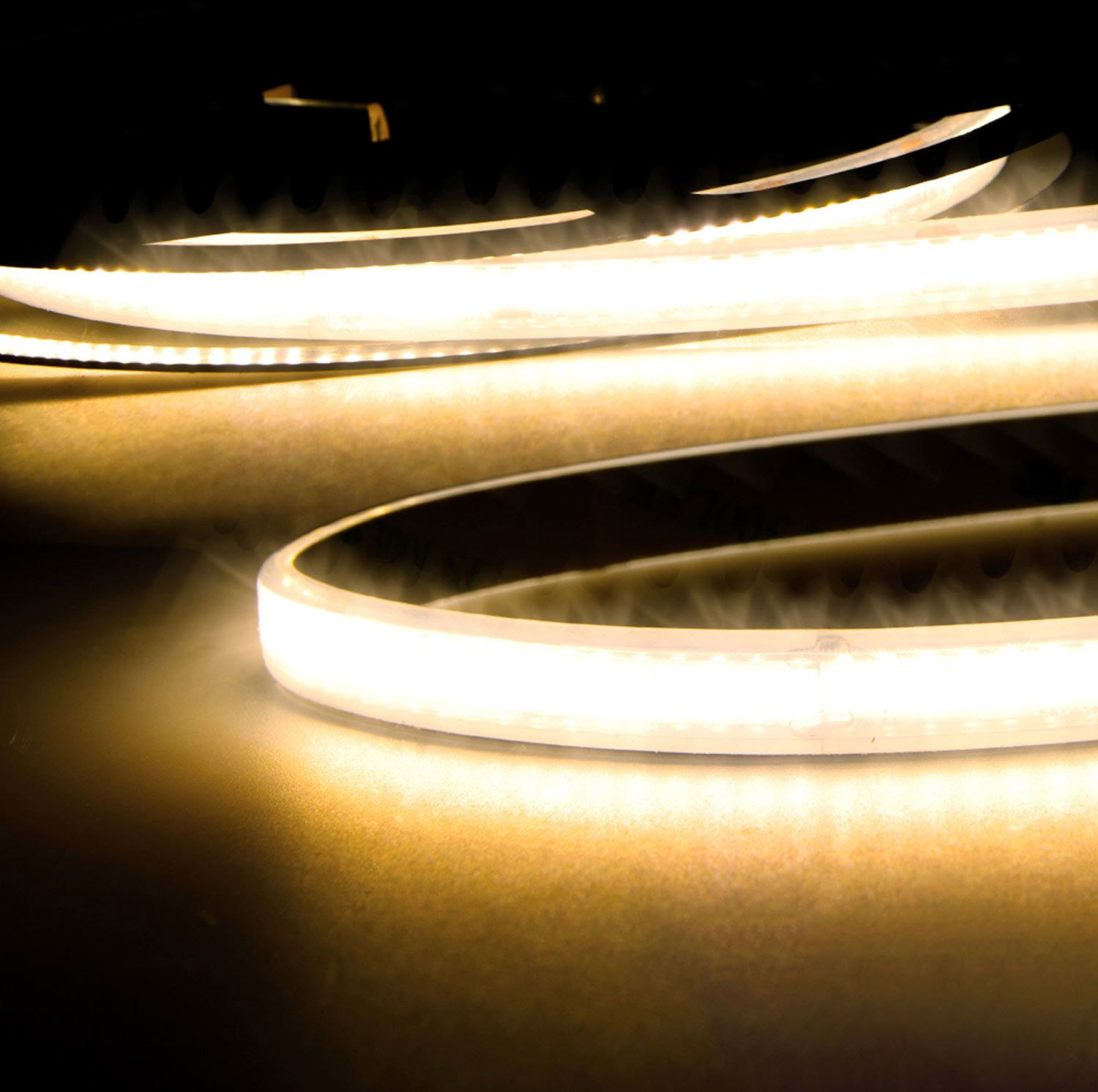

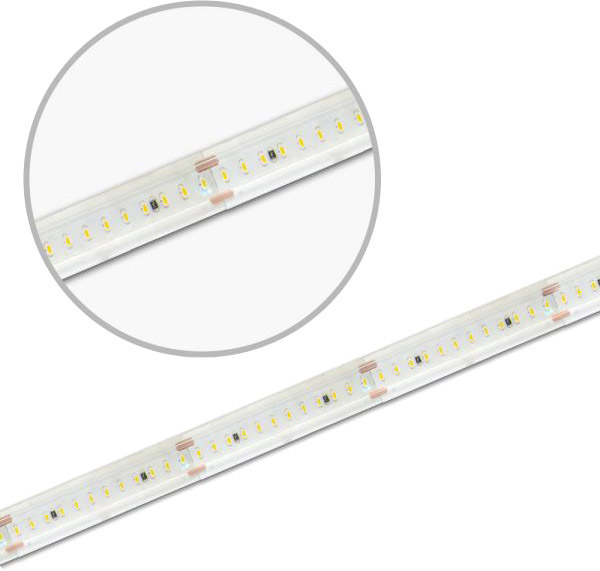

ISOLED LED CRI930 Linear 48V fllex stripe, 13W, IP68, 3000K, 20 meter
€515.67 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111007990
EAN: 9009377074660
LED CRI930 Linear 48V fllex stripe, 13W, IP68, 3000K, 20 meter Length: 20000mm Width:... more
All information about the product:
"ISOLED LED CRI930 Linear 48V fllex stripe, 13W, IP68, 3000K, 20 meter"
LED CRI930 Linear 48V fllex stripe, 13W, IP68, 3000K, 20 meter

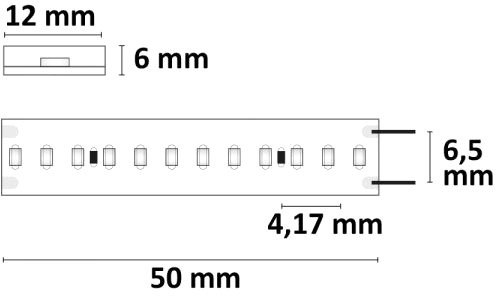

| Length: | 20000mm |
| Width: | 12mm |
| Height: | 6mm |
| Net weight: | 1310g |
| LED type: | 4800xSMD2110 |
| Nominal voltage: | 48V DC |
| Rated power: | 13 W/m |
| Colour temperature: | 3000K |
| Beam angle: | 120° |
| Colour rendering: | > 95 CRI |
| Lifetime: | 50000h |
| Switching cycles: | 100000 |
| Protection class: | IP68 |
| Energy efficiency class: | A+ |
| Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
| Material: | PCB copper/white, silicone |
| Incl. illuminant: | No |
| Special features: | Separation point: 50mm | Pitch (chip center-center): 4.16mm | 1 roll= 20m | Length Tolerance 1% | max. flex belt length per feed-in: 15m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required! |
