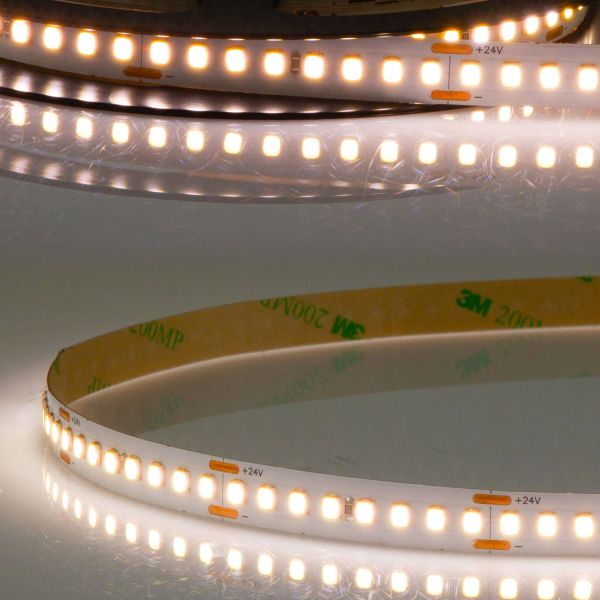

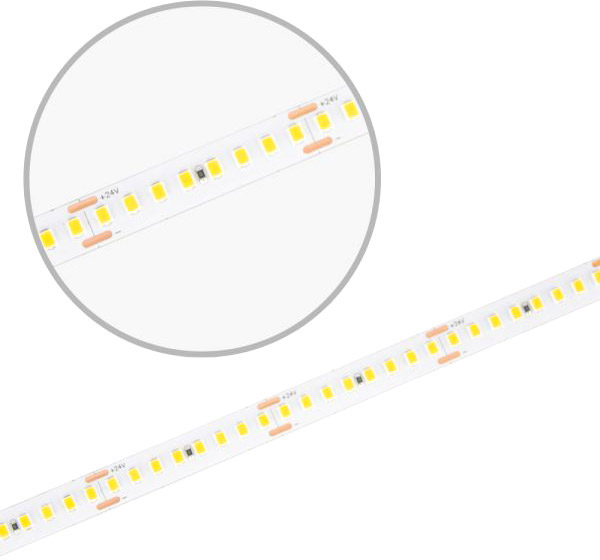

ISOLED LED HEQ930 flex stripe High Bright, 24V, 12W, IP20, 3000K
€86.47 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111008035
EAN: 9009377074851
LED HEQ930 flex stripe High Bright, 24V, 12W, IP20, 3000K Length: 5000mm Width: 10mm... more
All information about the product:
"ISOLED LED HEQ930 flex stripe High Bright, 24V, 12W, IP20, 3000K"
LED HEQ930 flex stripe High Bright, 24V, 12W, IP20, 3000K
| Length: | 5000mm |
| Width: | 10mm |
| Height: | 1mm |
| Net weight: | 115g |
| LED type: | 800xSMD2835 |
| Nominal voltage: | 24V DC |
| Rated power: | 12W |
| Colour temperature: | 3000K |
| Beam angle: | 120° |
| Colour rendering: | > 93 CRI |
| Lifetime: | 30000h |
| Switching cycles: | 100000 |
| Protection class: | IP20 |
| Energy efficiency class: | A++ |
| Dimmable: | Yes dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer |
| Material: | PCB copper/white |
| Incl. illuminant: | No |

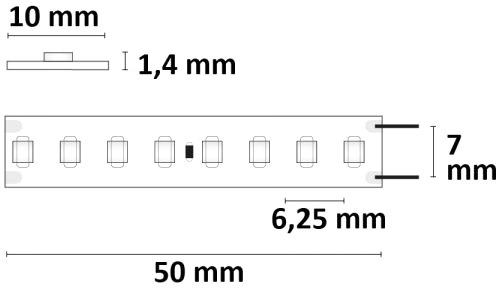

| Special features: | Separation point: 50mm | Pitch (chip center-center): 6.25mm | 1 roll= 5m | Length Tolerance 1% | max. flex belt length per feed-in: 4m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile required! |
Further links
- Do you have any questions concerning this product?
- Further products by ISOLED
-
Information about the manufacturerObligation to provide information on product safety (GPSR)Manufacturer:ISOLED FIAI Handels GmbH
Egerbach 48
AUT-6334 SCHWOICH
office@isoled.at -
Safety instructions and warningsSafety instructions and warnings (GPSR)Specific safety instructions that apply to the product can be found in the operating instructions for the product.
We will be happy to advise you!
You can reach us:
| Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Learn more about us!
Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads
"ISOLED LED HEQ930 flex stripe High Bright, 24V, 12W, IP20, 3000K"
| Document type | File size | |
|
EPREL-Product data sheet | 0.25 MB |
