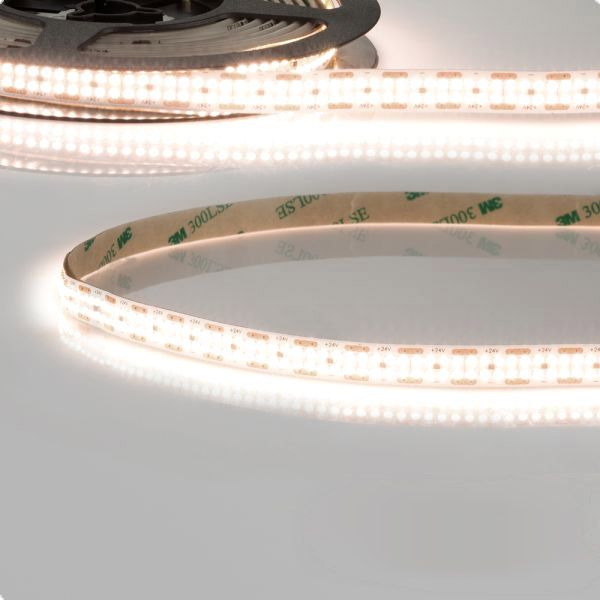

ISOLED LED CRI940 Linear ST10 flex stripe, 24V, 22W, double row, IP20, neutral white

ISOLED LED CRI940 Linear ST10-Flexband, 24V, 22W, zweireihig, IP20, neutralweiß
€149.94 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Currently not available
Currently not available
Item number: 111008050
EAN: 9009377074929
LED CRI940 Linear ST10 flex stripe, 24V, 22W, double row, IP20, neutral white Length: 5000mm... more
All information about the product:
"ISOLED LED CRI940 Linear ST10 flex stripe, 24V, 22W, double row, IP20, neutral white"
LED CRI940 Linear ST10 flex stripe, 24V, 22W, double row, IP20, neutral white
Length:5000mm
Width:10mm
Height:1mm
Net weight:98g
LED type:3200xSMD3200
Nominal voltage:24V DC
Rated power:22 W/m
Colour temperature:4000K
Beam angle:120°
Colour rendering:> 95 CRI
Lifetime:30000h
Switching cycles:100000
Protection class:IP20
Energy efficiency class:A+
Dimmable: Yes
dimmable via voltage drop or pulse-width or pulse frequency modulated DC power supply from a suitable controller/sequencer, dimming actuator or transformer
Material:PCB copper/white
Indoor and Outdoor:Yes
Incl. illuminant:No
Special features:Separation point: 12.5mm | Pitch (chip center-center): 1.56mm | 1 roll= 5m | Length Tolerance 1% | max. flex band length per feed-in: 3m | Clean and degrease the substrate before gluing! Do not replace again! | Cooling profile with a mass of at least 280gr/m required!
