ISOLED LED COB930-MICRO Linear flex stripe, 24V, 7W, IP20, 3000K, 504 LED/m
€68.52 *
Availability:
Currently not available.
Expected to be available again in 7 weeks.
Expected to be available again in 7 weeks.
Currently not available
Item number: 111012620
EAN: 9009377147968
ISOLED LED COB930-MICRO Linear flex stripe, 24V, 7W, IP20, 3000K, 504 LED/m Technical data:... more
All information about the product:
"ISOLED LED COB930-MICRO Linear flex stripe, 24V, 7W, IP20, 3000K, 504 LED/m"
ISOLED LED COB930-MICRO Linear flex stripe, 24V, 7W, IP20, 3000K, 504 LED/mTechnical data:

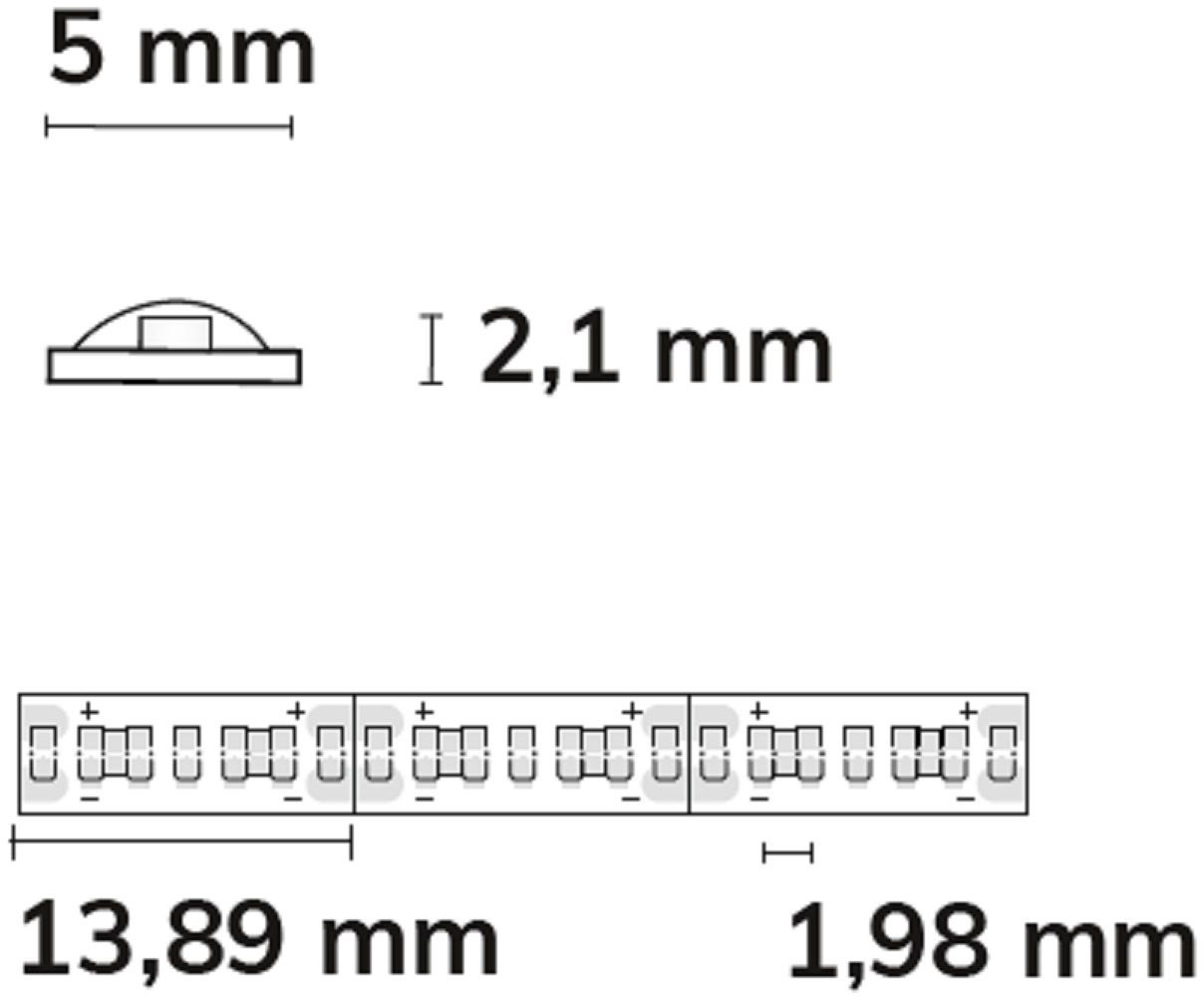

| Length: | 5000 mm |
| Width: | 5 mm |
| Height: | 2,10 mm |
| LED type: | SMD0402 |
| Nominal power: | 6,60 W |
| Rated power: | 7 W |
| Colour temperature: | 3000K |

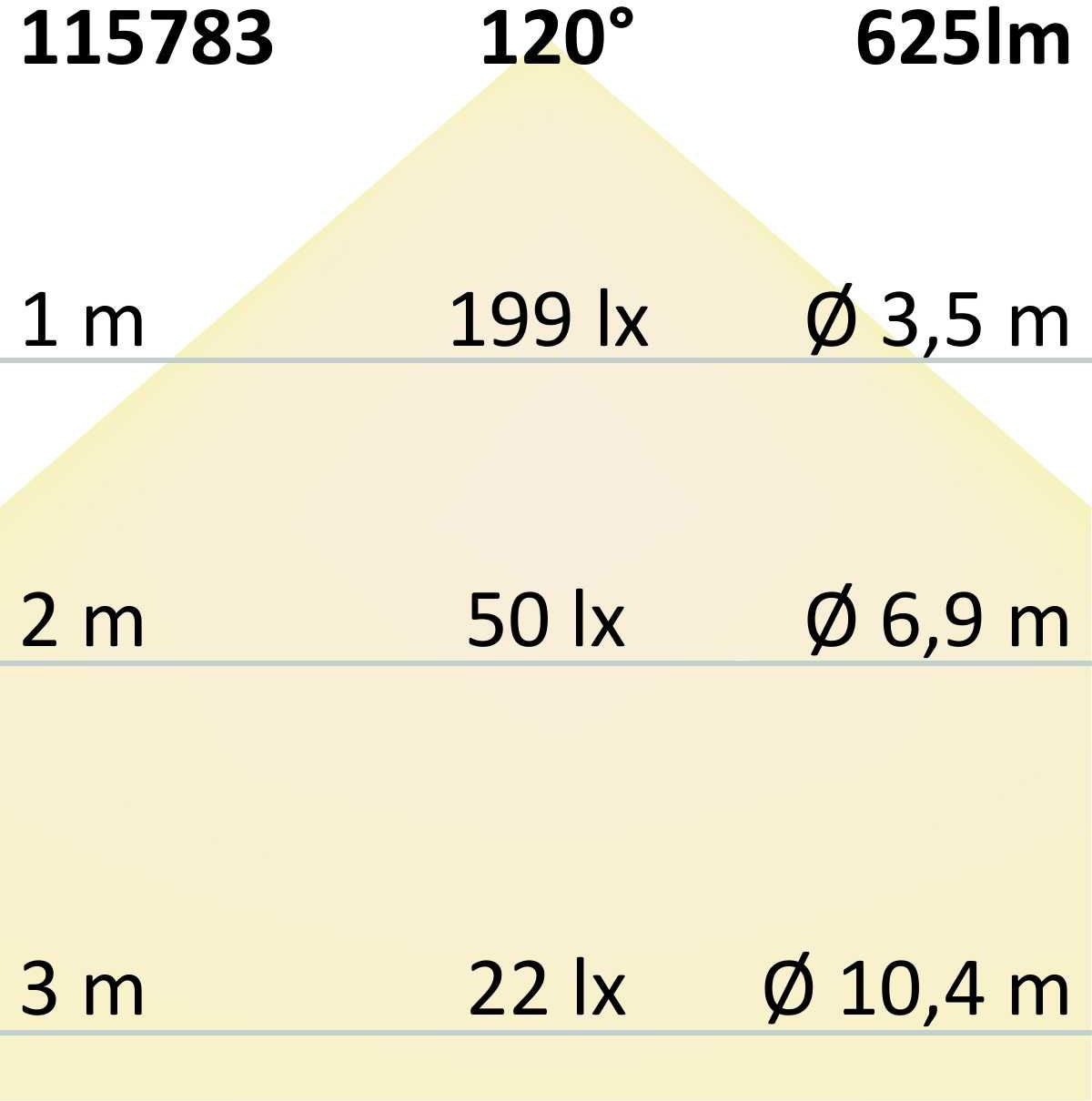

| Luminous flux: | 625 lm |
| Light intensity: | 207 cd |
| Colour rendering: | 90 CRI |
| Lifetime: | 30000 h |
| Switching cycles: | 100000 |
| Protection class: | IP20 |
| Energy efficiency class: | F |
| Material: | Copper |
| Incl. illuminant: | No |
| Special features: | Separation point: 50mm with 25.2 SMD each | Pitch (chip centre-to-centre): 1.98mm | 1 roll = 5m | max. flex stripe length per feed: 5m | length tolerance + thermal expansion: 1% | incl. 3M 300LSE adhesive tape | clean and degrease substrate before sticking! Do not peel off again! | cooling compound required: min. 75 gr/m |
