Artecta Cayenne 145 Chain of 20 pieces

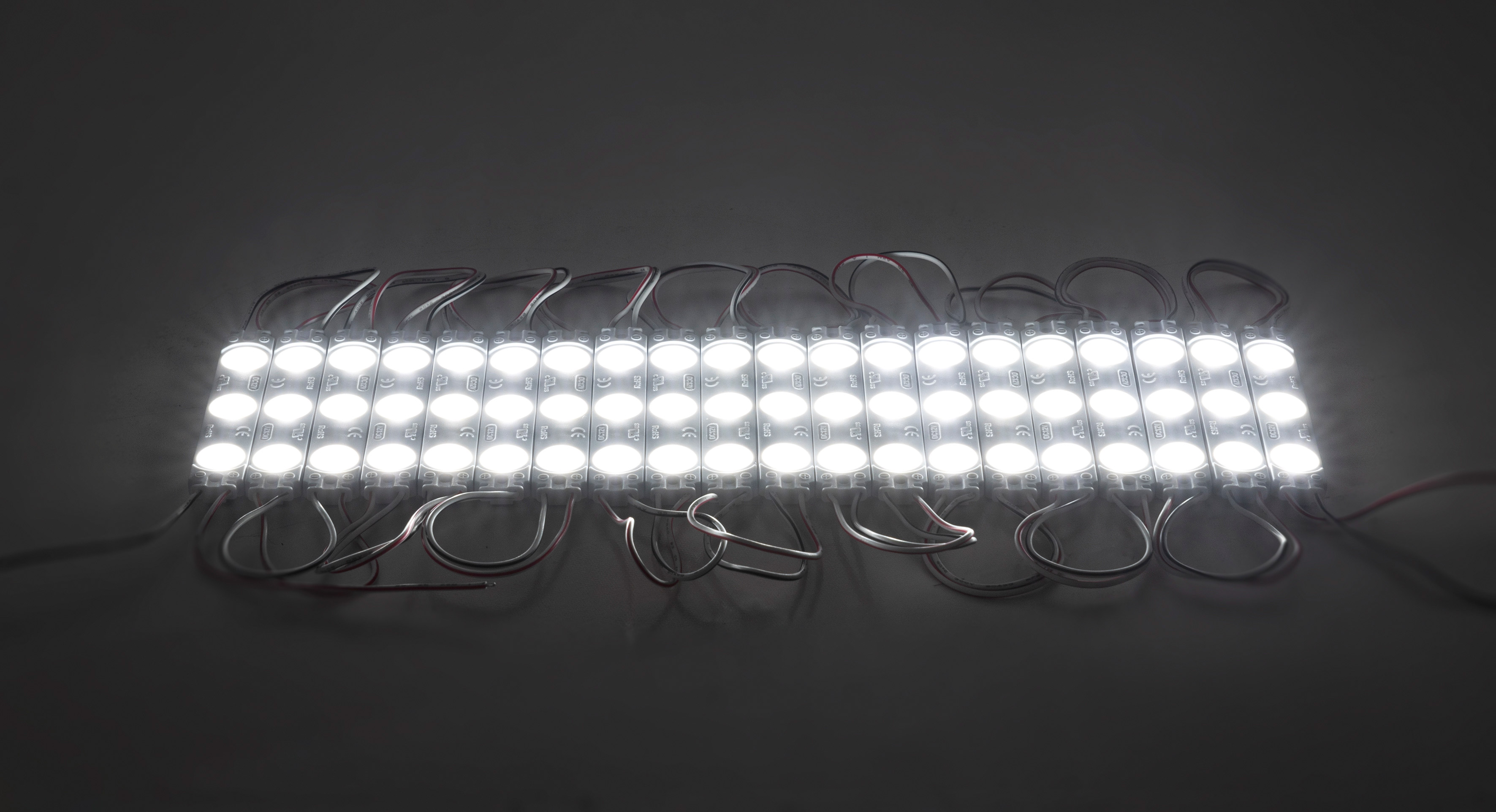

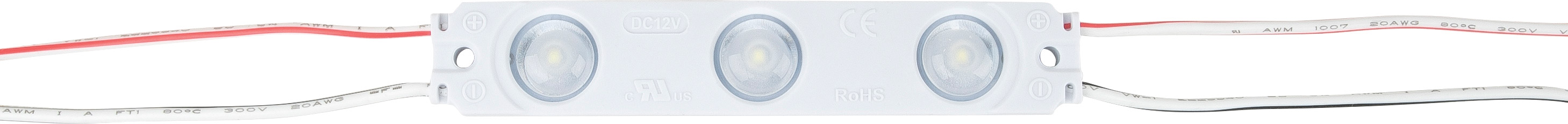

The Artecta Cayenne 145 is especially designed for use in signage solutions. They can be used in signs with a depth of 6 to 15 cm. Each module is 83 mm wide and contains 3 LEDs. The power of each module is 1.5 W and one string contains 20 modules. A single string consumes 30 W and can be powered by any 12 VDC power supply. The strings are daisy-chainable, meaning that multiple strings can be connected parallel to a single power supply.

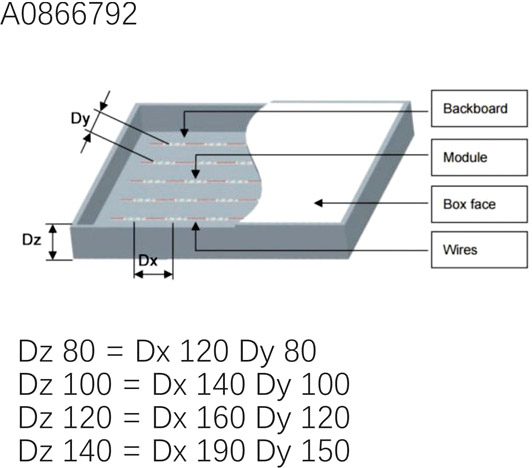

The ideal distance between modules are:
8 x 12 cm for 6 cm deep signs
10 x 14 cm for 8 cm deep signs
12 x 16 cm for 10 cm deep signs
19 x 15 cm for 15 cm deep signsTechnical data:

Light Source Type:	LED
Light Source Quantity/m:	6
LED Colour Type:	White
Lumen Total:	2900 lm
CCT:	10000 K
Power Supply:	12 VDC
Power Consumption:	30 W
Power/1 m:	10 W
Length (m):	0.083 m
Width (mm):	15 mm
IP Rating:	IP65
Energy Class:	T/B/A
