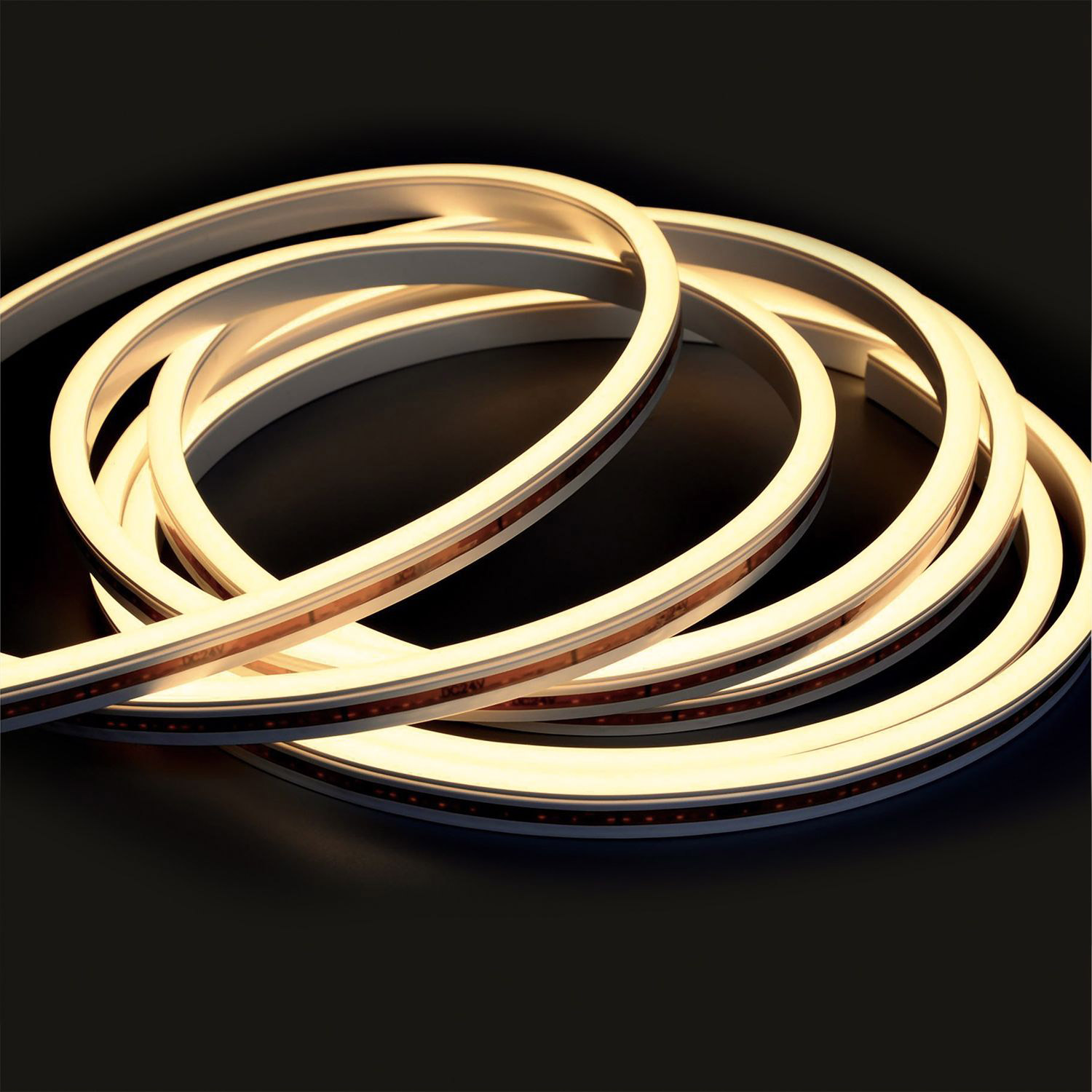

ISOLED LED NeonPRO930 flex stripe B08H12, 24V DC, 12W, IP67, 3000K, 5m roll, 140 LED/m
€119.13 *
Availability:
Currently not available
Currently not available
Item number: 111017305
EAN: 9009377156700
ISOLED LED NeonPRO930 flex stripe B08H12, 24V DC, 12W, IP67, 3000K, 5m roll, 140 LED/m incl.... more
All information about the product:
"ISOLED LED NeonPRO930 flex stripe B08H12, 24V DC, 12W, IP67, 3000K, 5m roll, 140 LED/m"
ISOLED LED NeonPRO930 flex stripe B08H12, 24V DC, 12W, IP67, 3000K, 5m roll, 140 LED/m incl.Technical data:
| Length: | 5000 mm |
| Width: | 8 mm |
| Height: | 12 mm |
| LED type: | SMD2835 |
| Nominal voltage: | 24 V |
| Nominal power: | 12 W |
| Rated power: | 12 W |
| Colour temperature: | 3000K |

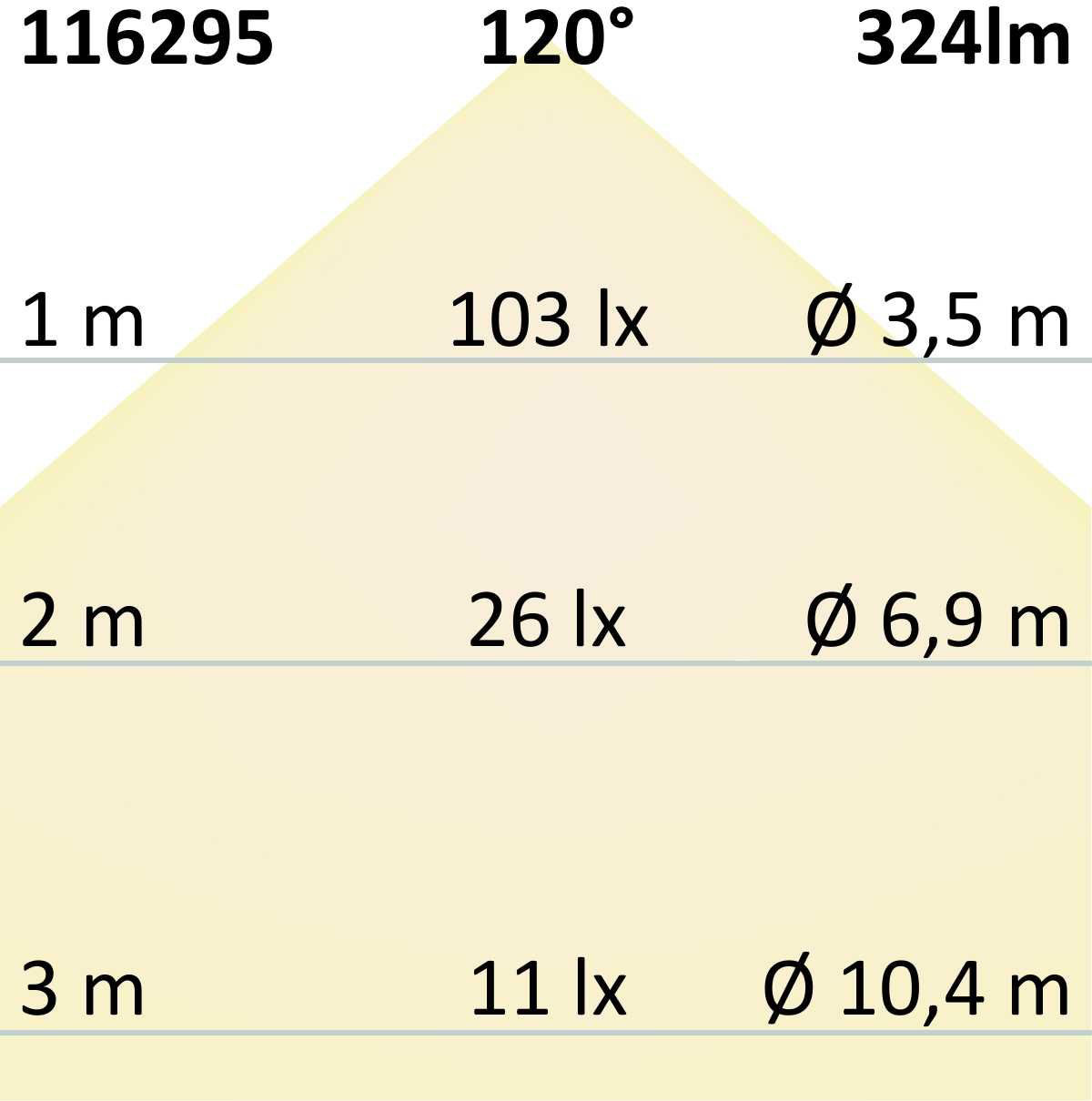

| Beam angle: | 120° |
| Luminous flux: | 324 lm |
| Light intensity: | 103 cd |
| Colour rendering: | 90 CRI |
| Lifetime: | 38000 h |
| Protection class: | IP67 |
| Energy efficiency class: | G |
| Material: | Silicone |
| Indoor and outdoor: | Yes |
| Incl. illuminant: | No |
| Special features: | Separation point: 50mm with 6 SMD each | Pitch (light point center-center): 8,33mm | 1 unit (roll) = 5m | max. flex stripe length per feed: 5m | length tolerance + thermal expansion: 1% | no cooling profile required | without adhesive tape! | silicone potting | SPECIAL FEATURE: 30cm 2-pole sheathed cable on both sides, white, connection on front side, with Mini Amp Male connector L814 | NOTE: flush end caps in width and height, can be bent horizontally (bending radius min. 60mm) | enclosed accessories: mounting bracket |
