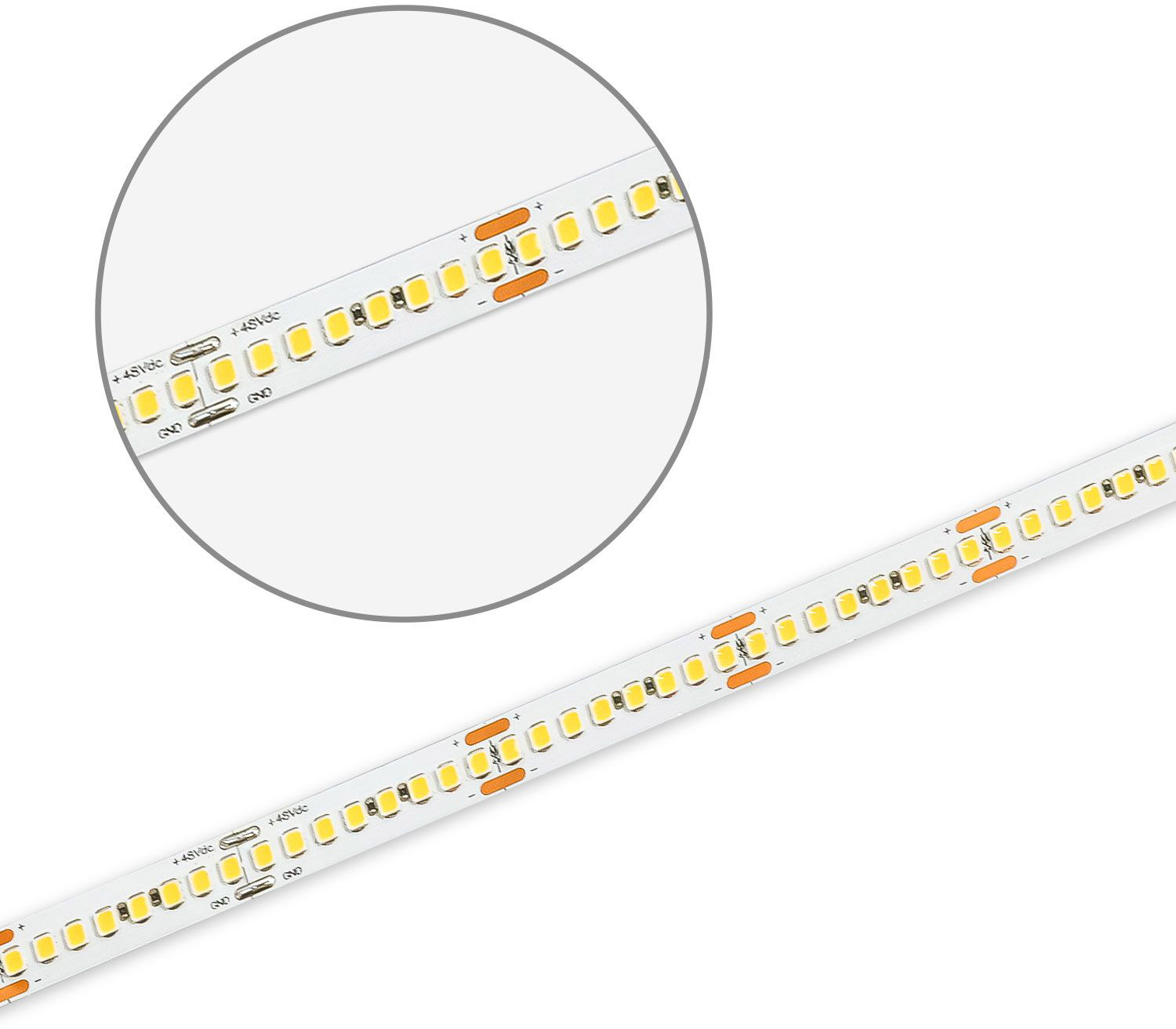

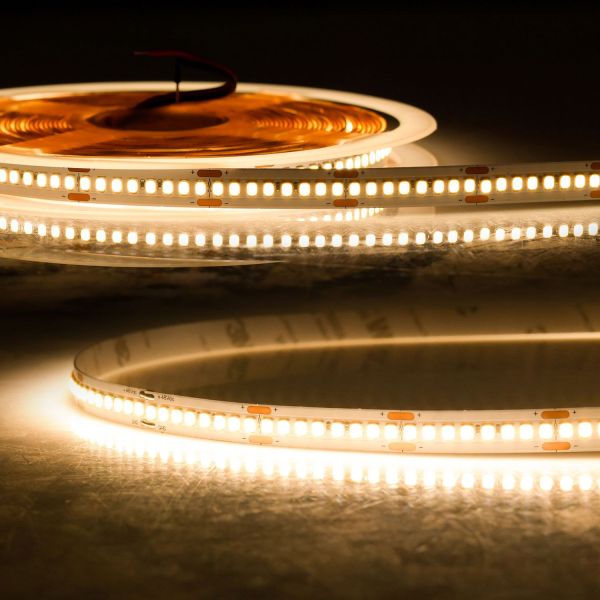

ISOLED LED HEQ927 flex stripe High Bright, 48V DC, 22W, IP20, 2700K, 140lm/W, 5m roll, 240 LED/m
€97.40 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111016660
EAN: 9009377155314
ISOLED LED HEQ927 flex stripe High Bright, 48V DC, 22W, IP20, 2700K, 140lm/W, 5m roll, 240 LED/m... more
All information about the product:
"ISOLED LED HEQ927 flex stripe High Bright, 48V DC, 22W, IP20, 2700K, 140lm/W, 5m roll, 240 LED/m"
ISOLED LED HEQ927 flex stripe High Bright, 48V DC, 22W, IP20, 2700K, 140lm/W, 5m roll, 240 LED/mTechnical data:
| Length: | 5000 mm |
| Width: | 10 mm |
| Height: | 2 mm |
| LED type: | SMD2835 |
| Nominal voltage: | 48 V |
| Nominal power: | 22 W |
| Rated power: | 22 W |
| Colour temperature: | 2700K |

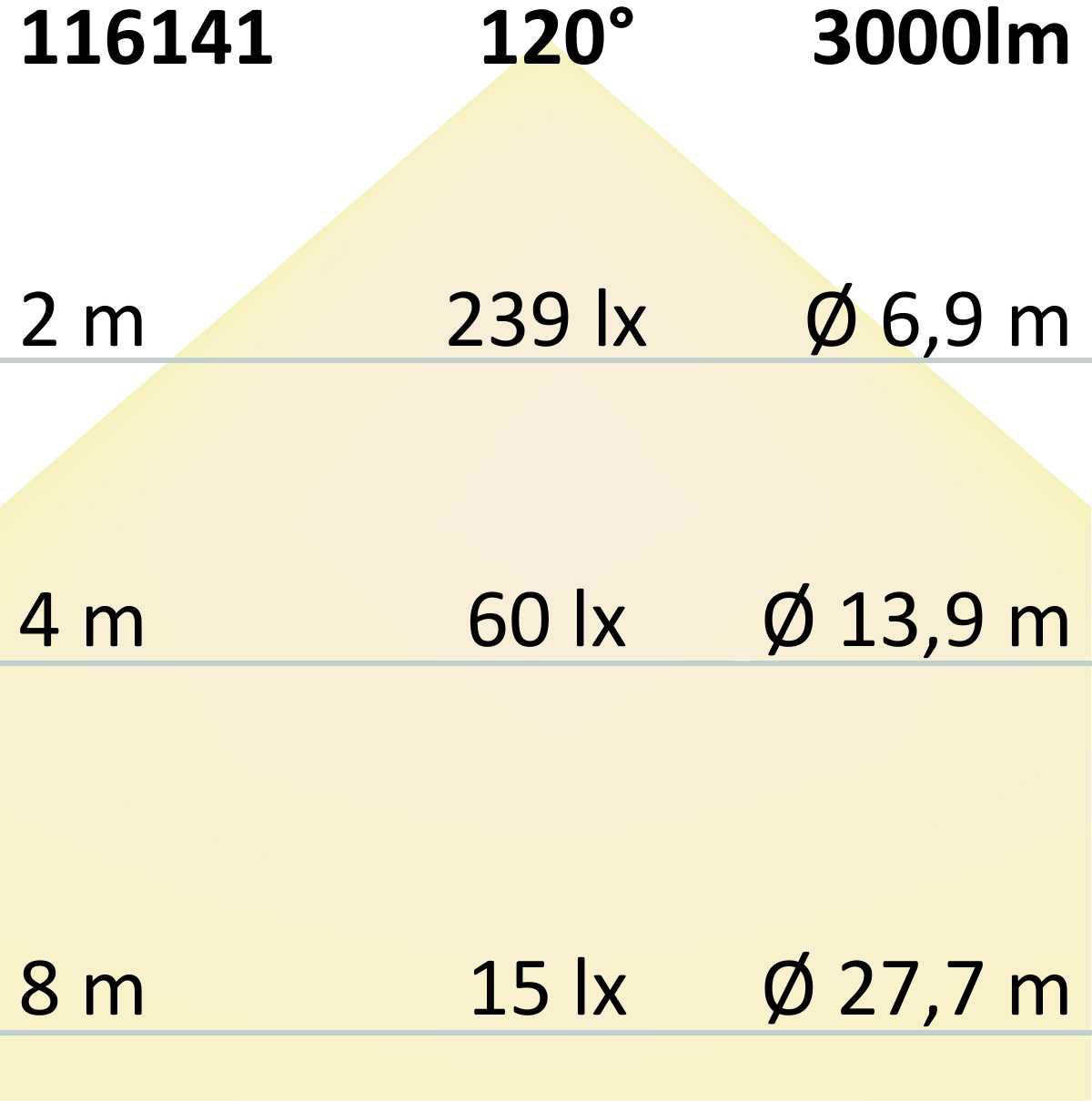

| Beam angle: | 120° |
| Luminous flux: | 3000 lm |
| Light intensity: | 955 cd |
| Colour rendering: | 90 CRI |
| Lifetime: | 53000 h |
| Protection class: | IP20 |
| Energy efficiency class: | D |
| Incl. illuminant: | No |
| Special features: | Separation point: 33,33mm with 8 SMD each | Pitch (light point center-center): 4.17mm | 1 unit (roll) = 5m | max. flex stripe length per feed: 10m | length tolerance + thermal expansion: 1% | required cooling mass min. 280 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease substrate before sticking! Do not peel off again! | Connectors of the group: C2-210 / K1-210 / K2-210 will fit | SPECIAL FEATURE: Connecting cable on both sides |
Further links
We will be happy to advise you!
You can reach us:
| Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Learn more about us!
Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads
"ISOLED LED HEQ927 flex stripe High Bright, 48V DC, 22W, IP20, 2700K, 140lm/W, 5m roll, 240 LED/m"
| Document type | File size | |
|
EPREL-Product data sheet | 0.24 MB |
