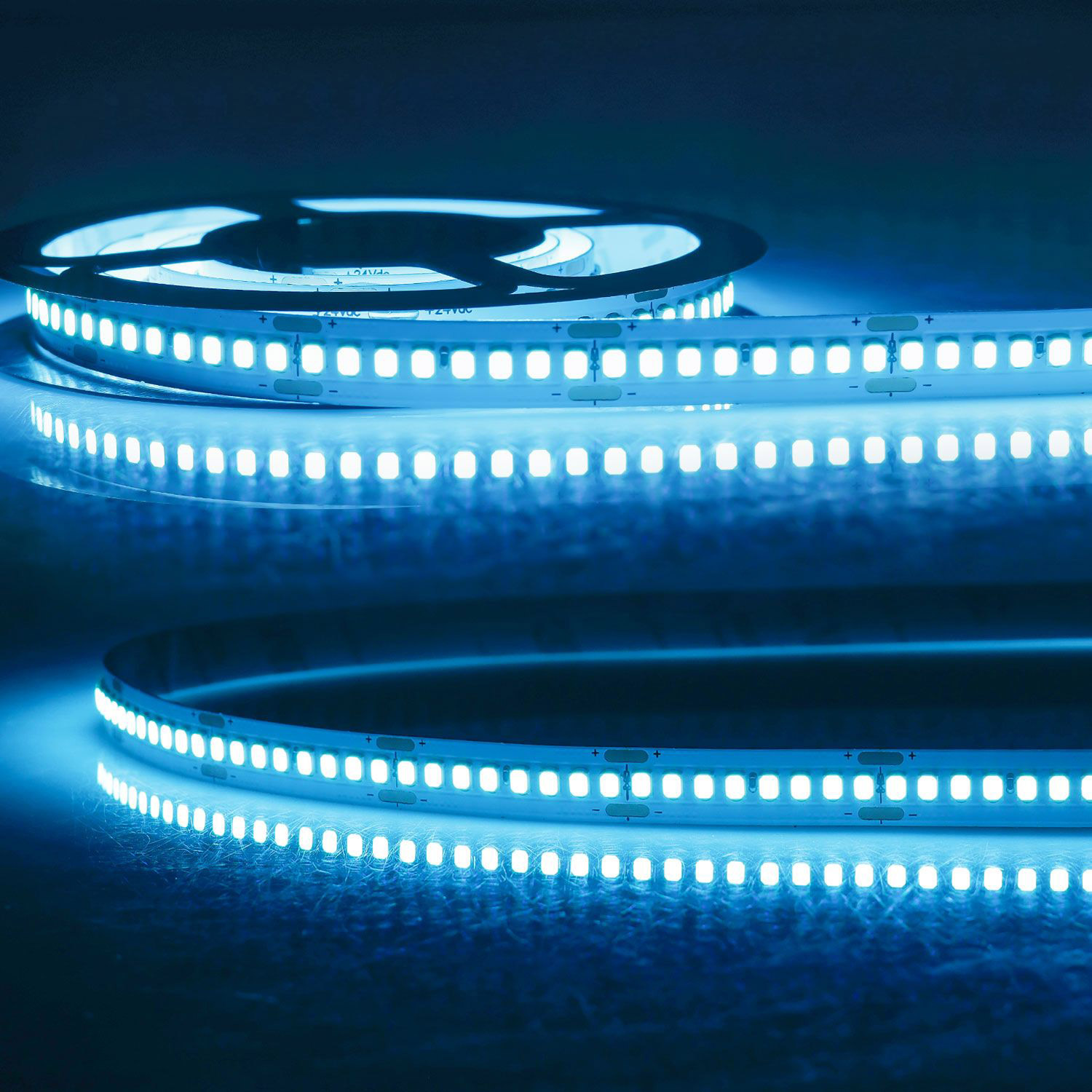

ISOLED LED HEQ Skyblue flex stripe, 24V DC, 22W, IP20, 5m roll, 240 LED/m
€85.92 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 111017380
EAN: 9009377156854
ISOLED LED HEQ Skyblue flex stripe, 24V DC, 22W, IP20, 5m roll, 240 LED/m Technical data:... more
All information about the product:
"ISOLED LED HEQ Skyblue flex stripe, 24V DC, 22W, IP20, 5m roll, 240 LED/m"
ISOLED LED HEQ Skyblue flex stripe, 24V DC, 22W, IP20, 5m roll, 240 LED/mTechnical data:
| Length: | 5000 mm |
| Width: | 10 mm |
| Height: | 2 mm |
| Nominal voltage: | 24 V |
| Nominal power: | 22 W |
| Beam angle: | 120° |
| Luminous flux: | 2200 lm |
| Colour rendering: | 80 CRI |
| Lifetime: | 53000 h |
| Protection class: | IP20 |
| Energy efficiency class: | F |
| Incl. illuminant: | No |

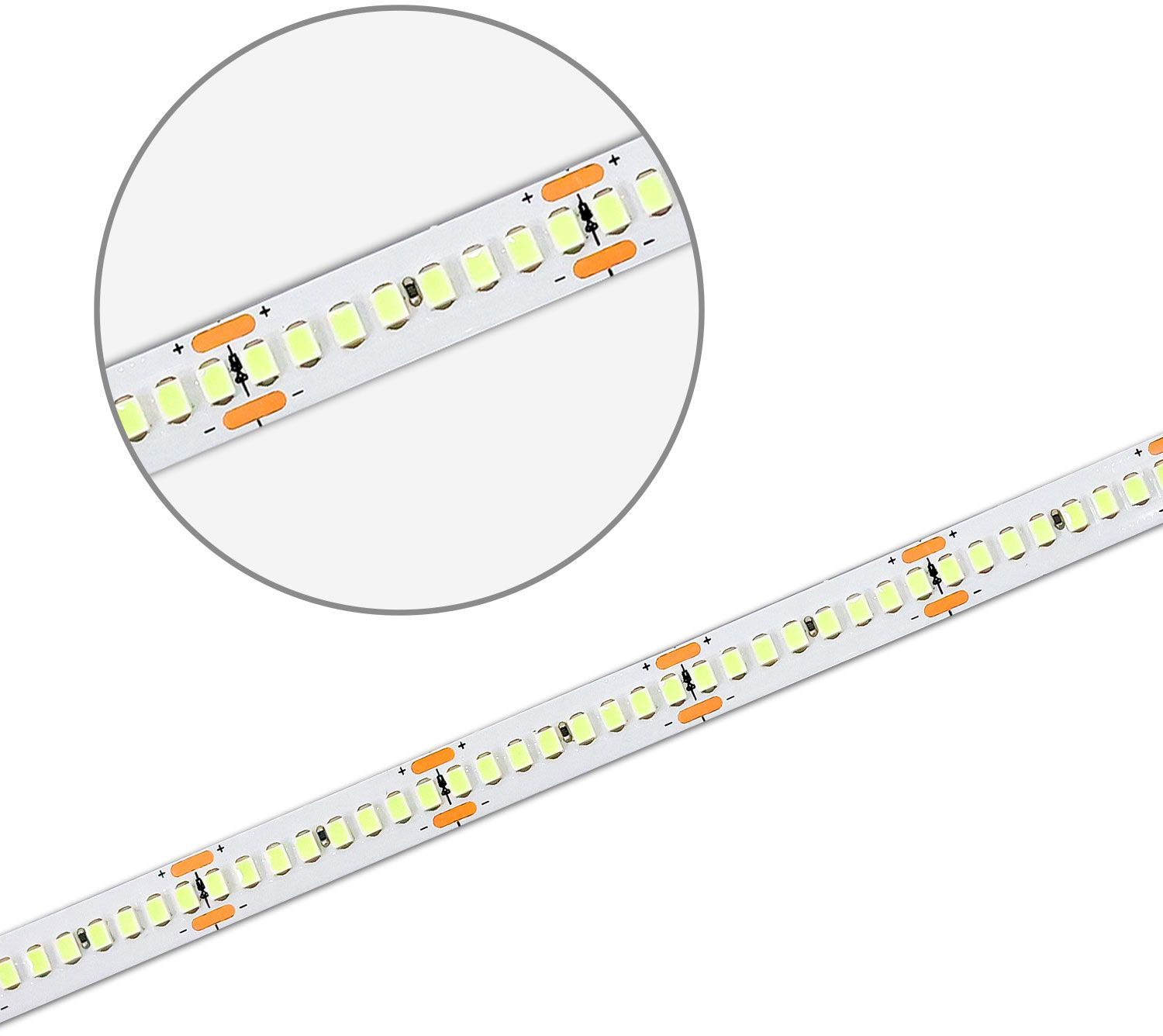

| Special features: | Separation point: 33,33mm with 8 SMD each | Pitch (light point center-center): 4.17mm | 1 unit (roll) = 5m | max. flex stripe length per feed: 5m | length tolerance + thermal expansion: 1% | required cooling mass min. 140 gr/m | incl. 3M 300LSE adhesive tape | Clean and degrease substrate before sticking! Do not peel off again! | Connectors of the group: C2-210 / K1-210 / K2-210 are suitable| SPECIAL FEATURE: Connecting cable on both sides |
