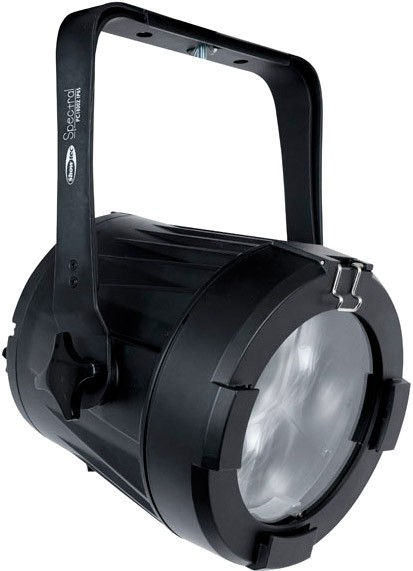

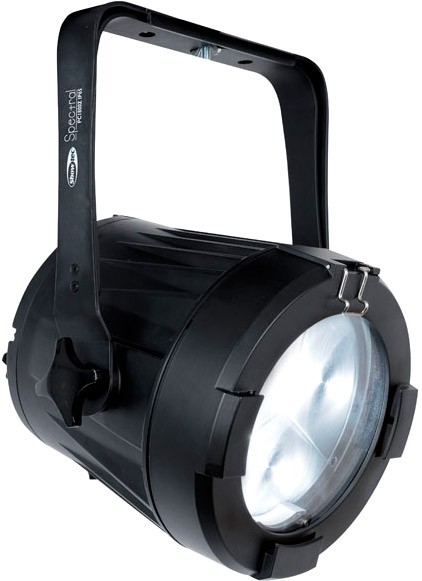

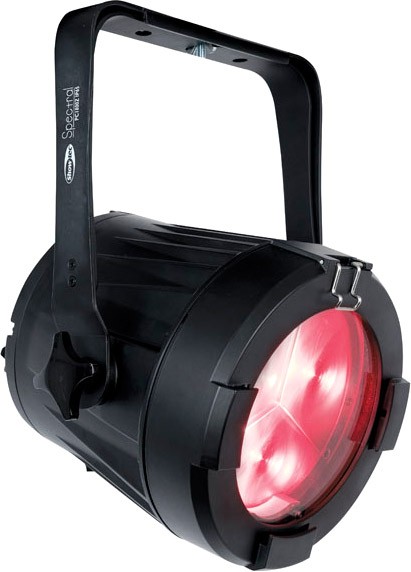

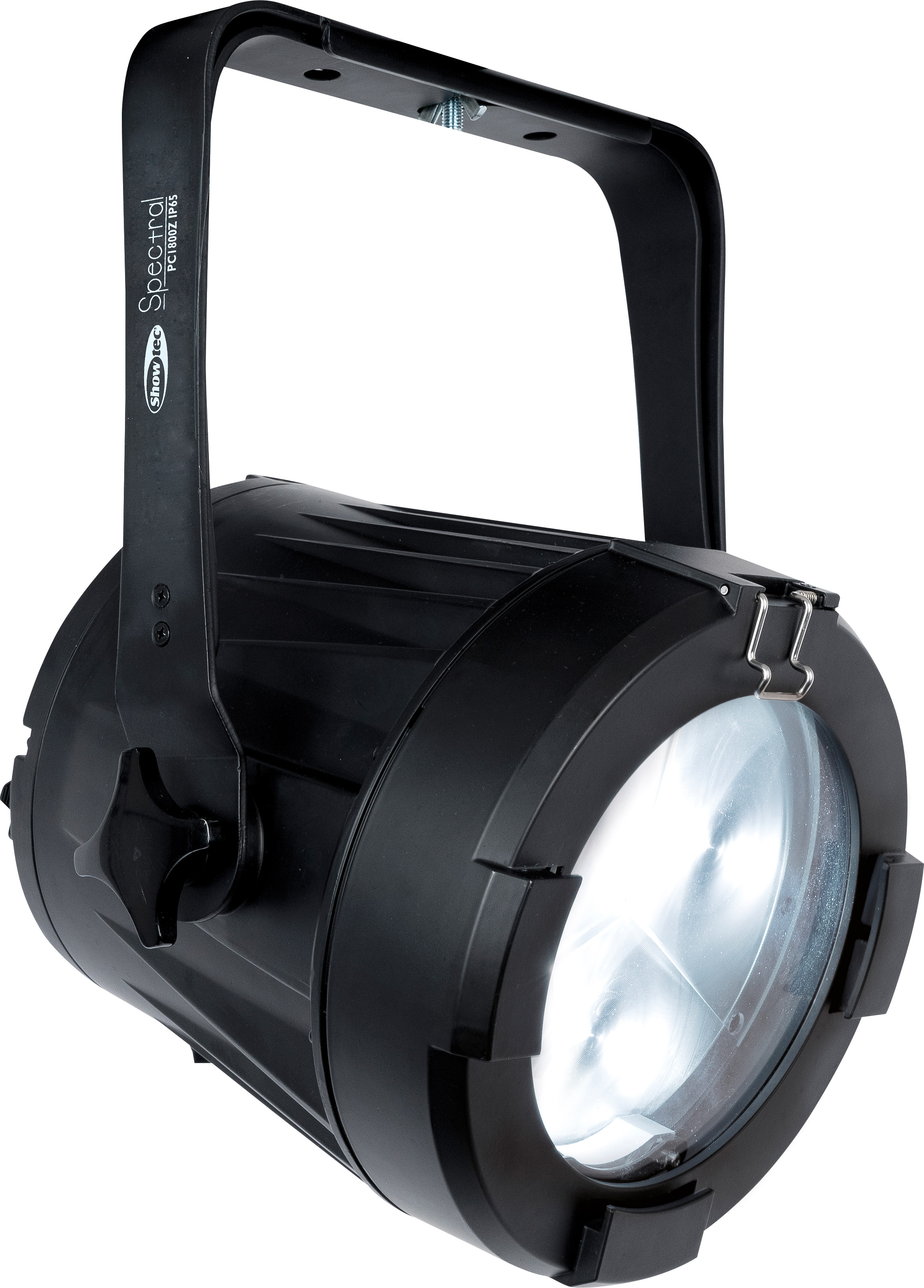

Showtec Spectral PC 1800Z IP65 180 W PC RGBW LED Array Spot

The Showtec Spectral series offers reliable and durable spots that meet the high quality and functionalities required by festivals and fixed venues. All Spectral spots offer high output, accurate colour temperature, silent operation and a sturdy, compact design. The Spectral fixtures differ greatly in properties, from a Warm White LED Spot with a fixed beam angle to an RGBW LED Spot with a wide motorised beam angle and 2-section control. That is why you will probably see them at every festival!

Some Spectral luminaires are intended for indoor locations while other models are built with an IP65 rating, suitable for outdoor use. Thanks to a dimmer and strobe function, most Spectral luminaires are ideal for colour-mixing on stage, from punchy to white and pastel colours. A suitable solution can be devised for every setting.

Each projector offers multiple control options and is equipped with optional accessories to expand and improve functionalities. Contact us now for free advice and receive an offer you cannot refuse or check out our product pages for more information.

The Showtec Spectral PC 1800Z is a 180 watt RGBW LED Array spot to wash Parcan, with a wide 4.5°–45° motorised zoom range, suitable for in- and outdoor applications. Each function, including 0–100 % dimmer, 0–25 Hz strobe and colour mixing engine, is controllable via DMX and Master/Slave in Manual and Auto run mode. The compact and lightweight 9.1 kg design with IP65 rating and -10~40 °C operating temperature range makes the Spectral PC 1800Z fit for almost any environment.Technical data:

Light Source Type:	LED
Light Source Quantity:	1
Light Source Power:	180 W
LED Colour Type:	RGBW
Refresh Rate (min):	600 Hz
Refresh Rate (max):	25000 kHz
Lumen Total:	2067 lm
Zoom Minimum:	4 °
Zoom Maximum:	45 °
Control Mode:	Auto / Built-in Program / DMX / Manual
DMX Channels:	9 / 12 / 17
Protocols:	DMX / RDM
Power Supply:	100-240 VAC 50-60 Hz
Power Consumption:	185 W

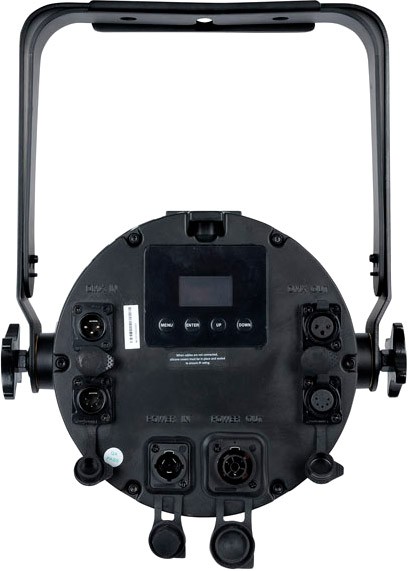

Power Connector in:	powerCON TRUE1 In (Male)
Power Connector out:	powerCON TRUE1 Out (Female)
DMX Connector:	Dedicated 3P IP65 In/Out / Dedicated 5P IP65 In/Out
Length (mm):	265 mm
Width (mm):	240 mm
Height (mm):	405 mm
Weight:	9.3 kg
IP Rating:	IP65
Housing:	Aluminum die-cast
Colour:	Black
Cooling:	Convection
