ADJ PAR ZP120 RGBW

€365.00 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Currently not available
Currently not available
Item number: 250802320
EAN: 0818651025439
MPN: 1226100358
The Par ZP120 RGBW is a modern LED twist to the traditional halogen Par Can. It has a silver... more
All information about the product:
"ADJ PAR ZP120 RGBW"

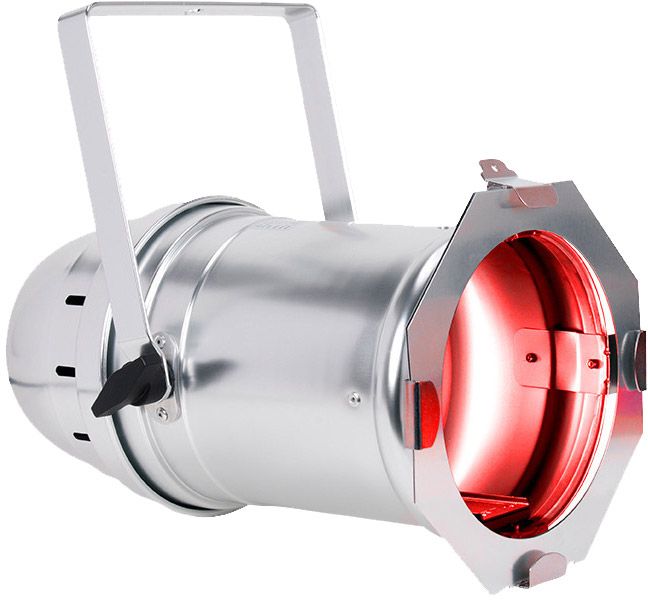

The Par ZP120 RGBW is a modern LED twist to the traditional halogen Par Can. It has a silver polish exterior housing and is powered by a potent 115W quad C.O.B. LED (Chip On Board) LED with red, green, blue & white colors. Its output is comparable to a 1000W halogen sealed beam Par.  It is equipped with 5 different beam angle options that may be changed by hand. Locking Power In/Out allows for the fixture to be daisy chained, while 5-pin DMX control offers a variable strobe rate and 5 different dimming curve options.
The Par ZP120 RGBW allows lighting and stage designers the look of the traditional stage par with the technological conveniences of modern day lighting. The advantages include low power draw, fixture and performers won’t get hot on stage, DMX control of dimming and strobe. There are no dimmer controllers need. The fixture comes with a gel frame in which diffusion filters may be inserted to further change the beam angle.
Technical data:
Source
  • Source: RGBW COB-LED
  • Individual LED wattage : 115W
  • Average LED lifetime: approx. 50,000hrs
  • LUX @5m: 3342 (7?); 1749 (11?); 982 (16?); 617 (20?); 446 (25?)
Optics
  • Selectable Beam angle from VNSP to WFL: 7, 11, 16, 20 0r 25-degree (manual adjustment)
Control
  • 6 DMX channel modes: 4, 5, 6, 7, 8 & 9 channels
  • RDM compatible (Remote Device Management)
  • 5 Dim Curves: Standard/Stage/TV/Architectural/Theatre
  • Adjustable Gamme Brightness
  • Strobe & pulse effects
  • LCD display with 4-button control
Color
  • RGBW Color Mixing
  • 32 Color Macros
Construction
  • Polished Aluminium housing

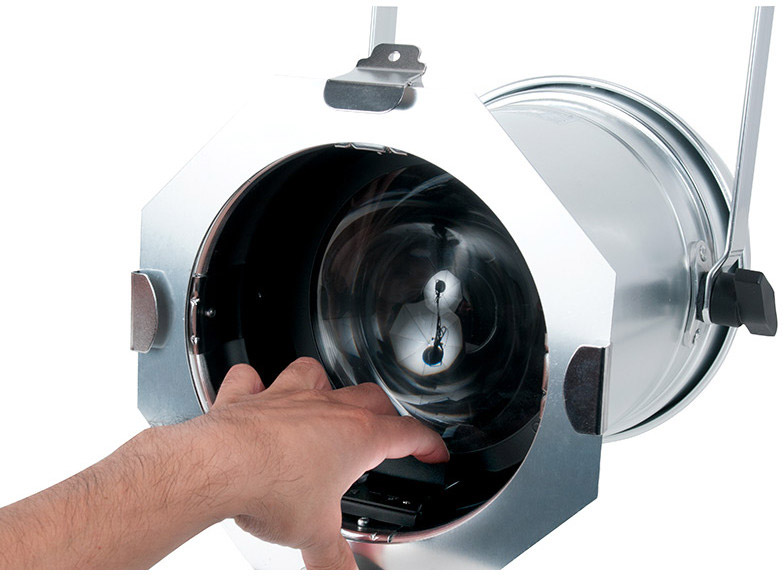

  • Adjustable latch to manually change beam angle
  • Includes gel frame for optional diffusion filters
  • Yoke included
Electrical
  • Multi-voltage operation: 100-240V, 50/60Hz
  • Maximum power draw: 115W

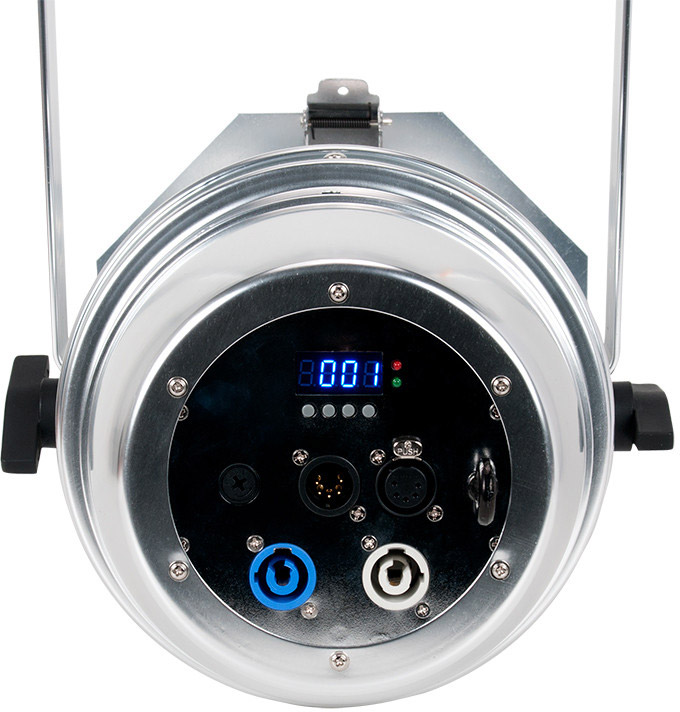

Connections
  • Data In/Out: Locking 5-pin DMX
  • Power In/Out: Locking Power
Dimensions & Weight
  • Dimensions (LxWxH): 491 x 272 x 273mm
  • Weight: 3,9 kg.
