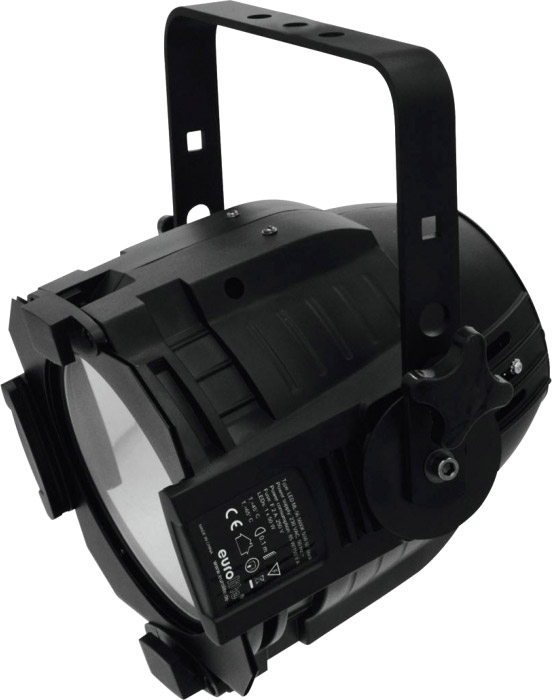

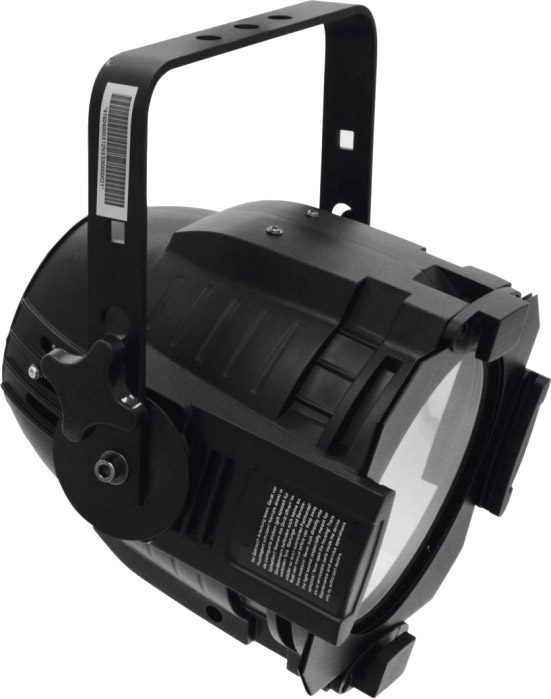

EUROLITE LED ML-56 COB UV 80W Floor bk

This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 120024115
EAN: 4026397531626
DMX controlled UV floodlight with 80 W COB LED Wide range of UV effects possible Functions:... more
All information about the product:
"EUROLITE LED ML-56 COB UV 80W Floor bk"

DMX controlled UV floodlight with 80 W COB LED

  • Wide range of UV effects possible
  • Functions: dimmer, strobe effect, Master/Slave operation, different dimmer curves/dimmer speed (step response)
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Strobe effect with adjustable speed
  • Beam angle approximately 35°

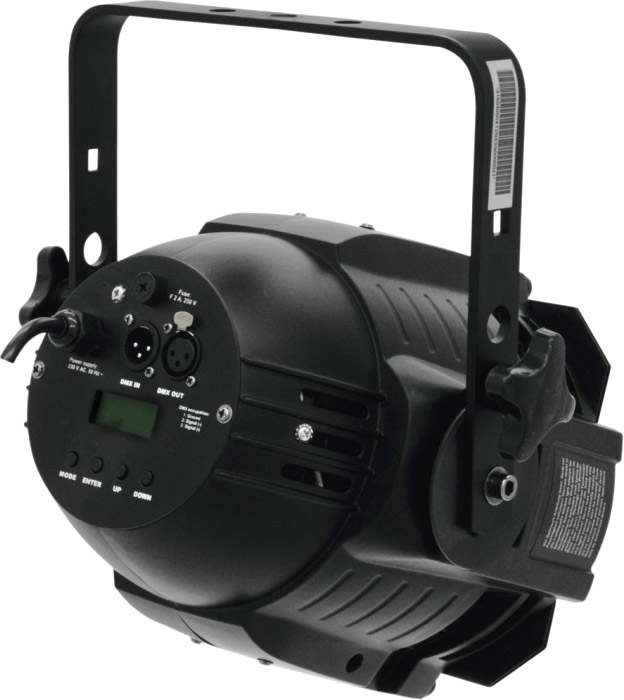

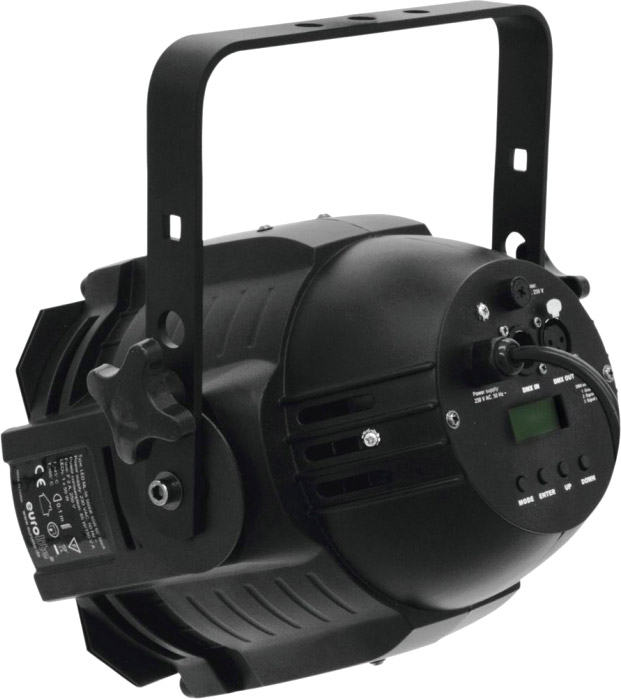

  • Comfortable addressing and setting via Control Board with LED display and four operating buttons
  • Ideal as floor spot via additional bracket
  • Locking possibility at the brackets
  • Ideal for theatres, large stages as pre-stage spot and mobile use
  • Optional color filter frame and barndoors available
  • Ready for connection with power cord and safety plug
  • Switch-mode power supply for operation between 100 and 240 Volts
  • Available in silver or in black

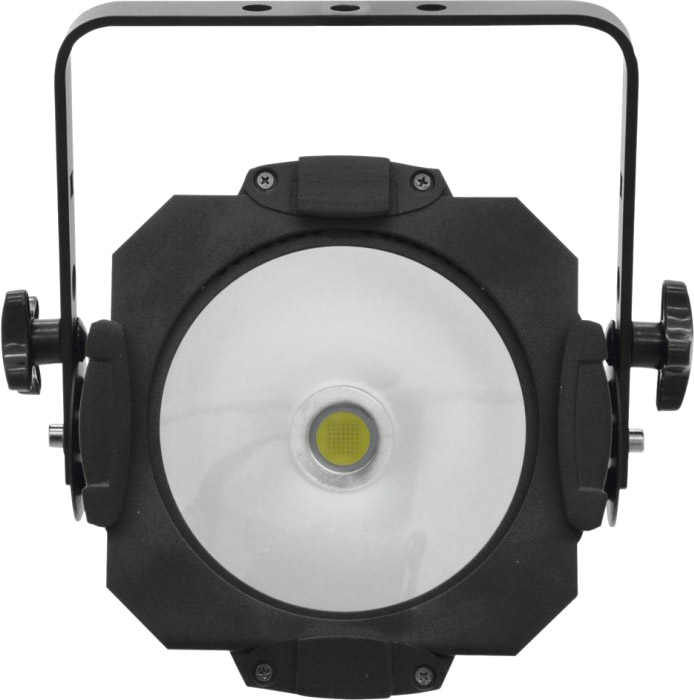

  • LED: 1 x COB (chip-on-board) 80 W UV
  • Can be operated in 1; 3 CH mode
  • Controlling by Stand-alone; DMX
  • Is in Light J Software; EUROLITE LED PC-Control 512 software already preprogrammed
  • Flicker-free projection
  • Effect: Strobe effect; UV effect


Power supply:100-240 V AC, 50/60 Hz
Power consumption:80 W
IP classification:IP20
Power connection:Fixed Power supply cord with safety plug
Lamp type:LED lamp
LED:1 x COB (chip-on-board) 80 W UV
Flash rate:0 - 17 Hz
DMX channels:1; 3
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Control:Stand-alone; DMX; Light J Software; EUROLITE LED PC-Control 512 software
Beam angle:35°
Beam angle (1/2 peak):35°
Beam angle (1/10 peak):79°
Housing color:Black
Material:Metal
Dimensions:Width: 29 cm
Depth: 25,5 cm
Height: 32 cm
Weight:3,20 kg
Legal specifications
Ecodesign regulation:yes
Special product:Not designed for household room illumination
intended use:show effect lighting
