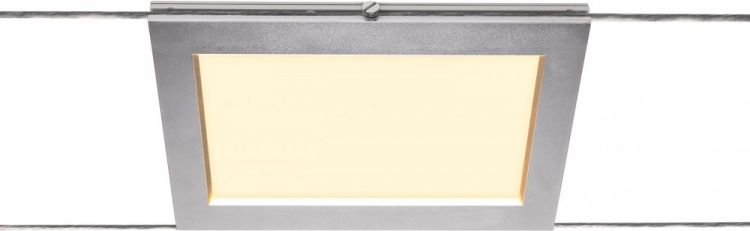

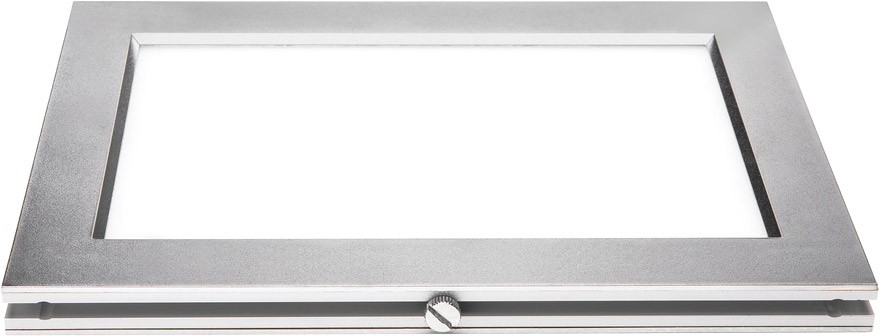

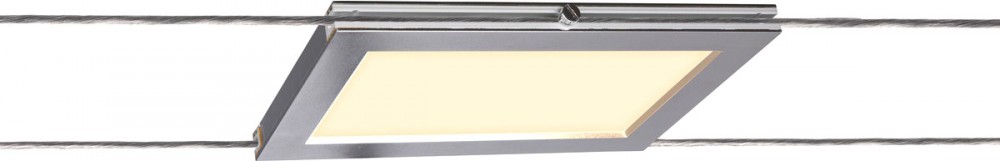

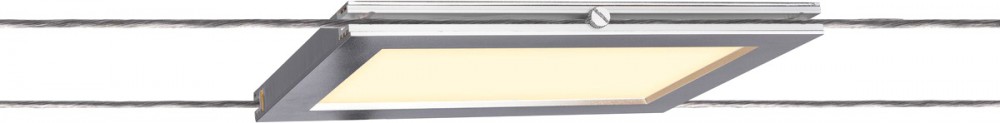

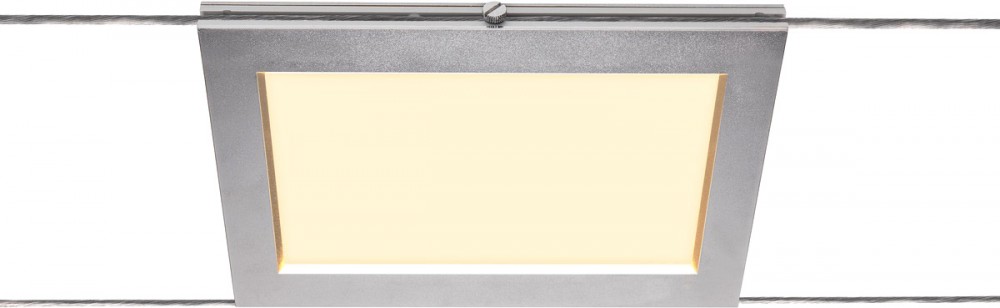

SLV PLYTTA rectangular, cable luminaire for the TENSEO low voltage cable system, 2700K, chrome
€48.30 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 110046265
EAN: 4024163230629
The PLYTTA LED spotlight for the TENSEO low-voltage cable system. The luminaire impresses with... more
All information about the product:
"SLV PLYTTA rectangular, cable luminaire for the TENSEO low voltage cable system, 2700K, chrome"
The PLYTTA LED spotlight for the TENSEO low-voltage cable system. The luminaire impresses with its slim design and is therefore ideal for modern lighting concepts. The luminaire is made from aluminium and equipped with a Premium LED module.Technical data:
| Product name: | PLYTTA |
| Colour: | chrome |
| Material: | plastic |
| electrical power: | 9.8 W |
| Lumen/wattage: | 76.53 lm/W |
| Luminous Flux: | 750 lm |
| Colour temperature: | 2700 Kelvin |
| Half beam angle: | 120 ° |
| CRI: | 90 |
| Protection category: | III |
| Assembly details: | Ceiling with Acc. |
| Shape: | square |

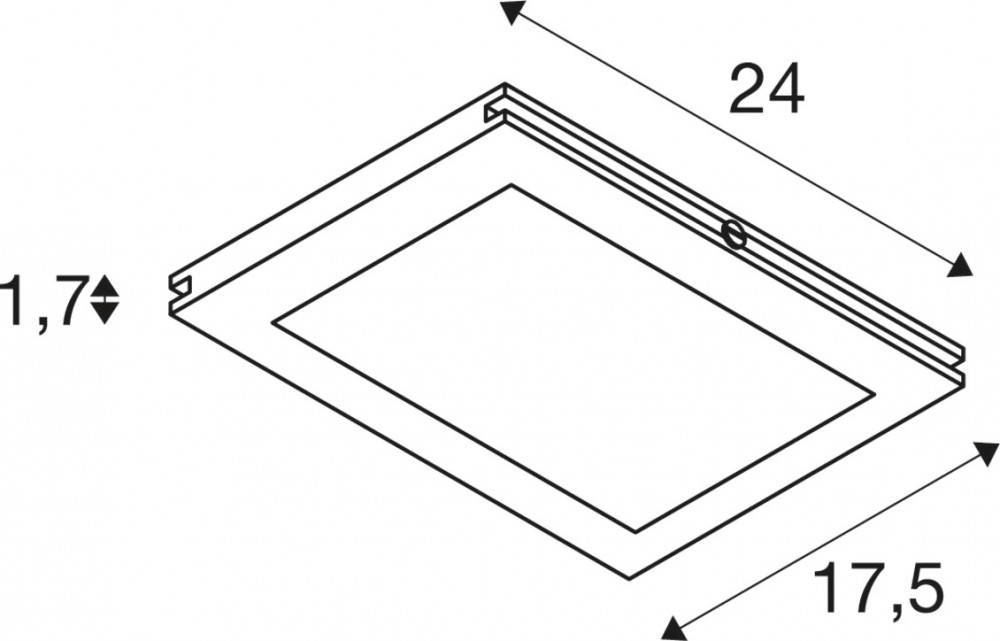

| Length: | 24 cm |
| Width: | 17.5 cm |
| Height: | 1.7 cm |
| Light outlet: | direct |
| Luminous intensity distribution: | rotational symmetric |
| Colour consistency: | 3 SDCM |
| Service life: | 30000 h |
| Primary nominal voltage: | 12V ~50Hz |
| Ambient temperature: | -25 - 40 °C |
| Net weight: | 0.43 kg |
| Rated value luminous efficacy: | 76.53 lm/W |
| Weighted consumption: | 9.8 kWh/1.000h |
| LXXBXX data: | L70B50 |
Further links
We will be happy to advise you!
You can reach us:
| Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Learn more about us!
Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads
"SLV PLYTTA rectangular, cable luminaire for the TENSEO low voltage cable system, 2700K, chrome"
| Document type | File size | |
|
Operating instructions | 0.31 MB |
|
|
Operating instructions | 0.34 MB |
|
|
Data sheet | 0.15 MB |
|
|
Data sheet | 0.14 MB |
|
|
Certificate | 0.31 MB |
|
|
Certificate | 0.31 MB |
|
|
EPREL-Product data sheet | 0.22 MB |
