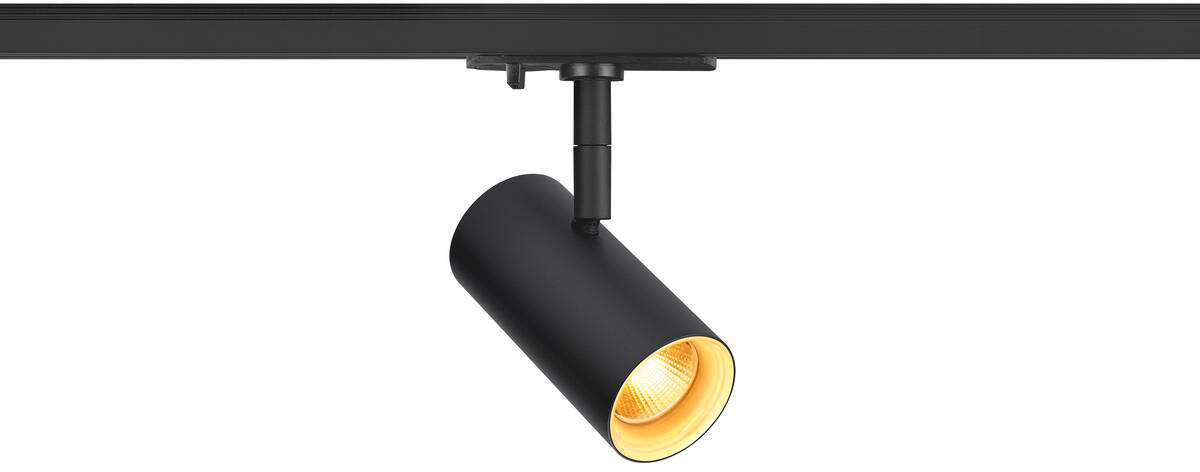

SLV NOBLO® SPOT, 1~ spot, round, 2700K, 6W, trailing-edge phase, 32°, black
€48.30 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 110060150
EAN: 4024163281874
The rotating and pivoting NOBLO® SPOT shines across the board: quickly and easily mounted on the... more
All information about the product:
"SLV NOBLO® SPOT, 1~ spot, round, 2700K, 6W, trailing-edge phase, 32°, black"
The rotating and pivoting NOBLO® SPOT shines across the board: quickly and easily mounted on the single-phase high-voltage track system, the new generation impresses with an improved colour reproduction index CRI>90, a lumen output of up to 126 lm/W and an increased service life of up to 50,000 hours. Added to this is the high-quality light that creates a particularly cosy atmosphere in living areas, hotels and restaurants. Ideal for modern lighting concepts, made of high-quality aluminium, quickly installed and available in colour temperatures of 2700K and 3000K. It's clear: with the new NOBLO® SPOTS, you are opting for a unique lighting experience.Technical data:
Product name: | NOBLO SPOT |
Colour: | black |
Material: | Aluminium |
electrical power: | 6 W |
Lumen/wattage: | 123 lm/W |
Luminous Flux: | 740 lm |
Colour temperature: | 2700 Kelvin |
Half beam angle: | 32 ° |
CRI: | 90 |
Dimmable: | Yes |
Dimming technology: | trailing edge |
Protection category: | I |
IP Code: | IP 20 |
Assembly: | Surface |
Assembly details: | Ceiling |
Shape: | round |

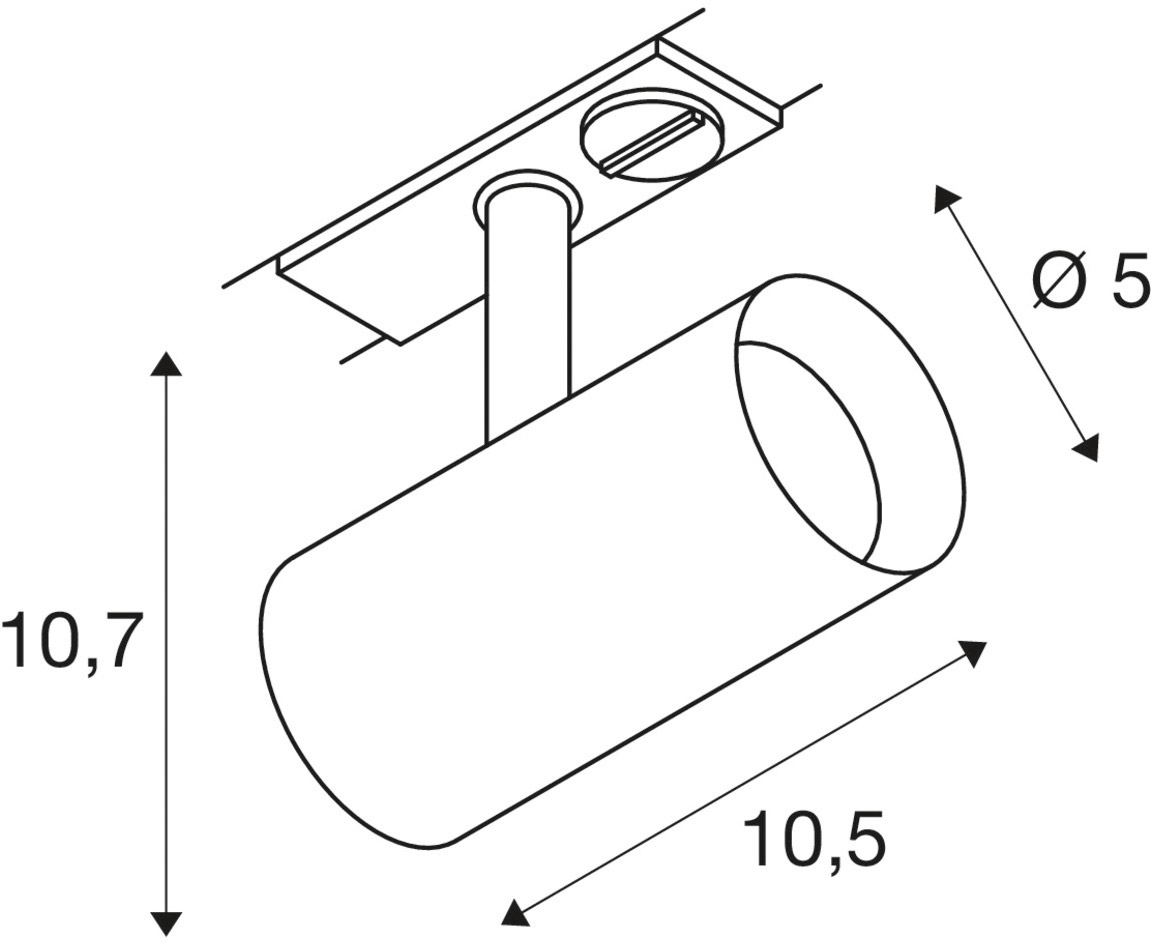

Length: | 10.5 cm |
Height: | 10.7 cm |
Diameter: | 5 cm |
Rotating or tilting: | Rotary bar and tiltable |
Vertical tilting range: | 90 ° |
Horizontal rotation range: | 355 ° |
Primary nominal voltage: | 220-240V ~50/60Hz |
Secondary power / secondary voltage: | 150mA |
Ambient temperature: | -20 - 40 °C |
Energy efficiency class: | E |
Net weight: | 0.24 kg |
Rated value luminous efficacy: | 123 lm/W |
Weighted consumption: | 6 kWh/1.000h |
LXXBXX data: | L80B10 |
Service life: | 50000 h |
Number of lights on LS B16A: | 128 St. |
Number of lights on LS C16A: | 160 St. |
Inrush current level: | 3.5 A |
Inrush current duration: | 120 µs |
Stroboscopic visibility measure (SVM): | 0.4 |
Risk group: | 1 |
