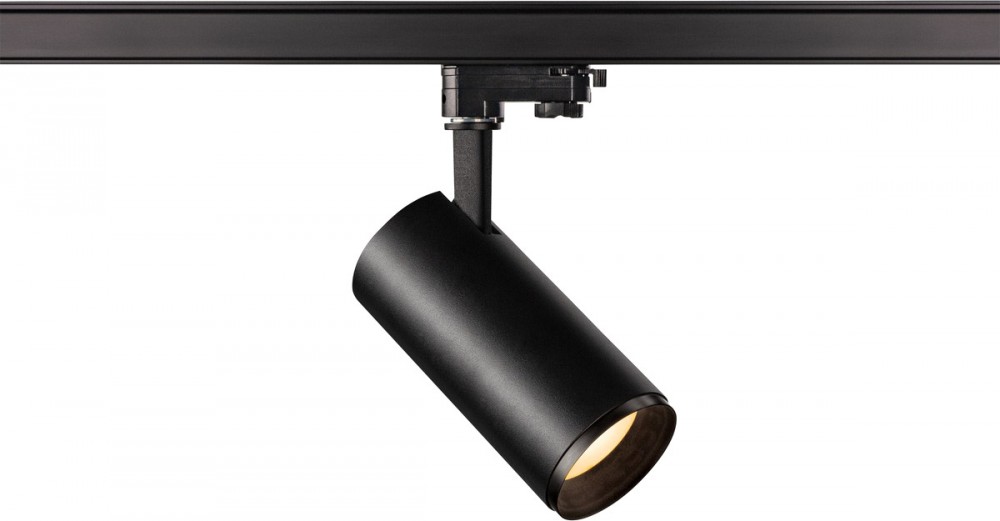

SLV 3~ NUMINOS® PHASE M, 3 phase system light black/black 2700K 24°
€100.06 *
Availability:
Currently not available.
Expected to be available again in 4 days.
Expected to be available again in 4 days.
Currently not available
Item number: 110049075
EAN: 4024163243209
Design, technology and function in perfection: NUMINOS is the light system from SLV that combines... more
All information about the product:
"SLV 3~ NUMINOS® PHASE M, 3 phase system light black/black 2700K 24°"
Design, technology and function in perfection: NUMINOS is the light system from SLV that combines everything. The diverse downlights and spotlights make a thousand lighting design options possible. Like with the 3~ NUMINOS® PHASE M 3-phase system light LED, which impresses with its high-quality workmanship and light. In this way, you can create high-quality illumination of larger areas or use the spotlight for selective lighting. The recessed ceiling light convinces with a power consumption of 20.1 watts, luminous flux of 1925 lumens, colour temperature of 2700 Kelvin and a colour reproduction index of 90. Installation is then done in no time at all. When do you choose NUMINOS ® from SLV?Technical data:
Product name: | NUMINOS M |
Colour: | black |
Material: | Aluminium |
electrical power: | 20.1 W |
Lumen/wattage: | 96.25 lm/W |
Luminous Flux: | 1925 lm |
Colour temperature: | 2700 Kelvin |
Half beam angle: | 24 ° |
CRI: | 90 |
UGR =: | 16 |
Dimmable: | Yes |
Dimming technology: | trailing edge |
Protection category: | I |
Assembly details: | Track Ceiling |
Shape: | cylindrical |

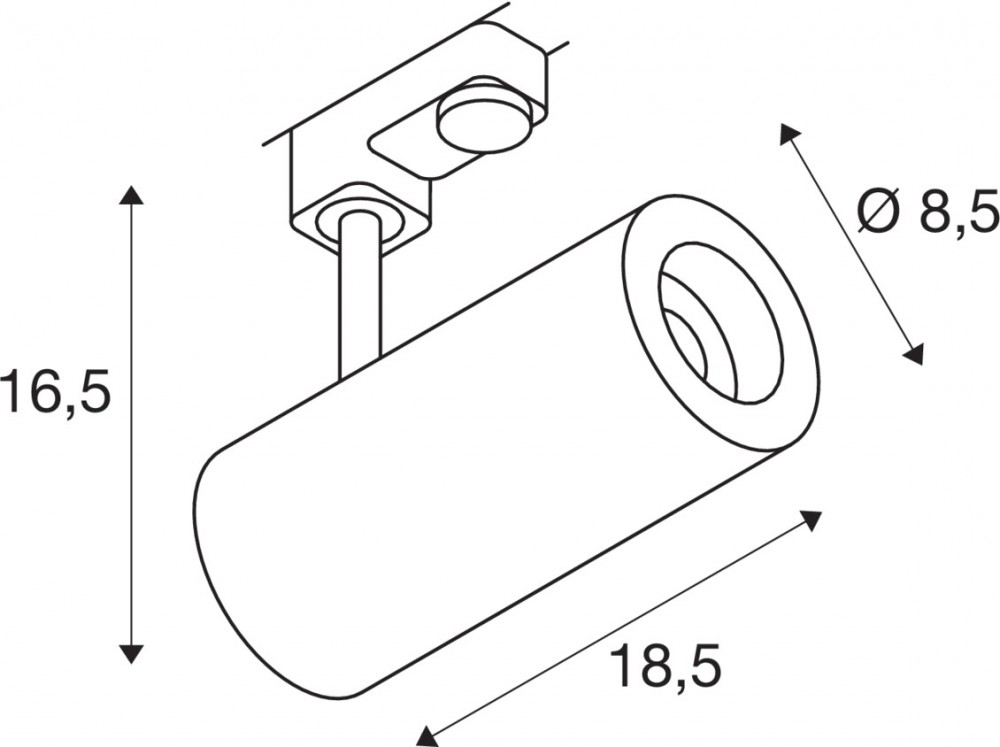

Length: | 18.5 cm |
Height: | 16.5 cm |
Diameter: | 8.5 cm |
Rotating or tilting: | rotary Bar and tiltable |
Vertical tilting range: | 90 ° |
Horizontal rotation range: | 350 ° |
Light outlet: | direct |
Luminous intensity distribution: | rotational symmetric |
Colour consistency: | 3 SDCM |
Service life: | 50000 h |
Primary nominal voltage: | 220-240V ~50/60Hz |
Secondary power / secondary voltage: | 500mA |
Net weight: | 0.77 kg |
Rated value luminous efficacy: | 96.25 lm/W |
Weighted consumption: | 20 kWh/1.000h |
LXXBXX data: | L80B50 |
Half beam angle: | 24 ° |
