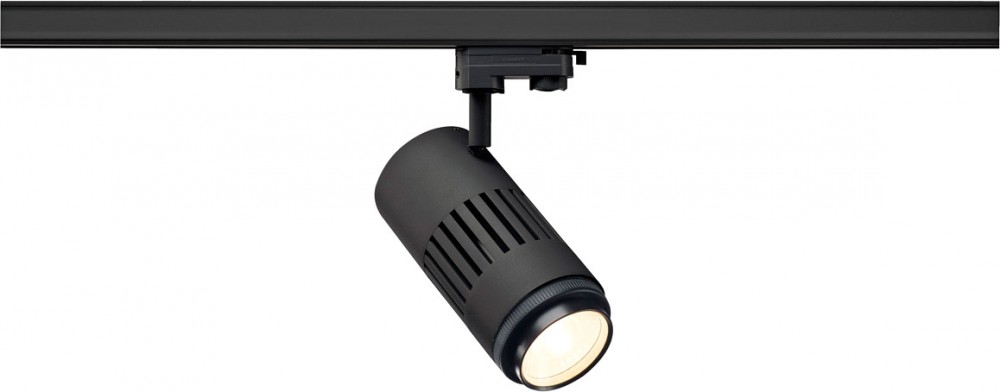

SLV STRUCTEC, zooming lens spot for 3-circuit high-voltage track, LED, 3000K, black, 20-60°
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 110039050
EAN: 4024163189484
The STRUCTEC is available in several colour versions and beam angles with a suitable adapter for... more
All information about the product:
"SLV STRUCTEC, zooming lens spot for 3-circuit high-voltage track, LED, 3000K, black, 20-60°"
The STRUCTEC is available in several colour versions and beam angles with a suitable adapter for the 3-circuit 240V track system. It has a high-performance COB LED module fitted, which, thanks to a CRI of >90, is especially suitable for excellent colour reproduction. The zooming lens for being able to adjust the beam angle between 25° and 60° is a special feature. The spot is therefore a modern light solution for a wide range of lighting concepts.Technical data:
| Product name: | STRUCTEC ZOOM |
| Colour: | black |
| Material: | Aluminium |
| electrical power: | 34 W |
| Lumen/wattage: | 82.35 lm/W |
| Luminous Flux: | 2800 lm |
| Colour temperature: | 3000 Kelvin |
| Half beam angle: | 25 ° |
| CRI: | 90 |
| Protection category: | I |
| IP Code: | IP 20 |
| Assembly: | Surface |
| Assembly details: | Ceiling |

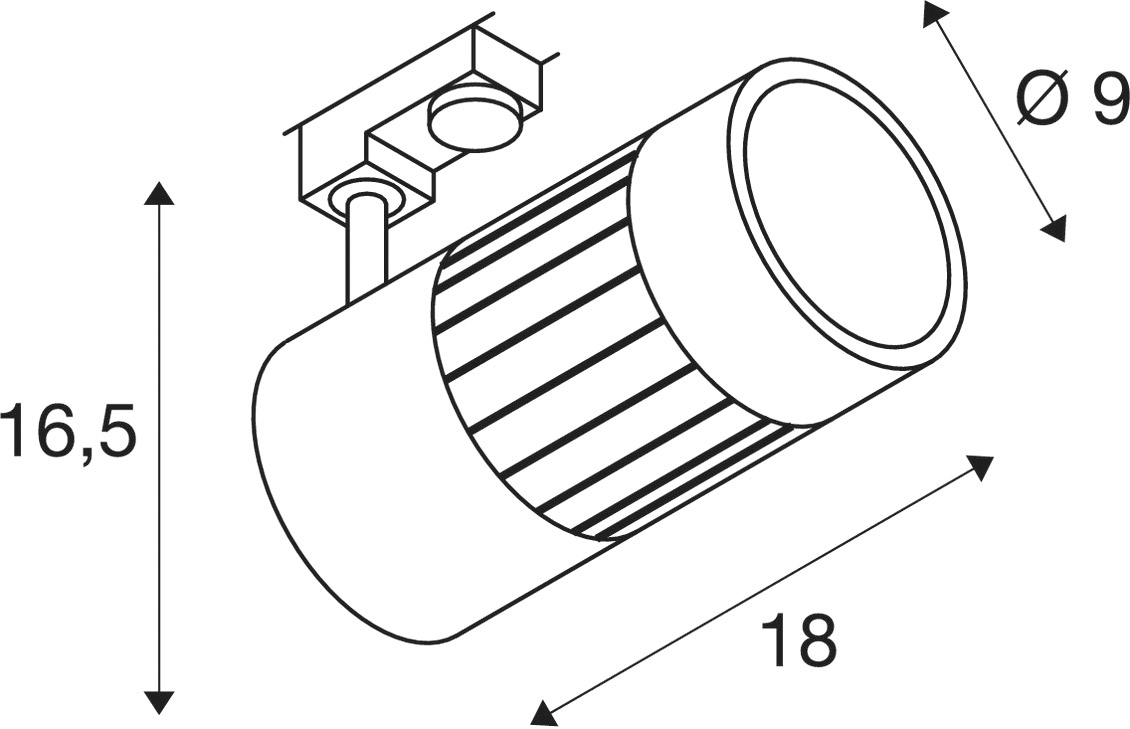

| Length: | 18 cm |
| Height: | 16.5 cm |
| Diameter: | 9 cm |
| Rotating or tilting: | rotary Bar and tiltable |
| Vertical tilting range: | 90 ° |
| Horizontal rotation range: | 350 ° |
| Service life: | 30000 h |
| Primary nominal voltage: | 220-240V ~50/60Hz |
| Secondary power / secondary voltage: | 900mA |
| Net weight: | 1.25 kg |
| Rated value luminous efficacy: | 82.35 lm/W |
| Weighted consumption: | 34 kWh/1.000h |
| LXXBXX data: | L70B50 |
