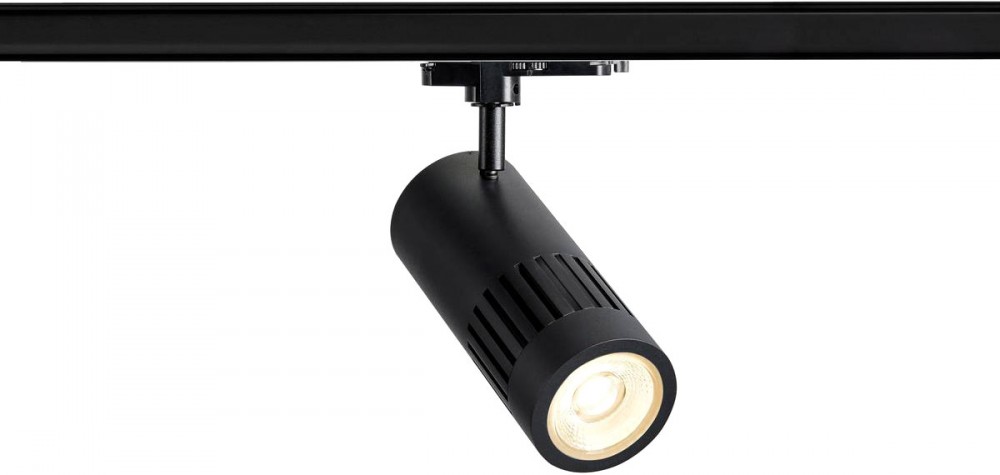

SLV 3~ STRUCTEC DALI 3-circuit system luminaire black 4000K 36° incl. 3-circuit adapter

The STRUCTEC spot, which is available in several housing and light colours, comes with a suitable adapter for the 3-circuit 240V track system, and is equipped with a high-performance COB LED Module. The spot is also very suitable for professional applications thanks to the built-in DALI components. The spot is therefore a modern light solution for a wide range of lighting concepts.Technical data:

Product name:	STRUCTEC
Colour:	black
Material:	Aluminium
electrical power:	29 W
Lumen/wattage:	89.66 lm/W
Luminous Flux:	2600 lm
Colour temperature:	4000 Kelvin
Half beam angle:	36 °
CRI:	80
Dimmable:	Yes
Dimming technology:	DALI
Protection category:	I
IP Code:	IP 20
Assembly details:	Track Ceiling
Shape:	cylindrical

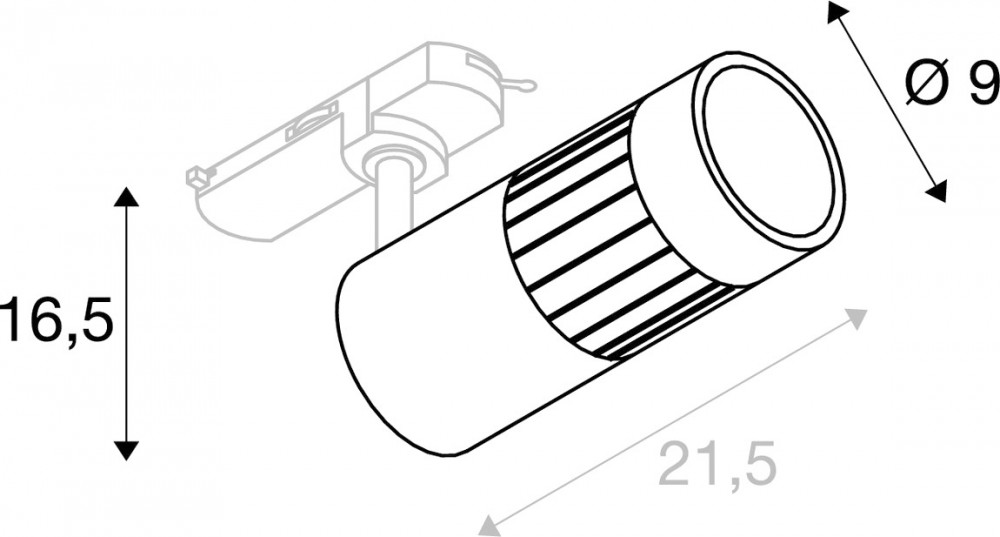

Length:	21.5 cm
Height:	16.5 cm
Diameter:	9 cm
Rotating or tilting:	rotary Bar and tiltable
Vertical tilting range:	90 °
Horizontal rotation range:	350 °
Light outlet:	direct
Luminous intensity distribution:	rotational symmetric
Colour consistency:	3 SDCM
Service life:	30000 h
Primary nominal voltage:	220-240V ~50/60Hz
Secondary power / secondary voltage:	700mA
Ambient temperature:	25 °C
Net weight:	1.31 kg
Rated value luminous efficacy:	89.66 lm/W
Weighted consumption:	29 kWh/1.000h
LXXBXX data:	L70B50
Half beam angle:	36 °
