LEDVANCE STREETLIGHT AREA SMALL RV20ST 30W 730 RV20ST GY
Delivery time: approx. 2 weeks
Fitting a broad range of street and area lighting applications. Product features: Light distributions optimized for streets of similar width to the pole height. Spigot included, suitable for 48…60 mm diameter poles. Adjustable spigot for both side-entry and post-top installation. +/- 30° tilt angle adjustment without opening the housing. High luminous efficacy: up to 135 lm/W. Operating temperature: -30...50 °C. Long lifetime L70: up to 70,000 h (at 25 °C). High surge protection: up to 10 kV (L/N-PE). Product benefits: Functional and minimalistic design. Low maintenance and operation costs due to long lifetime of LED. 5 years guarantee. Areas of application: Outdoor use (IP66). M-, C- and P-class roads acc. to EN 13201. Car parks. Area lighting.

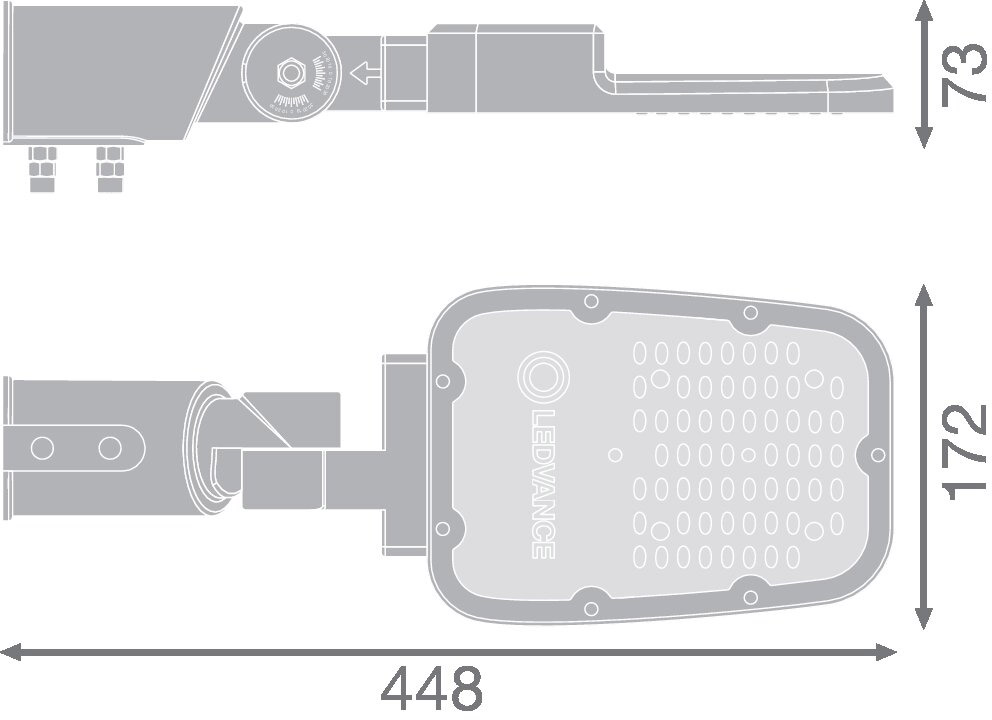

Technical data:| Length: | 448 mm |
| Width: | 172 mm |
| Height: | 73 mm |
| Weight: | 1400 g |
| Nominal voltage: | 100-240 V |
| Nominal power: | 30 W |
| Energy consumption: | 30 kWh/1000 |
| Colour temperature: | 3000 K |
| Light colour: | White |
| Luminous flux: | 3900 lm |
| Luminous efficacy: | 130 lm/W |
| Colour rendering: | 70-79 CRI |
| Dimmable: | No |
| Lifetime: | 70000 h |
| Protection class: | IP66 |
| Light source type: | LED not exchangeable |
| Material: | Aluminium |
| Colour: | Grey |
| Incl. illuminant: | Yes |
| Mounting method: | Post top |
| Lamp holder: | None |
| Surface protection: | Powder coating |
| Material cover: | Plastic, opal |
| Voltage type: | AC |
| With control gear: | yes |
| Exchangeable control gear: | yes |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Light distributor: | Focal lens |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 82 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 88 |
| Adjustable optics: | no |
| Impact strength: | IK08 |
| Protection class according to IEC 61140: | I |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Rated ambient temperature according to IEC 62722-2-1: | +50°C |
| Remote control: | None |
| With radio control: | no |
| Constant light output (CLO): | no |
| With light regulation program control: | no |
| With connection cable: | yes |
| Cable length: | 0,5 m |
| Power factor: | 0.90 |
| Type of wiring: | Ending |
| Number of poles: | 3 |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
| Operation by Bluetooth: | no |
| With light sensor: | no |
