SLV AINOS SQUARE, outdoor LED surface-mounted wall and ceiling light anthracite CCT switch
€111.09 *
Availability:
Delivery time: 5-7 days
Delivery time: approx. 5-7 days
Item number: 110046580
EAN: 4024163236072
SLV AINOS robust, water-proof surface mounted solution, comes with or without a sensor. Square... more
All information about the product:
"SLV AINOS SQUARE, outdoor LED surface-mounted wall and ceiling light anthracite CCT switch"

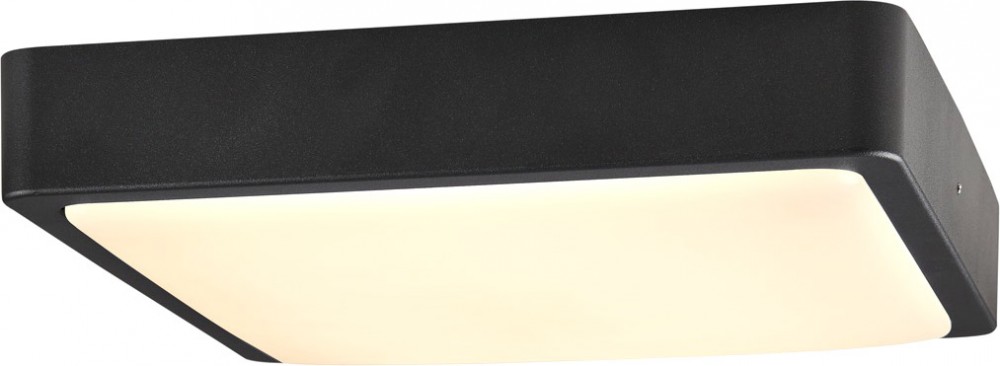

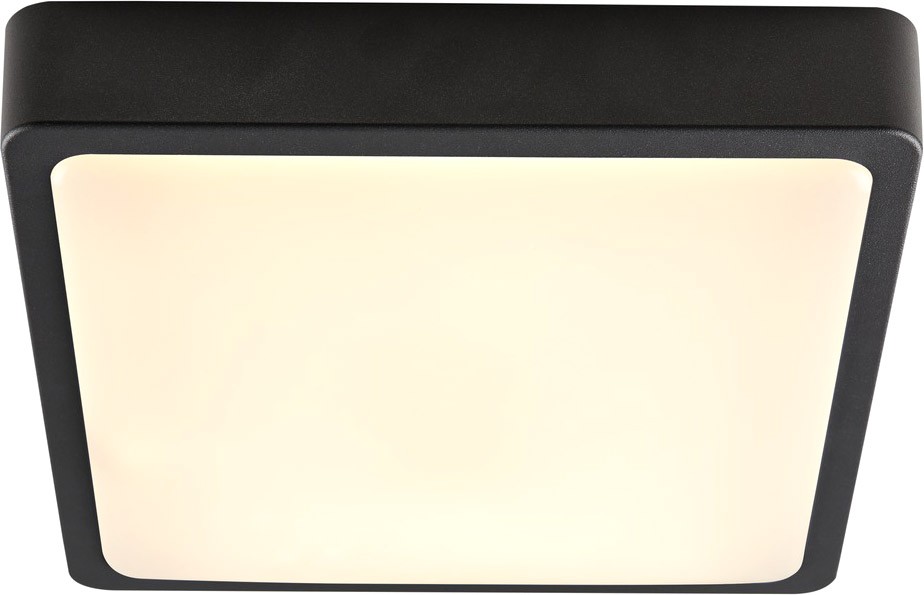

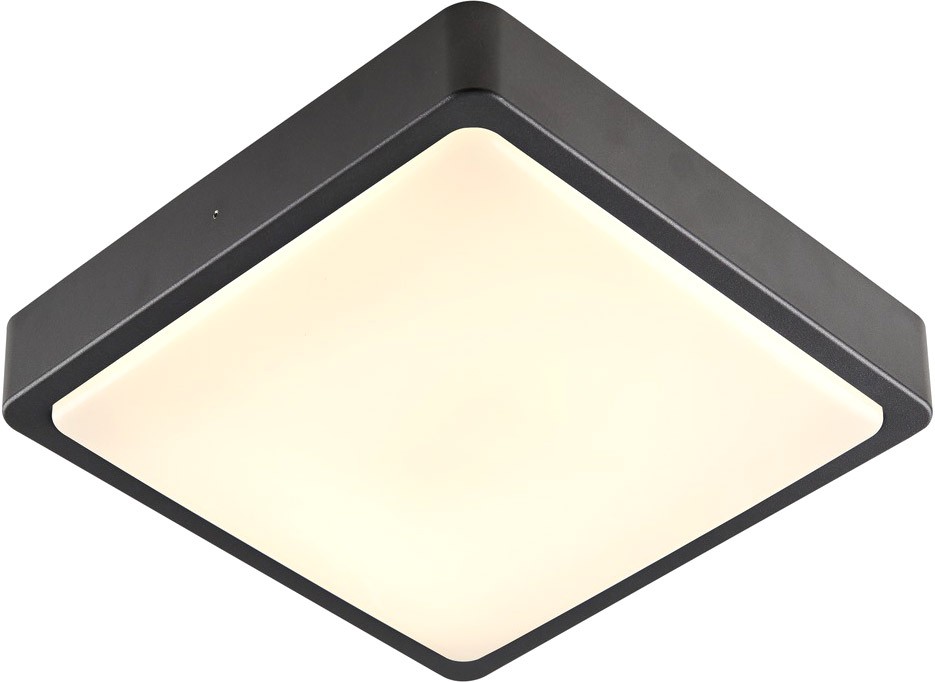

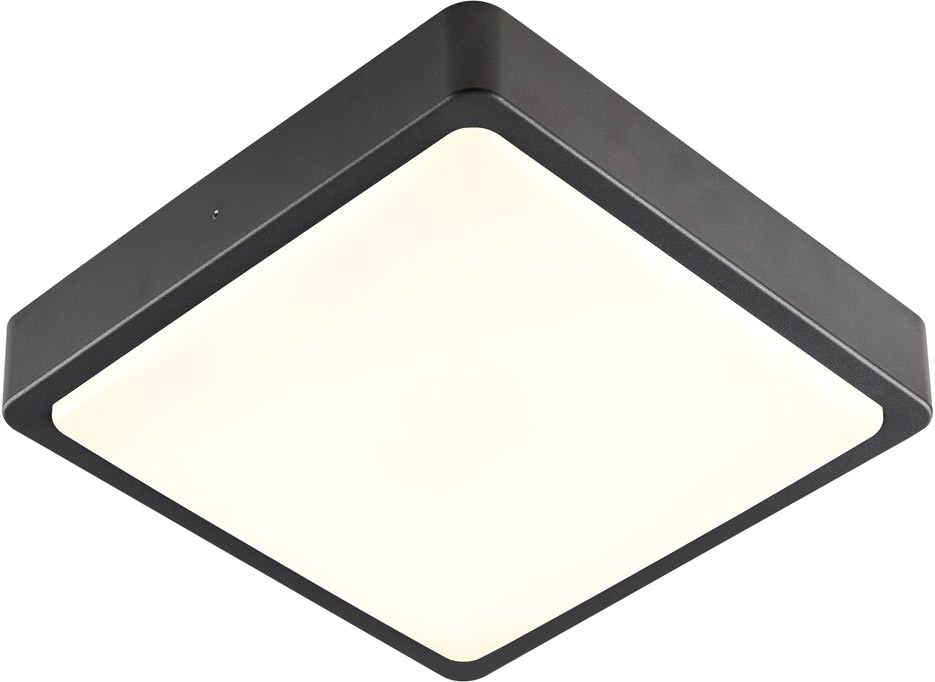

SLV AINOS robust, water-proof surface mounted solution, comes with or without a sensor. Square wall and ceiling light made from aluminium, suitable for outdoor use due to the high protection class. The opal illumination surface beneath which the LED is located is surrounded by the lacquered housing. The luminaire comes in several colour versions and is connected directly to the 230V mains supply thanks to its built-in LED driver.Technical data:
| Product name: | AINOS |
| Colour: | anthracite |
| Material: | Aluminium |
| electrical power: | 17 W |
| Lumen/wattage: | 76.47 lm/W |
| Luminous Flux: | 1300 lm |
| CRI: | 80 |

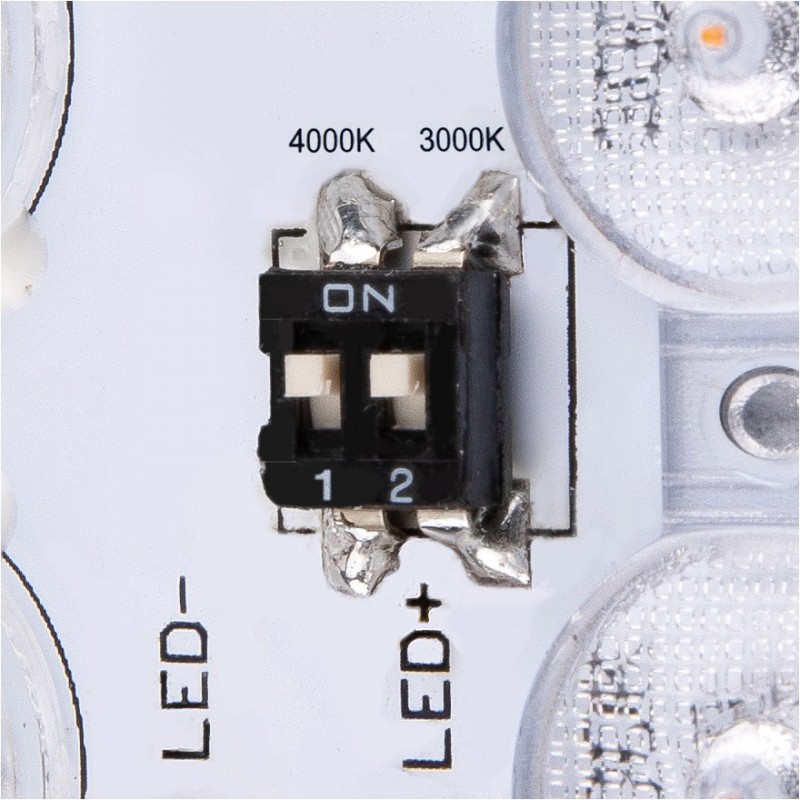

| CCT Switch: | Yes |
| Protection category: | I |
| IP Code: | IP 65 |
| Assembly: | Surface |
| Assembly details: | Ceiling |
| Shape: | square |

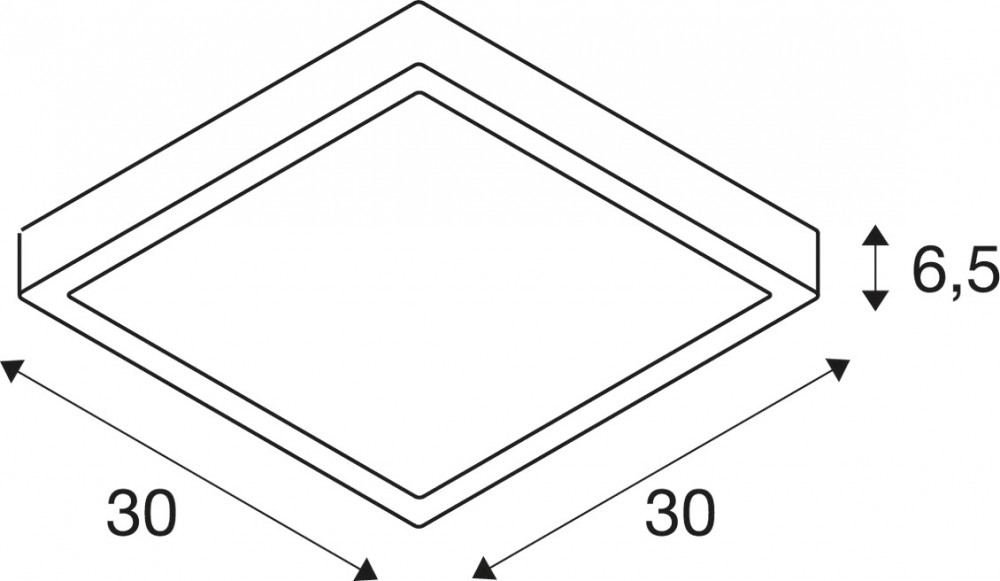

| Length: | 30 cm |
| Width: | 30 cm |
| Height: | 6.5 cm |
| Service life: | 30000 h |
| Primary nominal voltage: | 220-240V ~50/60Hz |
| Secondary power / secondary voltage: | 500mA |
| Ambient temperature: | 45 °C |
| Net weight: | 1.87 kg |
| Rated value luminous efficacy: | 76.47 lm/W |
| Weighted consumption: | 17 kWh/1.000h |
| LXXBXX data: | L70B50 |
