SLV AINOS SQUARE SENSOR outdoor LED surface-mounted wall and ceiling light anthracite CCT switch
€138.69 *
Availability:
Delivery time: 5-7 days
Delivery time: approx. 5-7 days
Item number: 110046590
EAN: 4024163236096
SLV AINOS robust, water-proof surface mounted solution, comes with or without a sensor. Square... more
All information about the product:
"SLV AINOS SQUARE SENSOR outdoor LED surface-mounted wall and ceiling light anthracite CCT switch"

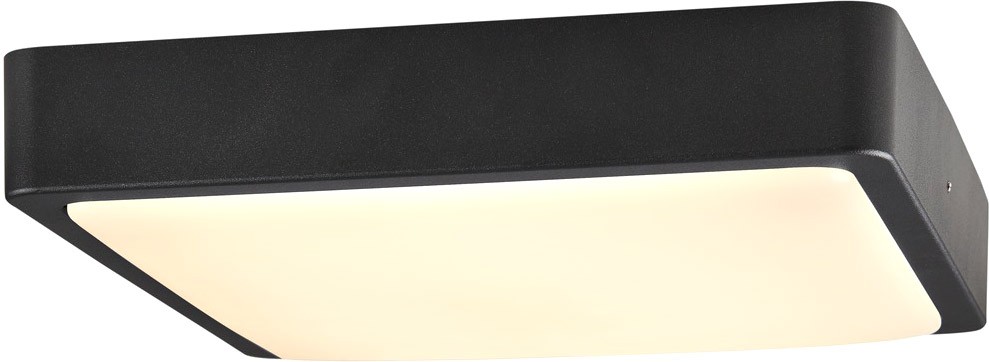

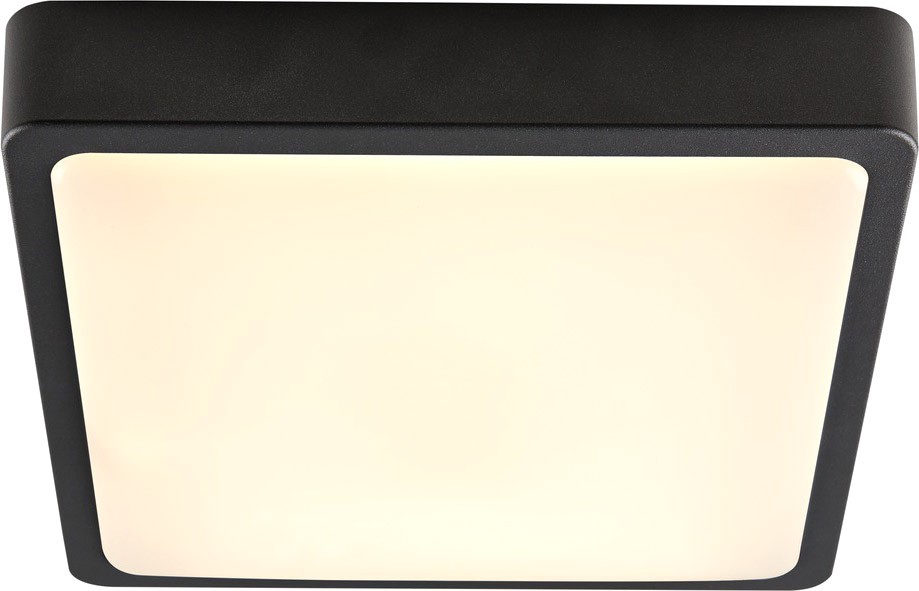

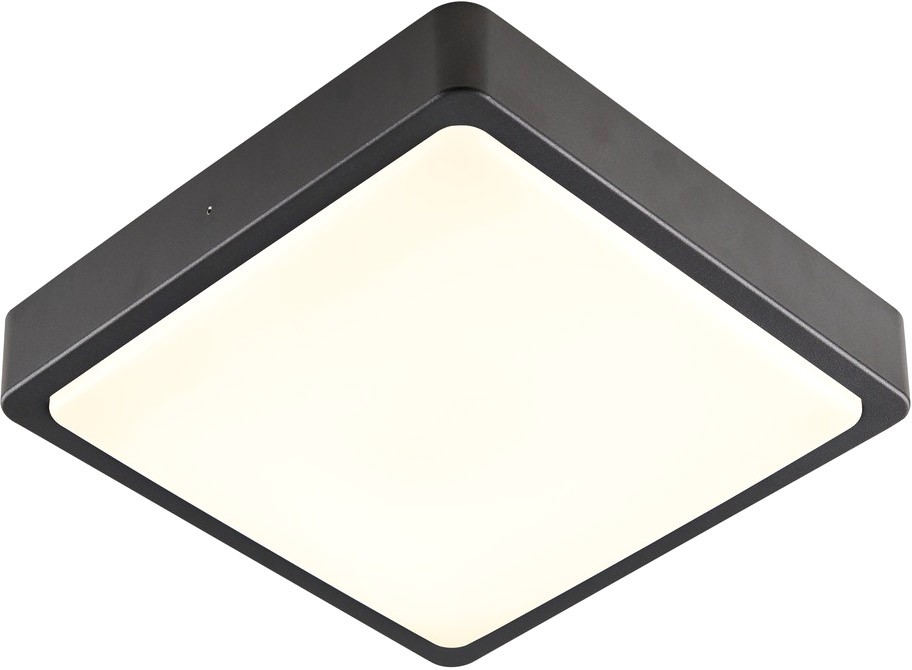

SLV AINOS robust, water-proof surface mounted solution, comes with or without a sensor. Square wall and ceiling light made from aluminium, suitable for outdoor use due to the high protection class. The opal illumination surface beneath which the LED is located is surrounded by the lacquered housing. The luminaire comes in several colour versions and is connected directly to the 230V mains supply thanks to its built-in LED driver.Technical data:
| Product name: | AINOS |
| Colour: | anthracite |
| Material: | Aluminium |
| electrical power: | 18 W |
| Lumen/wattage: | 72.22 lm/W |
| Luminous Flux: | 1300 lm |
| CRI: | 80 |

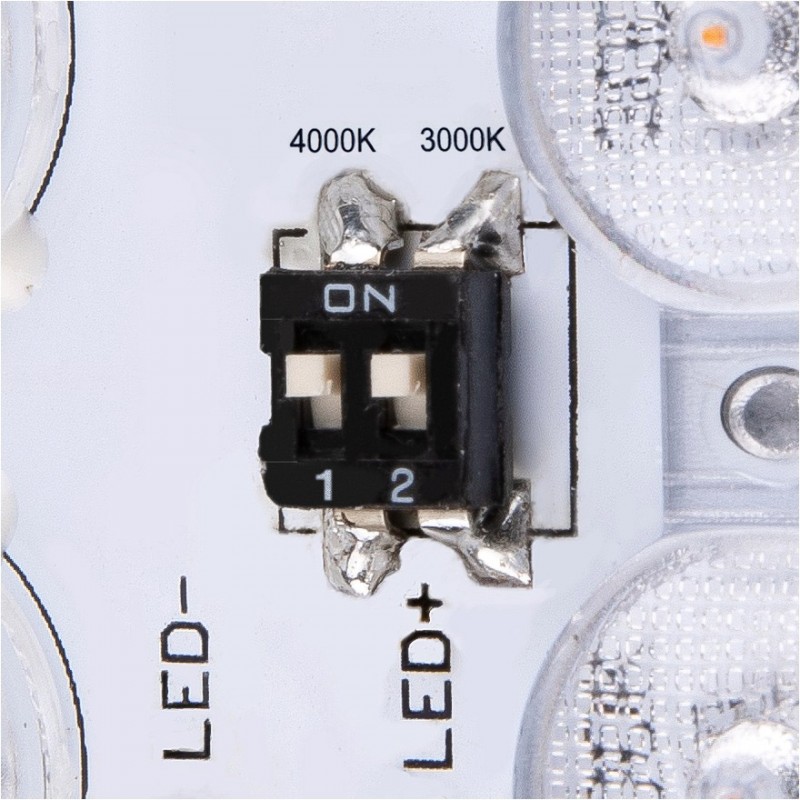

| CCT Switch: | Yes |
| Protection category: | I |
| IP Code: | IP 65 |
| Assembly: | Surface |
| Assembly details: | Ceiling |
| Shape: | square |

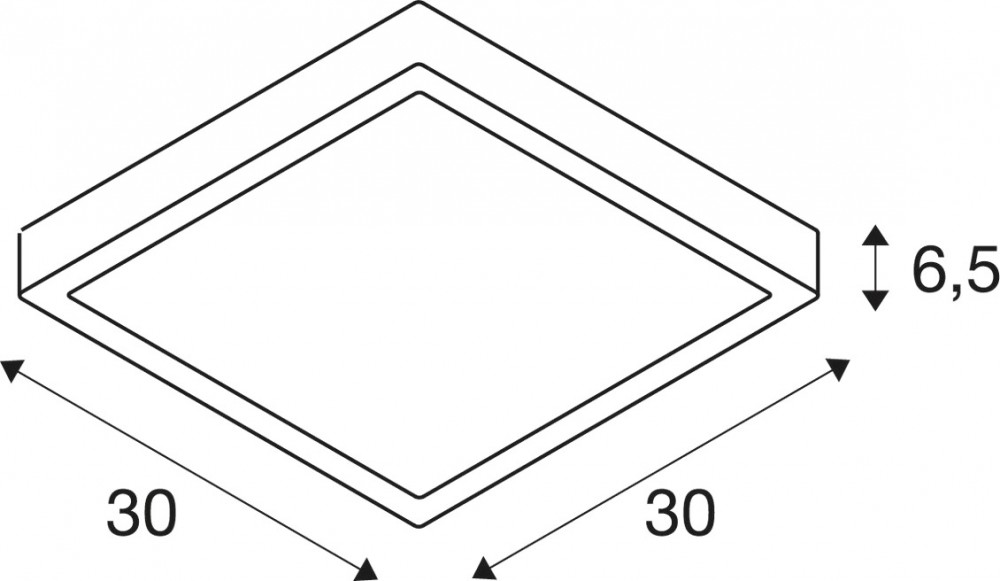

| Length: | 30 cm |
| Width: | 30 cm |
| Height: | 6.5 cm |
| Service life: | 30000 h |
| Primary nominal voltage: | 220-240V ~50/60Hz |
| Secondary power / secondary voltage: | 500mA |
| Ambient temperature: | 45 °C |
| Net weight: | 1.96 kg |
| Rated value luminous efficacy: | 72.22 lm/W |
| Weighted consumption: | 18 kWh/1.000h |
| LXXBXX data: | L70B50 |
| Motion sensor: | Mircowave |
Further links
- Do you have any questions concerning this product?
- Further products by SLV
-
Information about the manufacturerObligation to provide information on product safety (GPSR)Manufacturer:SLV GmbH
Daimlerstraße 21-23
DE-52531 Übach-Palenberg
info@slv.de -
Safety instructions and warningsSafety instructions and warnings (GPSR)Specific safety instructions that apply to the product can be found in the operating instructions for the product.
We will be happy to advise you!
You can reach us:
| Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Learn more about us!
Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads
"SLV AINOS SQUARE SENSOR outdoor LED surface-mounted wall and ceiling light anthracite CCT switch"
| Document type | File size | |
|
Operating instructions | 0.38 MB |
|
|
Operating instructions | 0.41 MB |
|
|
Data sheet | 0.24 MB |
|
|
Data sheet | 0.28 MB |
|
|
Technical drawing / illustration | 0.02 MB |
|
|
Certificate | 0.40 MB |
|
|
Certificate | 0.40 MB |
|
|
EPREL-Product data sheet | 0.22 MB |
|
|
Information about the product | 0.94 MB |
