SLV ESKINA FRAME 75 FL, Outdoor LED free-standing light single anthracite CCT switch 3000/4000K
€212.52 *
Availability:
Delivery time: 5-7 days
Delivery time: approx. 5-7 days
Item number: 110051170
EAN: 4024163249003
An all-round successful design with an elegant rectangular aluminium frame: the popular outdoor... more
All information about the product:
"SLV ESKINA FRAME 75 FL, Outdoor LED free-standing light single anthracite CCT switch 3000/4000K"

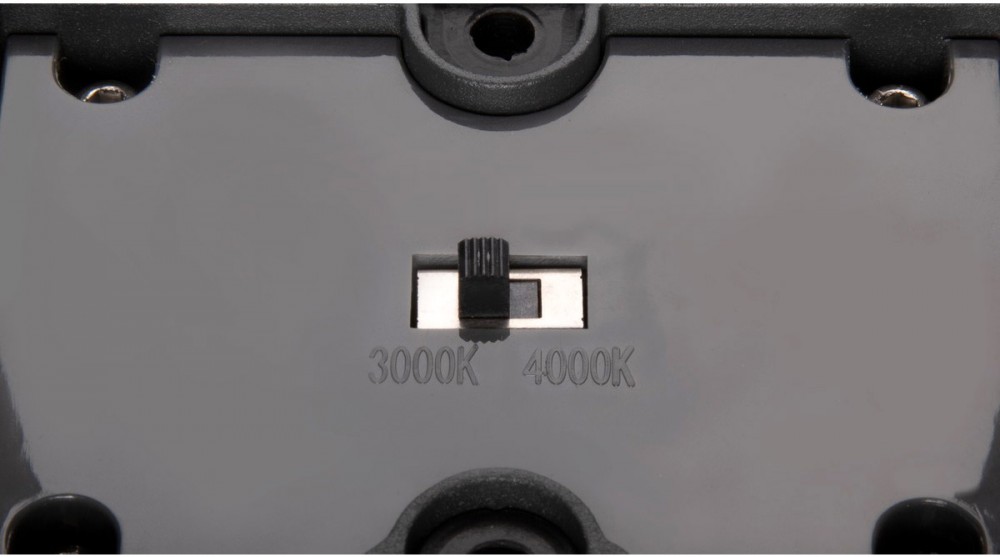

An all-round successful design with an elegant rectangular aluminium frame: the popular outdoor lights of the ESKINA family now offer even greater scope for application in the FRAME design alternative. The anthracite-coloured ESKINA FRAME makes a stylish impression in any outdoor area. The pivoting light heads ensure flexible light emission. Thanks to a high IP protection rating, ESKINA is perfectly protected from the elements. In addition, the light colour (3000/4000K) can be selected using the CCT switch before installation. This means that easy installation is a mere formality.Technical data:
Product name: | ESKINA FRAME 75 |
Colour: | anthracite |
Material: | Aluminium |
electrical power: | 15 W |
Lumen/wattage: | 73.33 lm/W |
Luminous Flux: | 1200 lm |
Half beam angle: | 95 ° |
CRI: | 80 |
CCT Switch: | Yes |
Protection category: | I |
IP Code: | IP 65 |
Assembly: | Surface |
Assembly details: | Ground |
Length: | 11.5 cm |
Width: | 7.3 cm |
Height: | 75 cm |
Rotating or tilting: | tiltable |
Vertical tilting range: | 320 ° |
Light outlet: | direct |
Luminous intensity distribution: | rotational symmetric |
Service life: | 30000 h |
Primary nominal voltage: | 220-240V ~50/60Hz |
Secondary power / secondary voltage: | 350mA |
Ambient temperature: | -20 - 35 °C |
Net weight: | 2.98 kg |
Rated value luminous efficacy: | 73.33 lm/W |
Weighted consumption: | 15 kWh/1.000h |
LXXBXX data: | L70B50 |
Further links
- Do you have any questions concerning this product?
- Further products by SLV
-
Information about the manufacturerObligation to provide information on product safety (GPSR)Manufacturer:SLV GmbH
Daimlerstraße 21-23
DE-52531 Übach-Palenberg
info@slv.de -
Safety instructions and warningsSafety instructions and warnings (GPSR)Specific safety instructions that apply to the product can be found in the operating instructions for the product.
We will be happy to advise you!
You can reach us:
Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Downloads for the product:
"SLV ESKINA FRAME 75 FL, Outdoor LED free-standing light single anthracite CCT switch 3000/4000K"
Document type | File size | |
Operating instructions
(0.39 MB)
|
0.39 MB | |
Operating instructions
(0.38 MB)
|
0.38 MB | |
Data sheet
(0.21 MB)
|
0.21 MB | |
Data sheet
(0.75 MB)
|
0.75 MB | |

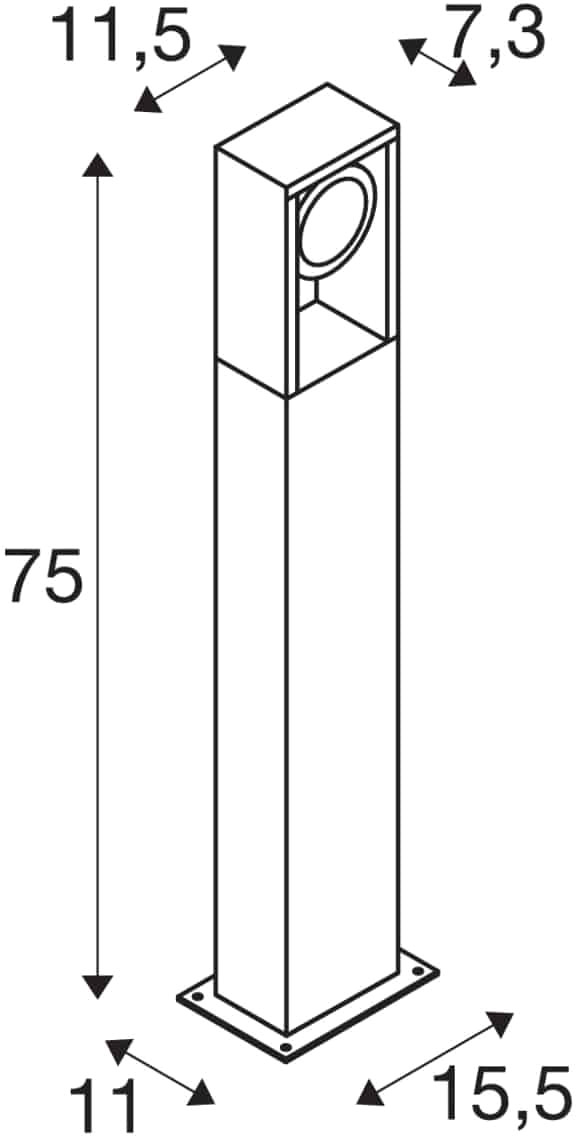

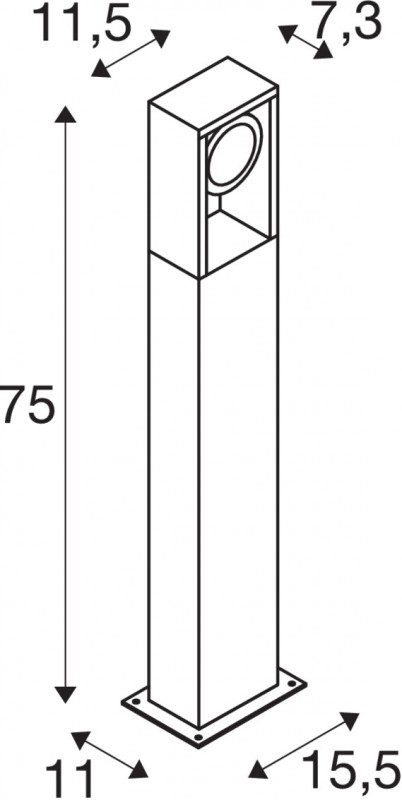

Technical drawing / illustration
(0.02 MB)
|
0.02 MB | |
Certificate
(0.37 MB)
|
0.37 MB | |
Certificate
(0.37 MB)
|
0.37 MB | |
EPREL-Product data sheet
(0.53 MB)
|
0.53 MB |
