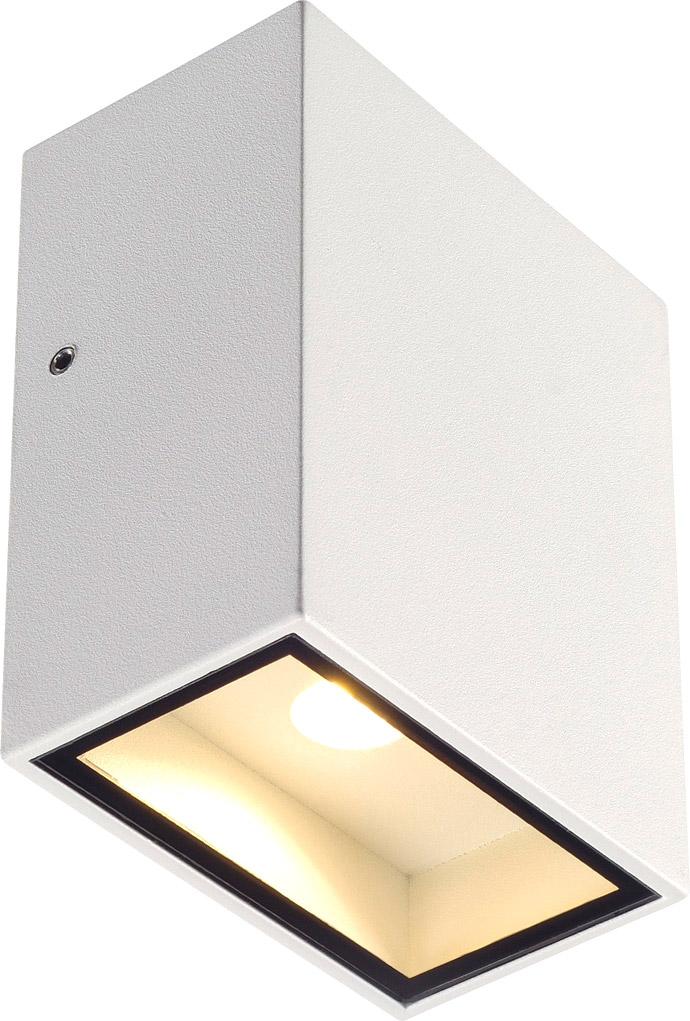

SLV QUAD 1 XL, wall light, LED, 3000K, IP44, square, white, 3.2W
€82.11 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 110029025
EAN: 4024163148634
The QUAD 1 XL wall light is available in several colours, and fitted with a powerful, warm white... more
All information about the product:
"SLV QUAD 1 XL, wall light, LED, 3000K, IP44, square, white, 3.2W"
The QUAD 1 XL wall light is available in several colours, and fitted with a powerful, warm white LED. The electrical connection of the aluminium luminaire is made directly to the 230V mains supply using the built-in driver. Thanks to its IP44 protection class, the luminaire is suitable for outdoor use.Technical data:
| Product name: | BIG QUAD |
| Colour: | white |
| Material: | Aluminium |
| electrical power: | 4.5 W |
| Lumen/wattage: | 64.44 lm/W |
| Luminous Flux: | 290 lm |
| Colour temperature: | 3000 Kelvin |

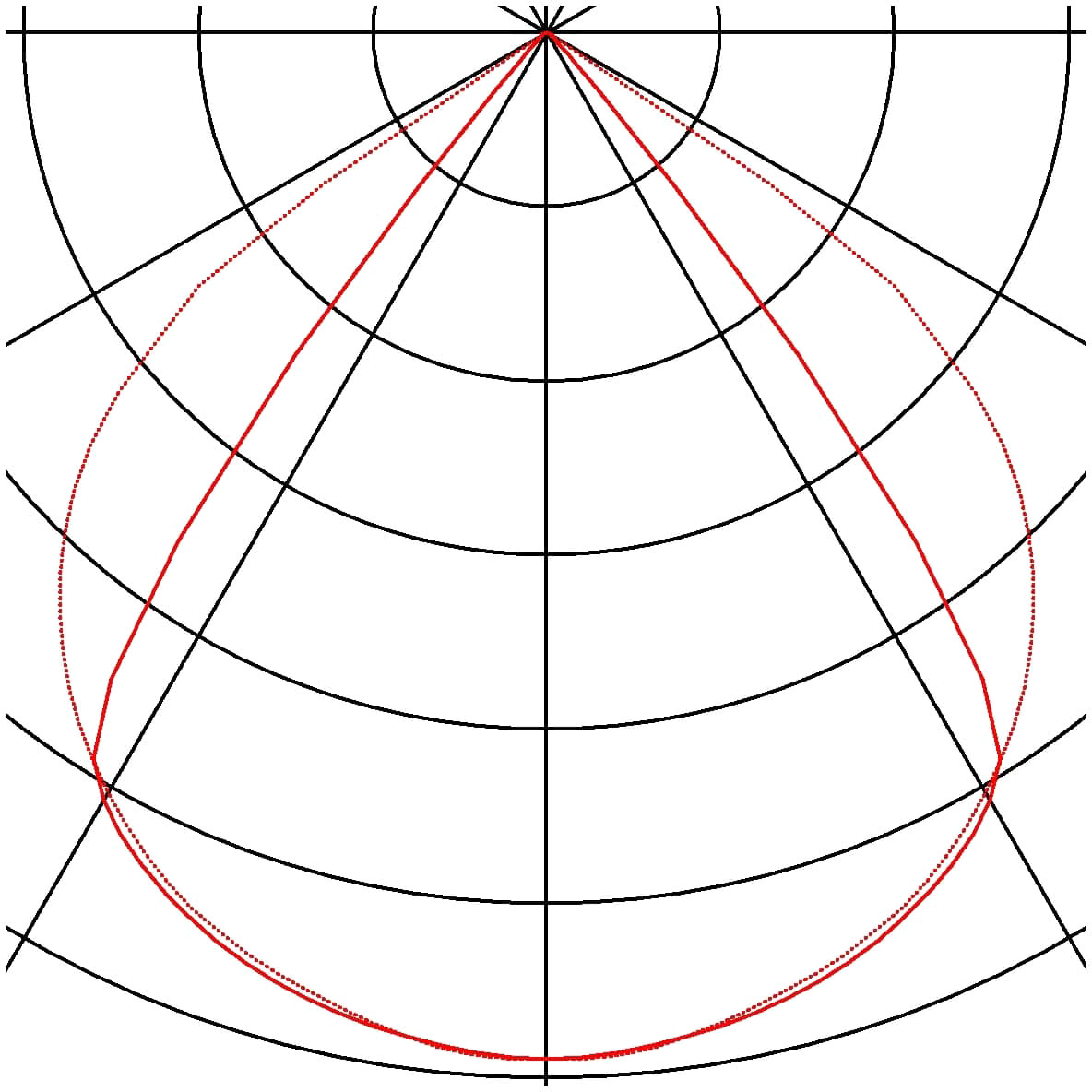

| Half beam angle: | 110 ° |
| Different light outlets: | 1 |
| Protection category: | I |
| IP Code: | IP 44 |
| Assembly: | Surface |
| Assembly details: | Wall |
| Shape: | square |

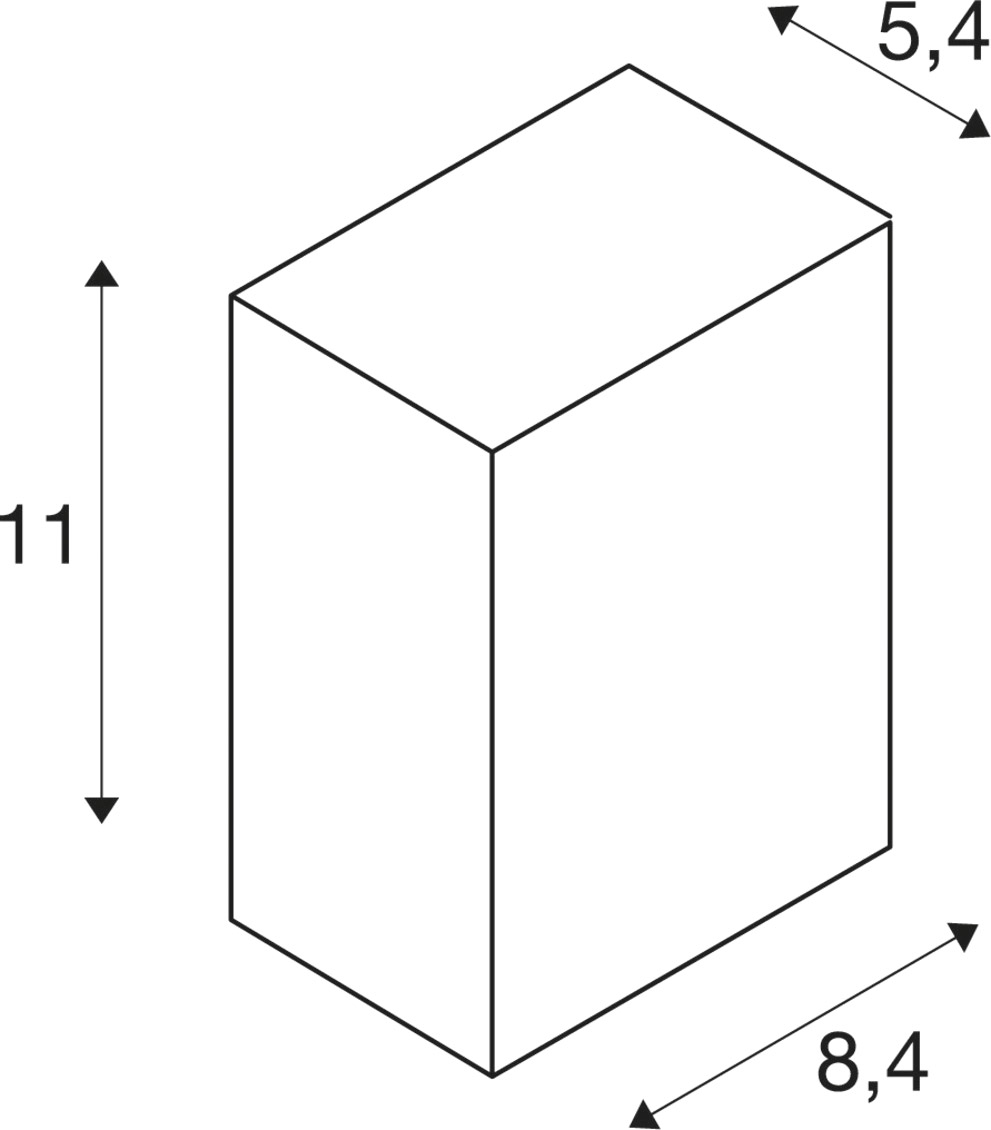

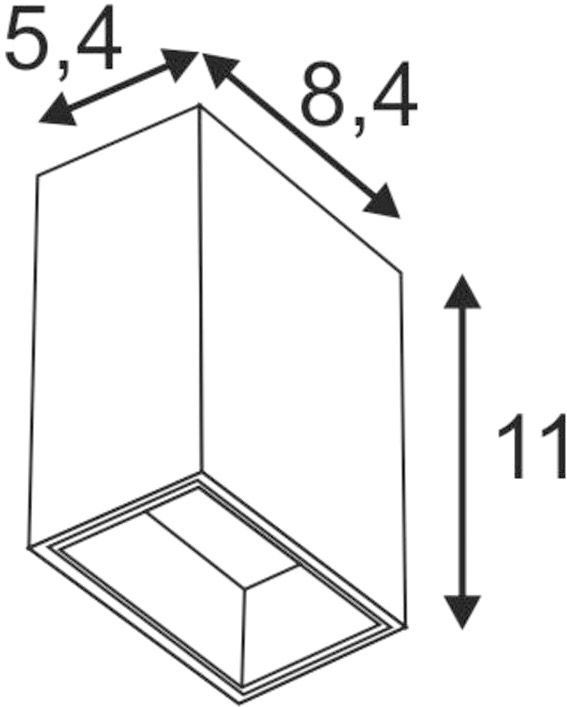

| Width: | 8.4 cm |
| Height: | 11 cm |
| Service life: | 30000 h |
| Shock resistance category: | IK05 |
| Primary nominal voltage: | 100-277V ~50/60Hz |
| Secondary power / secondary voltage: | 350mA |
| Ambient temperature: | -20 - 50 °C |
| Net weight: | 0.64 kg |
| Rated value luminous efficacy: | 64.44 lm/W |
| Weighted consumption: | 4.5 kWh/1.000h |
| LXXBXX data: | L70B50 |
