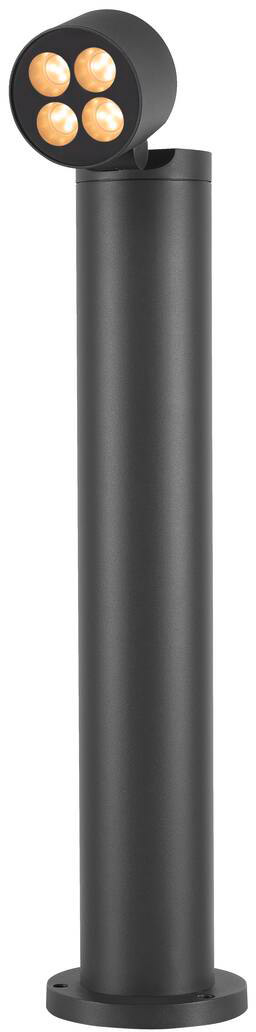

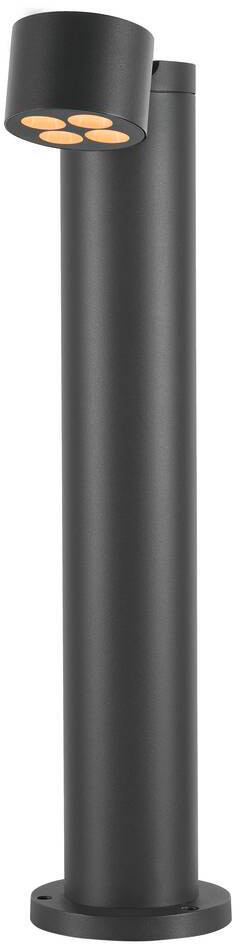

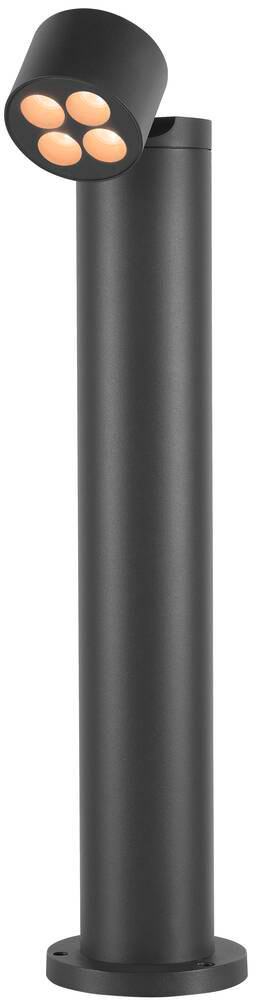

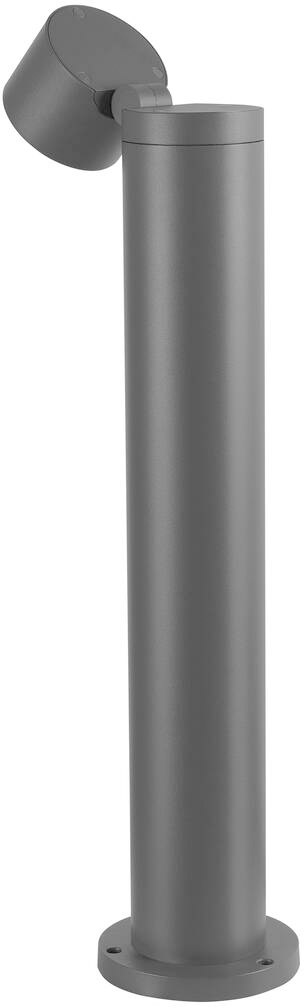

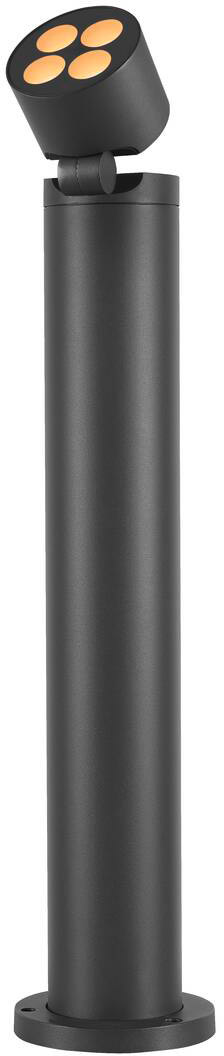

SLV R-CUBE 75, free-standing lamp, 15W, 2700/3000K, PHASE, anthracite
€161.46 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 110060475
EAN: 4024163278096
The new R-CUBE free-standing lamp captivates with its modern and elegant design. Thanks to its... more
All information about the product:
"SLV R-CUBE 75, free-standing lamp, 15W, 2700/3000K, PHASE, anthracite"

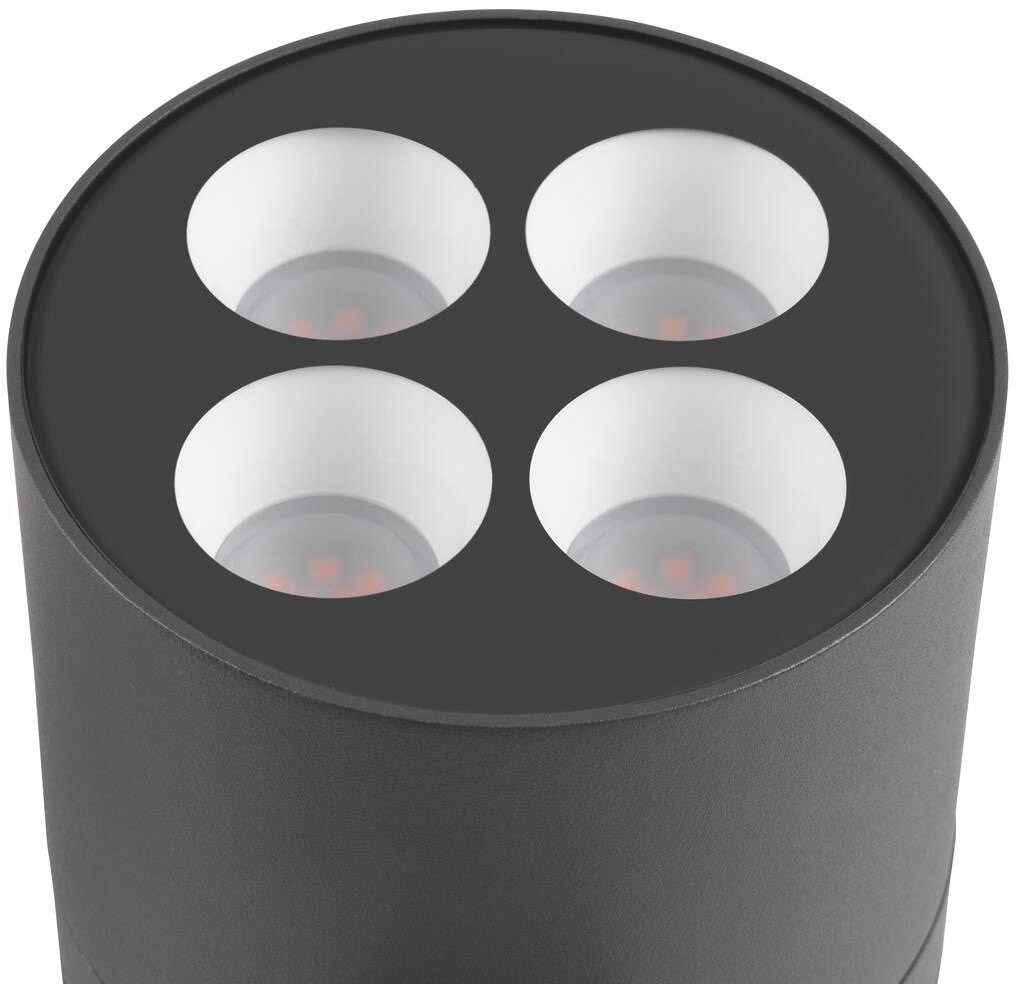

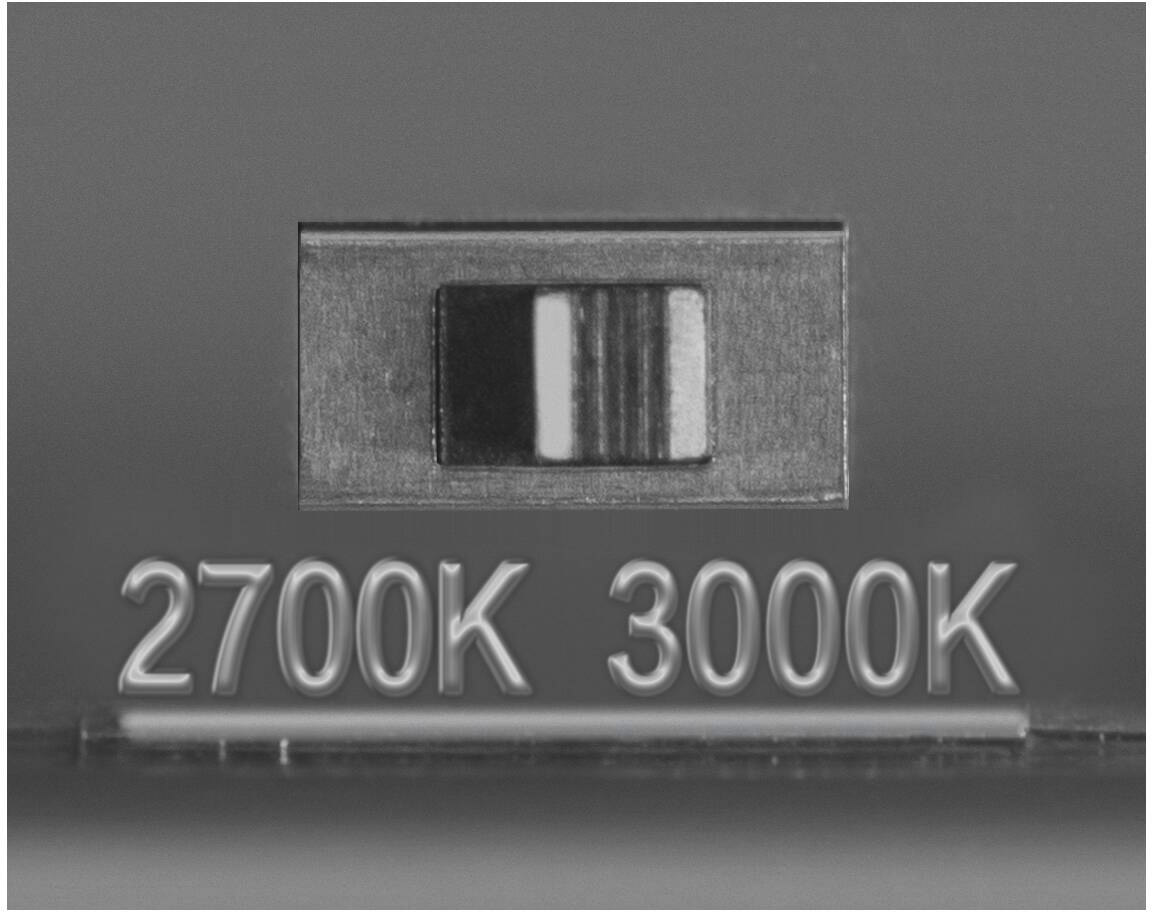

The new R-CUBE free-standing lamp captivates with its modern and elegant design. Thanks to its adjustable light colour (2700/3000K), IP65 protection class, high colour rendering index (CRI>80), dimmability and long lifespan (L80/B10 50,000h), it provides everything you would expect from a trendsetting outdoor light. The delicate satin finish of the LED cover is a real highlight, creating a clean, homogenous look and draws the gaze to the white reflectors.Technical data:
| Product name: | R-CUBE 75 |
| Colour: | anthracite |
| Material: | aluminium |
| electrical power: | 15 W |
| Rated value luminous efficacy: | 53/53 lm/W |
| Luminous flux: | 800 / 800 lm |
| Half beam angle: | 70 ° |
| CRI: | 80 |
| Dimmable: | Yes |
| Dimming technology: | trailing edge |
| Protection category: | I |
| IP Code: | IP 65 |
| Assembly details: | Ground |
| Shape: | round |

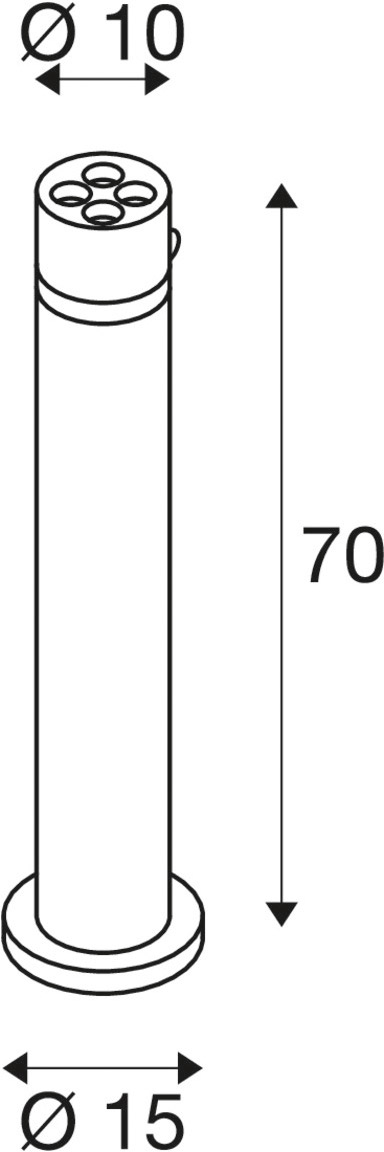

| Height: | 70 cm |
| Diameter: | 10 cm |

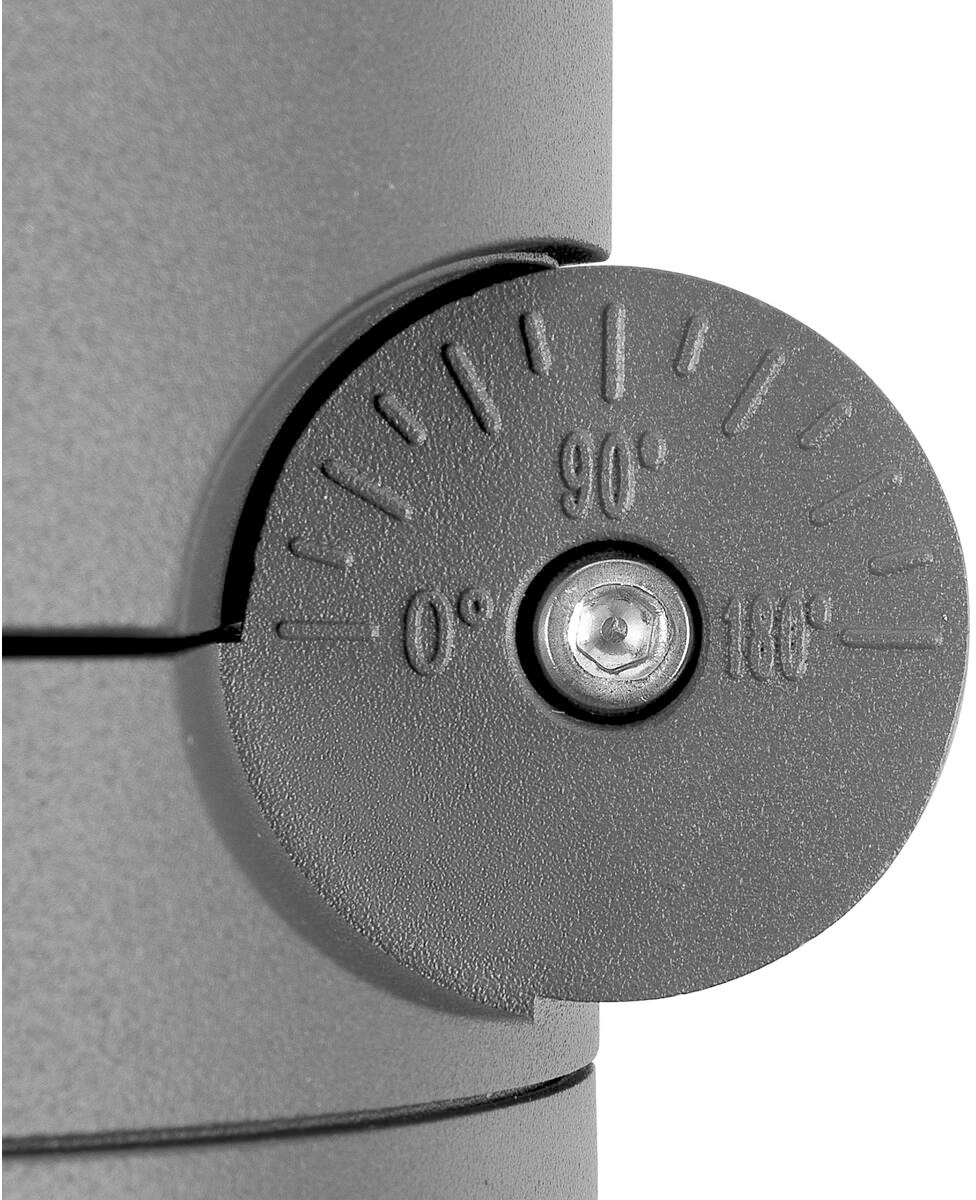

| Vertical tilting range: | 180 ° |
| Horizontal rotation range: | 350 ° |
| Shock resistance category: | IK04 |
| Shock resistance: | 0.2 joule |
| Primary nominal voltage: | 220-240V ~50/60Hz |
| Secondary power / secondary voltage: | 350mA |
| Ambient temperature: | -20 - 40 °C |
| Energy efficiency class: | E |
| Net weight: | 2.2 kg |
| Weighted consumption: | 15 kWh/1.000h |
| LXXBXX data: | L70B20 |
| Service life: | 48000 h |
| Number of lights on LS B16A: | 61 St. |
| Number of lights on LS C16A: | 61 St. |
| Inrush current level: | 6.5 A |
| Inrush current duration: | 40 µs |
| Glass temperature (light emission): | 60 °C |
| Stroboscopic visibility measure (SVM): | 0.02 |
| Risk group: | 1 |
