SLV ABRIDOR POLE 100, Outdoor LED floor stand IP55 anthracite 3000/4000K
€194.58 *
Availability:
Delivery time: 5-7 days
Delivery time: approx. 5-7 days
Item number: 110045430
EAN: 4024163231831
The aluminium luminaires in the ABRIDOR family provide solutions for the wall light and floor... more
All information about the product:
"SLV ABRIDOR POLE 100, Outdoor LED floor stand IP55 anthracite 3000/4000K"
The aluminium luminaires in the ABRIDOR family provide solutions for the wall light and floor stand area. Thanks to its IP55 protection class, the luminaires are suitable for outdoor use. The electrical connection is made directly to the 230V mains power supply. The unusual lamp head means that the built-in LED has particularly wide light distribution.Technical data:
| Product name: | ABRIDOR 100 |
| Colour: | anthracite |
| Material: | Aluminium |
| electrical power: | 14 W |
| Lumen/wattage: | 53.57 lm/W |
| Luminous Flux: | 750 lm |
| CRI: | 80 |
| CCT Switch: | Yes |
| Protection category: | I |
| IP Code: | IP 55 |
| Assembly: | Surface |
| Assembly details: | Ground |

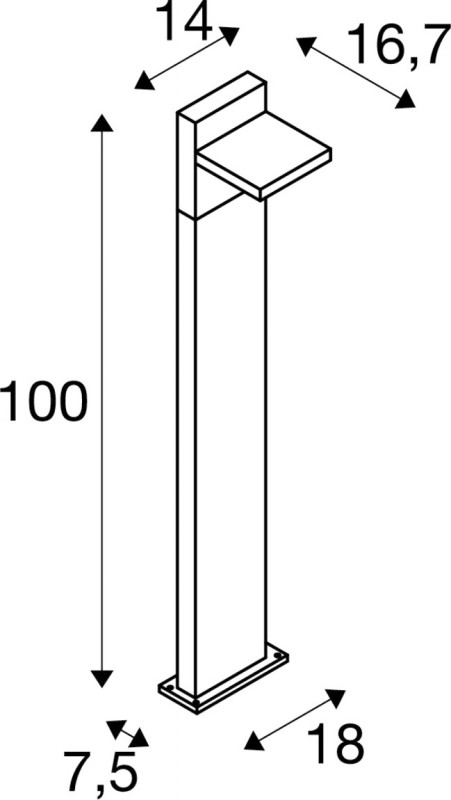

| Shape: | square |
| Length: | 14 cm |
| Width: | 3.6 cm |
| Height: | 100 cm |
| Rotating or tilting: | tiltable |
| Vertical tilting range: | 45 ° |
| Light outlet: | direct |
| Luminous intensity distribution: | symmetric |
| Service life: | 50000 h |
| Shock resistance category: | IK03 |
| Shock resistance: | 0.35 joule |
| Primary nominal voltage: | 100-277V ~50/60Hz |
| Secondary power / secondary voltage: | 300mA |
| Ambient temperature: | 40 °C |
| Ambient temperature: | -25 - 40 °C |
| Net weight: | 3.59 kg |
| Rated value luminous efficacy: | 53.57 lm/W |
| Weighted consumption: | 14 kWh/1.000h |
| LXXBXX data: | L70B50 |
