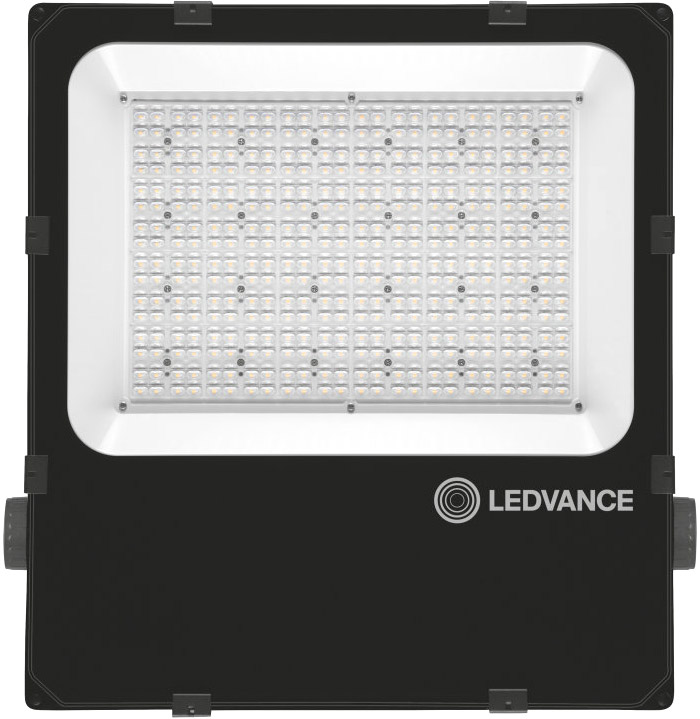

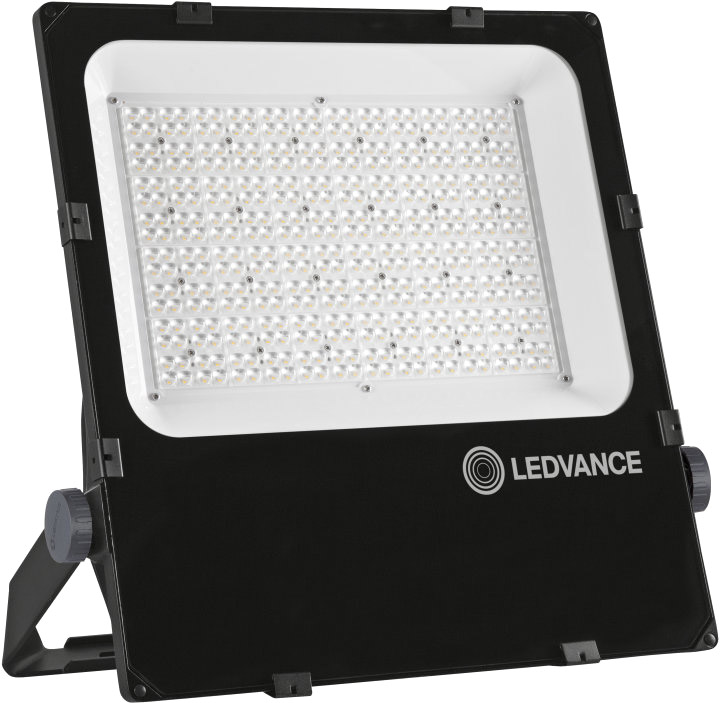

LEDVANCE FLOODLIGHT PERFORMANCE ASYM 45x140 290 W 3000 K BK
€599.00 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 100300170
EAN: 4058075353732
Floodlight with very wide beam, asymmetric light distribution for area lighting. Product... more
All information about the product:
"LEDVANCE FLOODLIGHT PERFORMANCE ASYM 45x140 290 W 3000 K BK"
Floodlight with very wide beam, asymmetric light distribution for area lighting. Product features:
- High luminous efficacy: up to 140 lm/W
- Asymmetric light distribution for area lighting
- Angled (45°) mounting bracket and up to 180° tilting
- Type of protection: IP66
- Impact resistance: IK08
- Ambient temperature in operation: -30…+50 °C
- High surge protection: up to 10 kV (L/N-PE), 6 kV (L-N)
- Integrated breather for preventing condensation inside the luminaire
- Connection via 2 m cable, wiring required
- Energy savings of up to 90 % compared to halogen lamp floodlights
- Energy savings of up to 45 % compared to luminaires that use conventional discharge lamps
- Bright, robust and durable
- Homogeneous luminance distribution and reduced glare
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
- Key hole to ensure ease of installation
- 5 years guarantee
- Direct replacement for luminaires using HID lamps
- Outdoor use (IP66)
- Parking
- Public areas
- Industry
- Sports facilities
- Parking lots, industrial roads
- D-sign according to EN 60598-2-24 for fire-risk commercial unit, f
- e
- by accumulation of dust
| Length: | 567 mm |
| Width: | 465 mm |
| Height: | 97 mm |
| Net weight: | 9500 g |
| LED type: | SMD |
| Nominal voltage: | 240 V |
| Nominal current: | 1420 mA |
| Rated power: | 290 W |
| Energy consumption: | 290 kWh/1000 |
| Colour temperature: | 3000 K |
| Light colour: | Warm White |
| Beam angle: | 140 ° |
| Luminous flux: | 35300 lm |
| Colour rendering: | 80 CRI |
| Lifetime: | 50000 h |
| Switching cycles: | 100000 |
| Energy efficiency class: | E |
| Dimmable: | No |
| Material: | Aluminum |
| Colour: | Black |
| EAN: | 4058075353732 |
