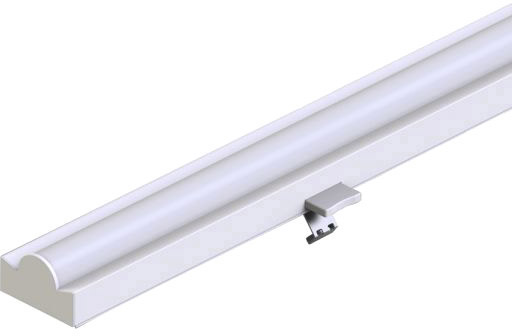

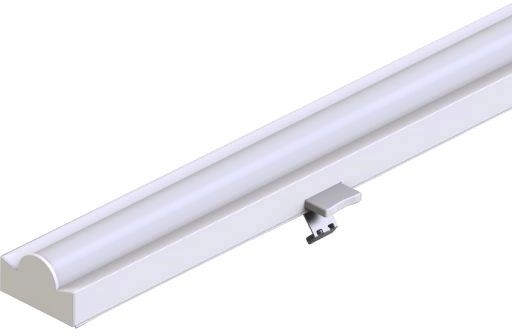

ISOLED FastFix LED linear system R module 1.5m 25-75W, 4000K, 120°, 1-10V dimmable
€165.81 *
Availability:
Currently not available
Currently not available
Item number: 111007215
EAN: 9009377070556
MPN: 114070
FastFix LED linear system R module 1.5m 25-75W, 4000K, 120°, 1-10V dimmable Length: 1437mm... more
All information about the product:
"ISOLED FastFix LED linear system R module 1.5m 25-75W, 4000K, 120°, 1-10V dimmable"
FastFix LED linear system R module 1.5m 25-75W, 4000K, 120°, 1-10V dimmable

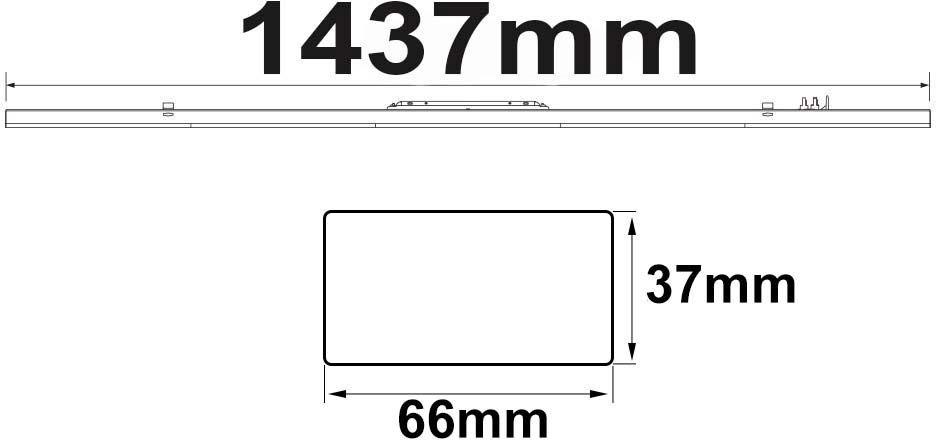

| Length: | 1437mm |
| Width: | 66mm |
| Height: | 37mm |
| Net weight: | 1490g |
| Nominal voltage: | 180-265V AC |
| Nominal power: | 74,6W |
| Rated power: | 75W |
| Colour temperature: | 4000K |

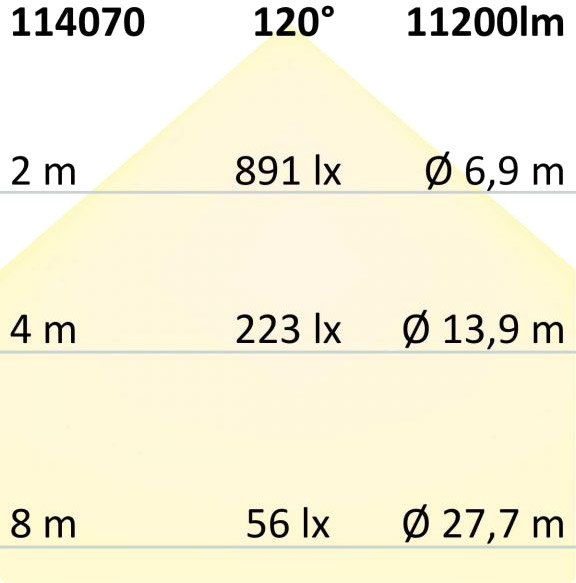

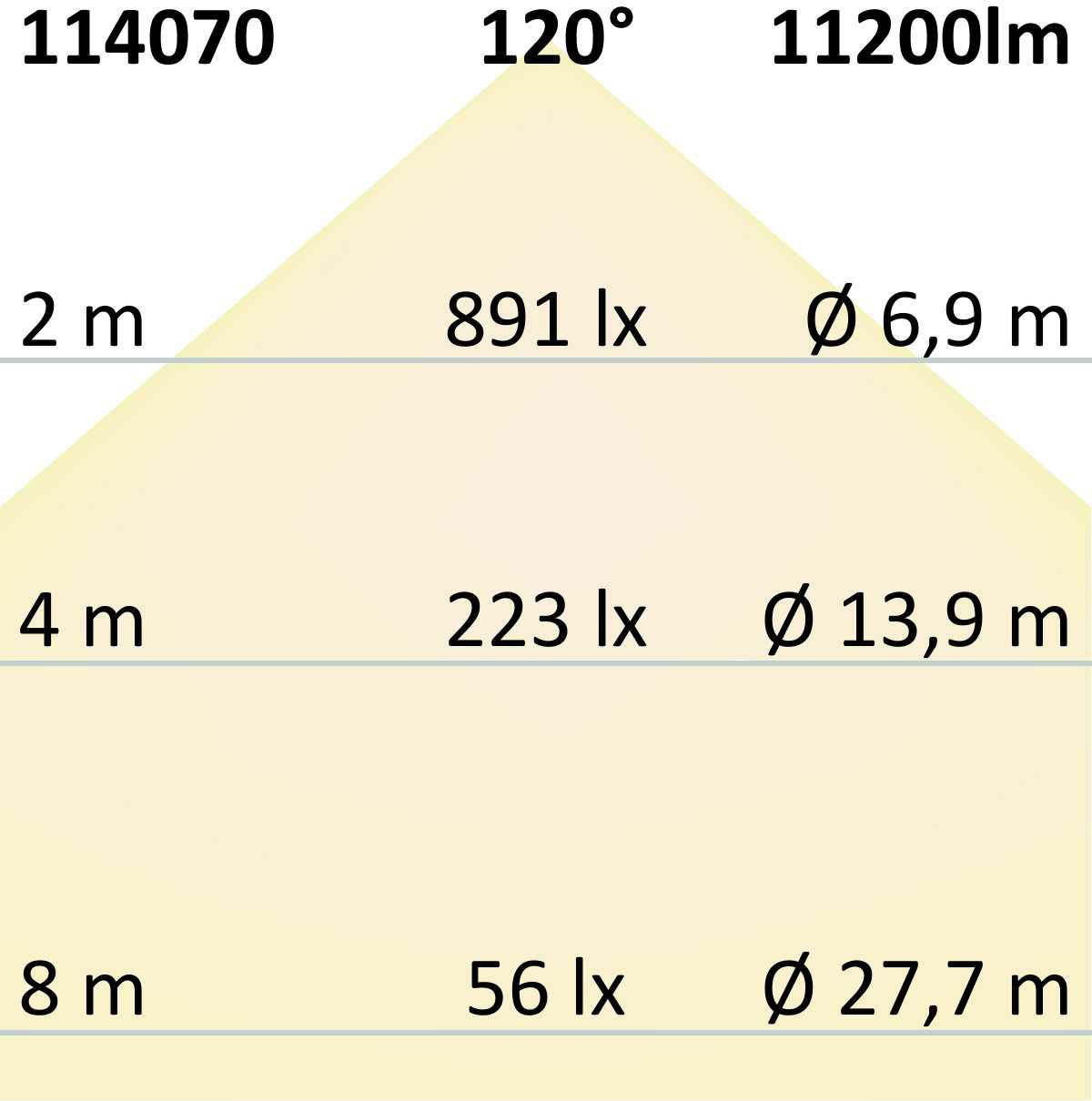

| Beam angle: | 120° |
| Luminous flux: | 11200lm |
| Light intensity: | 3565cd |
| Colour rendering: | > 83 CRI |
| Lifetime: | 36000h |
| Protection class: | IP40 |
| Energy efficiency class: | A++ |

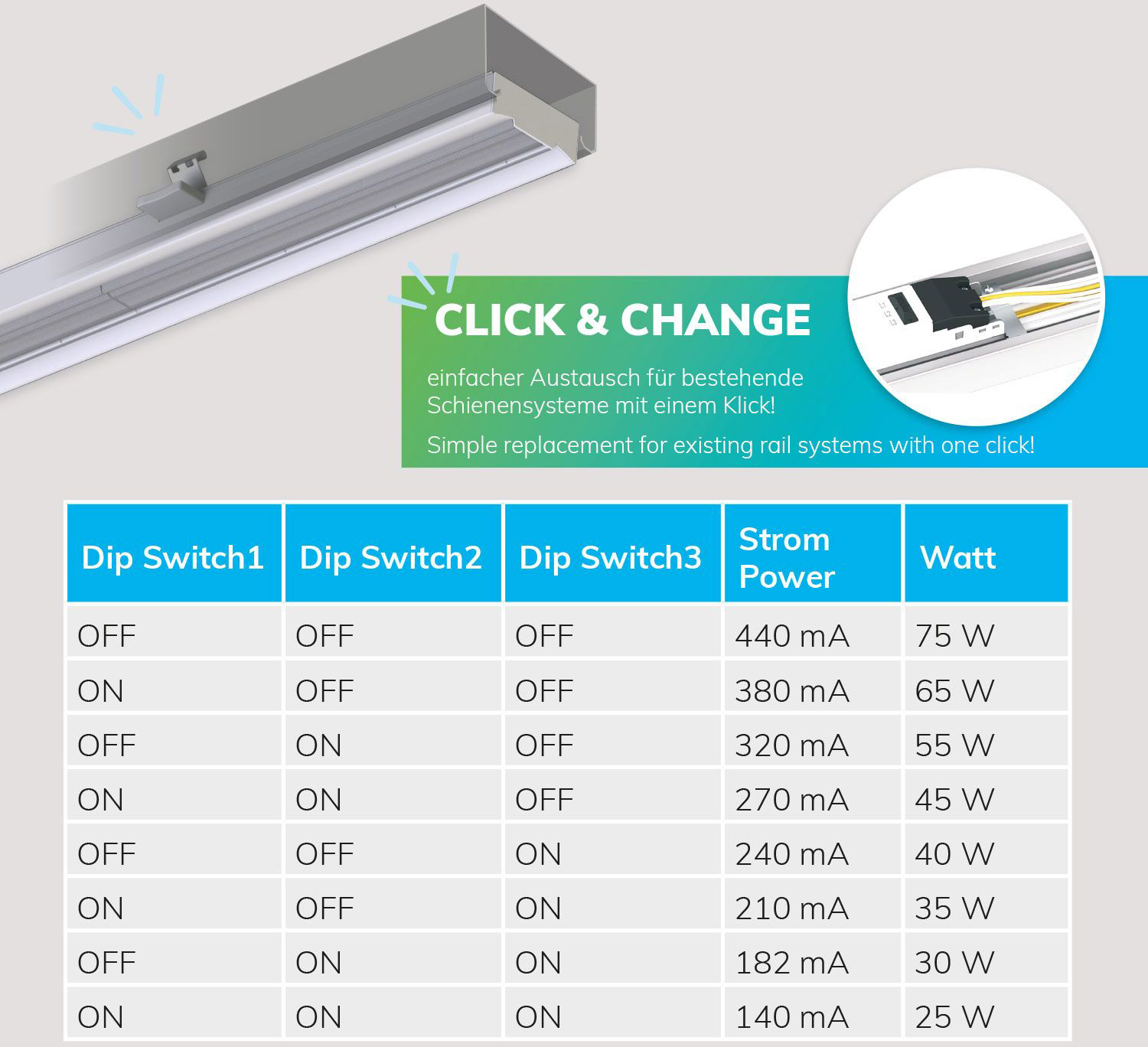

| Dimmable: | Yes permanent power regulation by a jumper on the back of the power supply included or variable with a 1-10V control signal (e.g. item no.112711 SysOne wireless/push dimmer), totally flicker-free with 100% light output |
| Material: | Plastic |
| Incl. illuminant: | No |

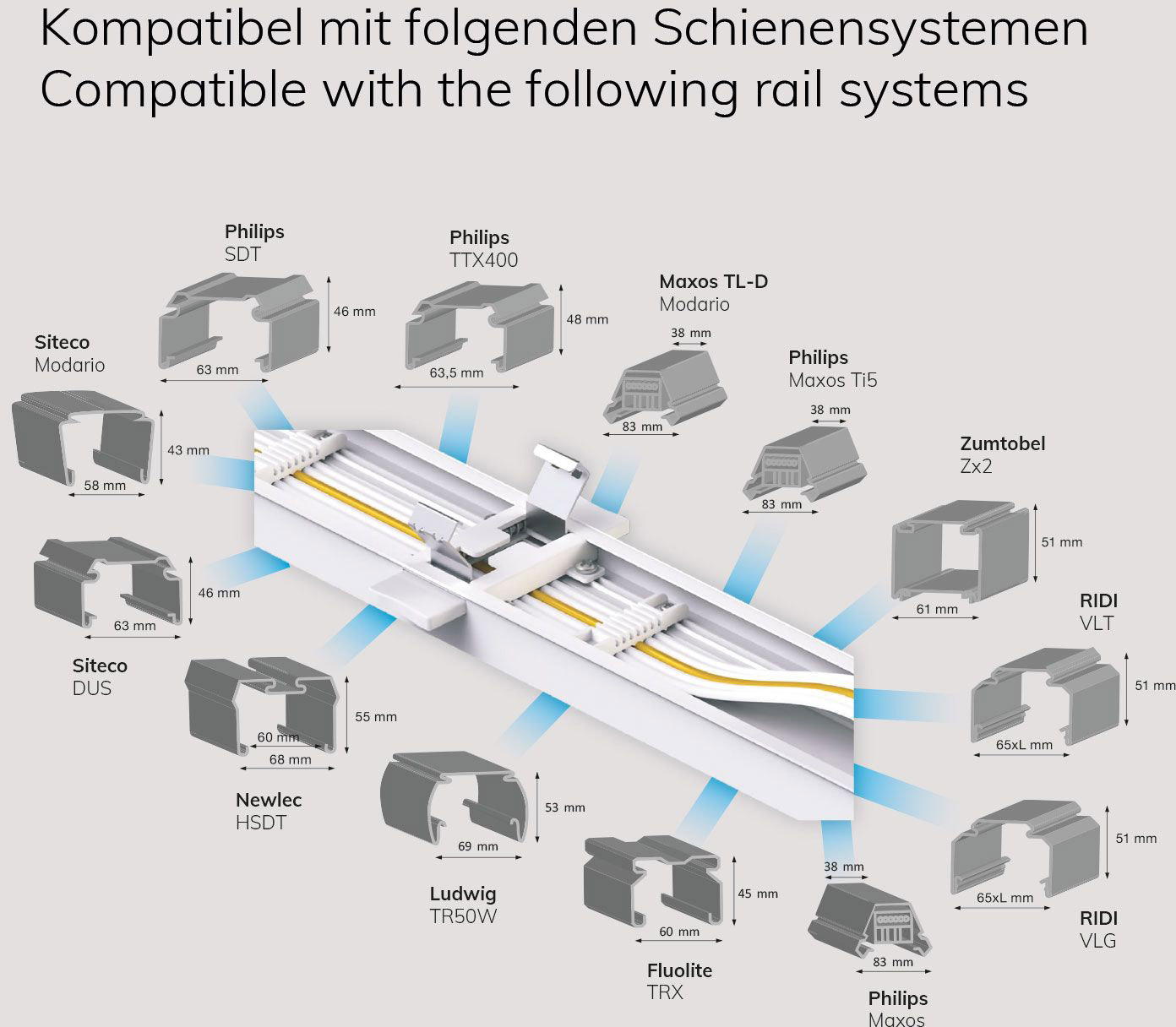

| Special features: | 3 phase switchable, inc. five pre-installed and interchangeable optical lenses and LED boards each with 33 high-performance chips, quick locking for securing in the bar fitting Product No. 112955/112956 |
