PHILIPS CoreLine Highbay Gen5, 134 W, 20000 lm, 4000 K, DALI, Narrow beam, IP65, IK08

NEW

Preview: PHILIPS CoreLine Highbay Gen5, 134 W, 20000 lm, 4000 K, DALI, Enger Lichtkegel, IP65, IK08

PHILIPS CoreLine Highbay Gen5, 134 W, 20000 lm, 4000 K, DALI, Enger Lichtkegel, IP65, IK08

€586.08 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Near-term available
Delivery time: approx. 1 week

Delivery time: approx. 1 week

Item number: 100427880

EAN: 8719514955721

MPN: 911401629808

NEW

PHILIPS CoreLine Highbay Gen5, 134 W, 20000 lm, 4000 K, DALI, Narrow beam, IP65, IK08 Aluminum... more

Back to the overview

All information about the product:

"PHILIPS CoreLine Highbay Gen5, 134 W, 20000 lm, 4000 K, DALI, Narrow beam, IP65, IK08"

PHILIPS CoreLine Highbay Gen5, 134 W, 20000 lm, 4000 K, DALI, Narrow beam, IP65, IK08

Aluminum die-cast, Grey, Power supply unit with DALI interface, 20000 lm, 134 W, 149 lm/W, 4000 K, (0.385, 0.380) SDCM5, Narrow beam, Clear, Polycarbonate, IP65 | Dust penetration-protected, jet-proof, IK08 | 5 J vandal-protected, Safety class I, Connection unit 3-pole

Technical data:

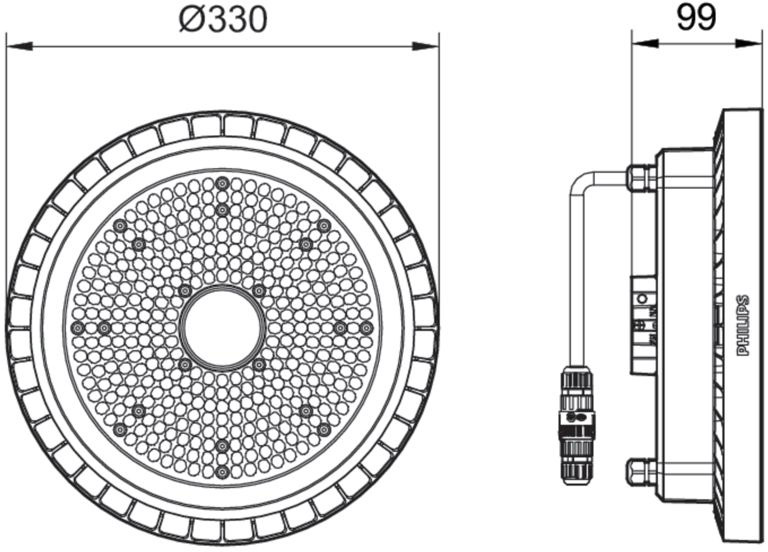

Length:	330 mm
Width:	330 mm
Height:	99 mm
Diameter:	330 mm
Nominal voltage:	220-240 V
Nominal power:	134 W
Nominal current:	580-700 mA
Energy consumption:	134 kWh/1000
Colour temperature:	4000 K
Light colour:	White
Beam angle:	41-80° - Wide beam
Luminous flux:	20000 lm
Luminous efficacy:	149 lm/W
Colour rendering:	80-89 CRI
Dimmable:	Yes
Lifetime:	75000 h
Protection class:	IP65
Energy efficiency class:	C
Light source type:	LED not exchangeable
Material:	Aluminium
Colour:	Grey
Incl. illuminant:	No
Mounting method:	Pendant
Type of control gear:	LED operating device current-controlled
Exchangeable control gear:	yes
With control gear:	yes
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Light distributor:	Focal lens
Light distribution:	Symmetric
Reflector:	None
Colour consistency (McAdam ellipse):	SDCM5
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq):	85%
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq):	75%
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq):	5%
Failure rate at median useful life of 100,000 h at 25 °C ambient (tq):	10%
Impact strength:	IK08
Ball-proof:	no
Suitable for auxiliary lamp:	no
Protection class according to IEC 61140:	I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:	no
Rated ambient temperature according to IEC 62722-2-1:	35°C
Emergency power supply integrated:	no
Suitable for emergency lighting:	no
Filament test according to IEC 60695-2-11:	650 °C - 30 s
Suitable for lamp power:	147,4 W
Total harmonic distortion:	0.15
Photobiological safety according to EN 62471:	RG0
Power factor:	0.95
Constant light output (CLO):	no
Colour of light adjustable:	No
Beam angle adjustable:	No
Luminous flux adjustable:	No

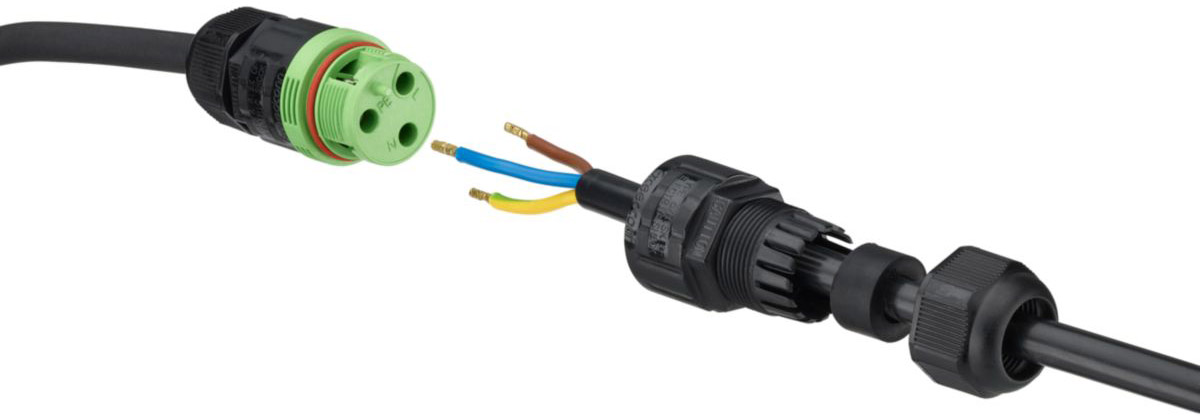

Type of wiring:	Ending
Number of poles:	3
Conductor cross section:	1mm²
With protective cover:	yes
Max. number of luminaires per miniature circuit breaker B16 (MCB):	8
Operation by Bluetooth:	no
Max. number of luminaires per miniature circuit breaker C16 (MCB):	13
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C):	no
Voltage type:	AC
