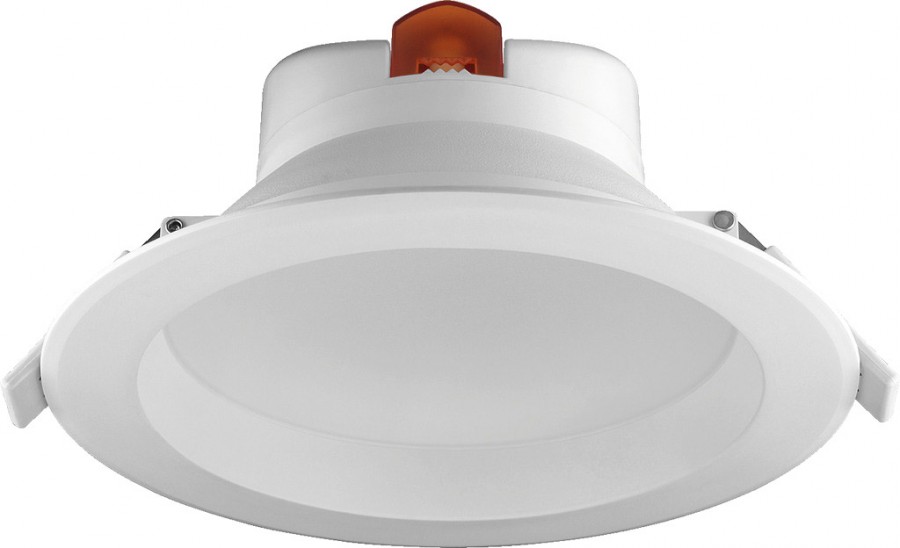

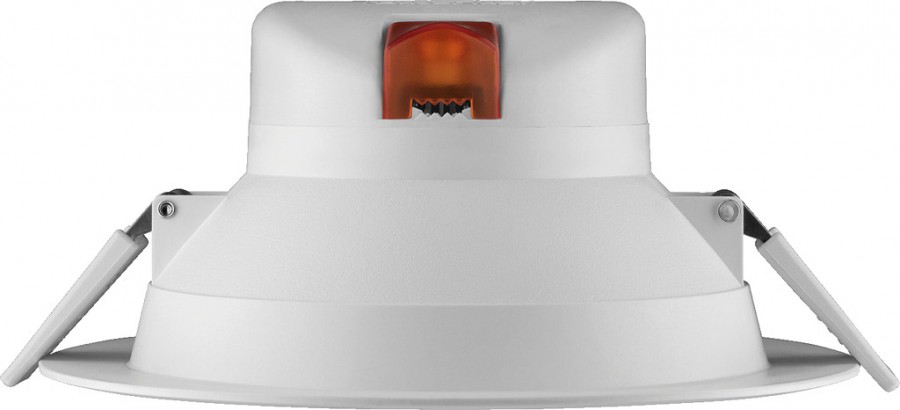

MONACOR LDD-17/NWS LED downlights, 17 W
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 250135150
EAN: 4007754253801
LED downlights, 17 W Neutral white (NWS) or warm white (WWS) Beam angle: 90° White... more
All information about the product:
"MONACOR LDD-17/NWS LED downlights, 17 W"
LED downlights, 17 W
- Neutral white (NWS) or warm white (WWS)
- Beam angle: 90°
- White plastic housing with protective front cover

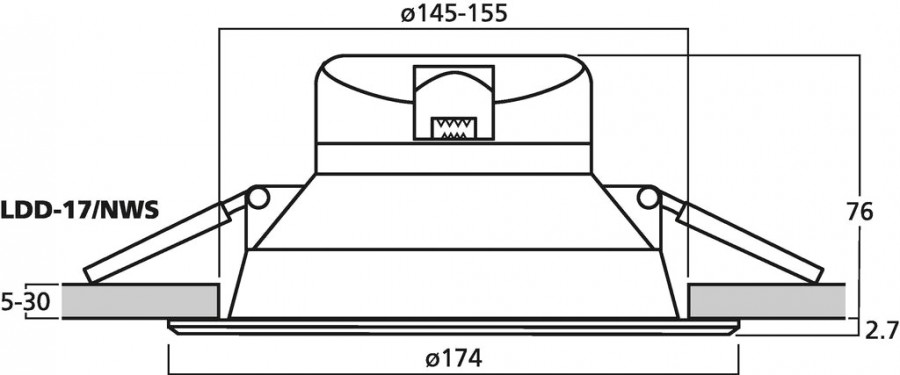

- For installation into ceiling cutouts: Ø 145-155 mm
- For a ceiling thickness from 5 to 30 mm
- Quick mounting facility
- Integrated driver
- Can be connected directly to the 230 V mains
- Not dimmable
- Suitable for integrating into lighting systems complying with EN 12464 and EN 12665 (DIN 5035)
| Power rating: | 17 W |
| Luminous colour: | neutral white |
| Colour temperature: | 4,000 K |
| Luminous flux: | 1,500 lm |
| Dimmable: | no |
| Beam angle: | 90° |
| Colour rendering index (Ra): | > 80 |
| Rated life: | 30,000 h |
| Switching cycles: | > 15,000 |
| Protective class: | IP44 |
| Power supply: | ˜ 230 V/50 Hz/130 mA/17 W |
| Operating voltage: | ~ 230 V |
| Power consumption, operation: | 17 W |
| Current consumption: | 130 mA |
| Mounting cutout: | Ø 150 mm |
| Mounting depth: | 76 mm |
| Dimensions: | Ø 174 mm x 79 mm |
| Width: | Ø 174 mm |
| Depth: | 79 mm |
| Weight: | 0.284 kg |
