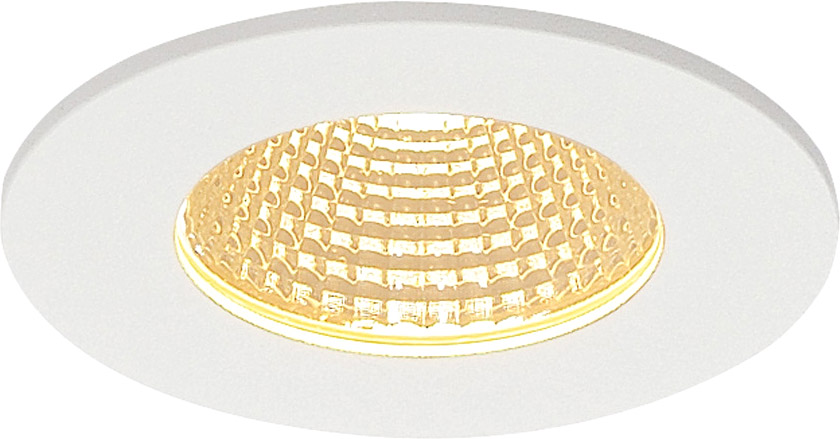

SLV PATTA-I recessed fitting, LED, 3000K, round, matt white, 38°, incl. driver
€59.35 *
Availability:
Delivery time: 5-7 days
Delivery time: approx. 5-7 days
Item number: 110024835
EAN: 4024163151375
The innovative PATTA I recessed fitting is suitable for ceiling thicknesses of up to 25 mm. Rated... more
All information about the product:
"SLV PATTA-I recessed fitting, LED, 3000K, round, matt white, 38°, incl. driver"

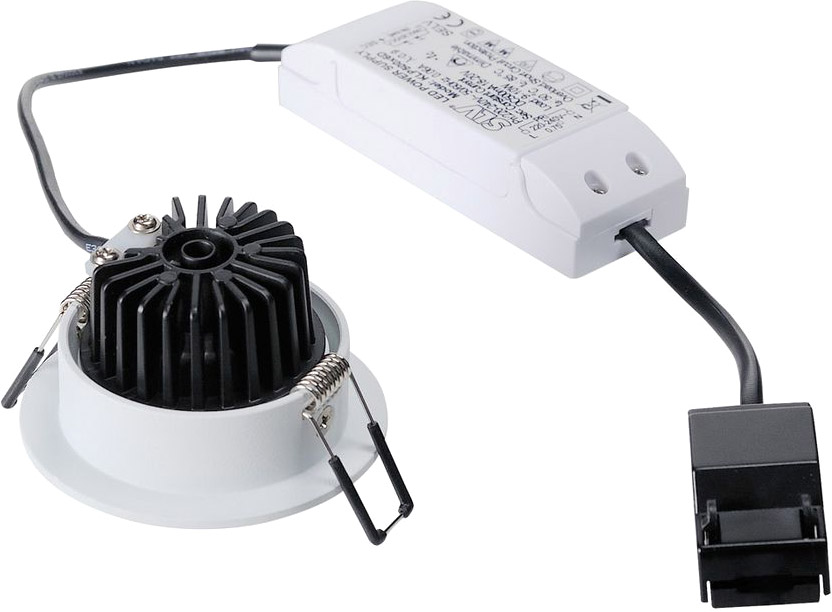

The innovative PATTA I recessed fitting is suitable for ceiling thicknesses of up to 25 mm. Rated IP65 it can be used outdoors or in damp areas. This set is available in matt black, matt white, or brushed aluminium as well as in round or square form. Equipped with a powerful, warm white premium COB LED in a rigid mount, as well as the dimmable LED driver included in the scope of supply, the set can be used in any lighting situation. The electrical connection is made directly to the 230V mains supply.Technical data:
Product name: | PATTA-I |
Colour: | white |
Material: | Aluminium |
electrical power: | 11 W |
Lumen/wattage: | 82.73 lm/W |
Luminous Flux: | 910 lm |
Colour temperature: | 3000 Kelvin |

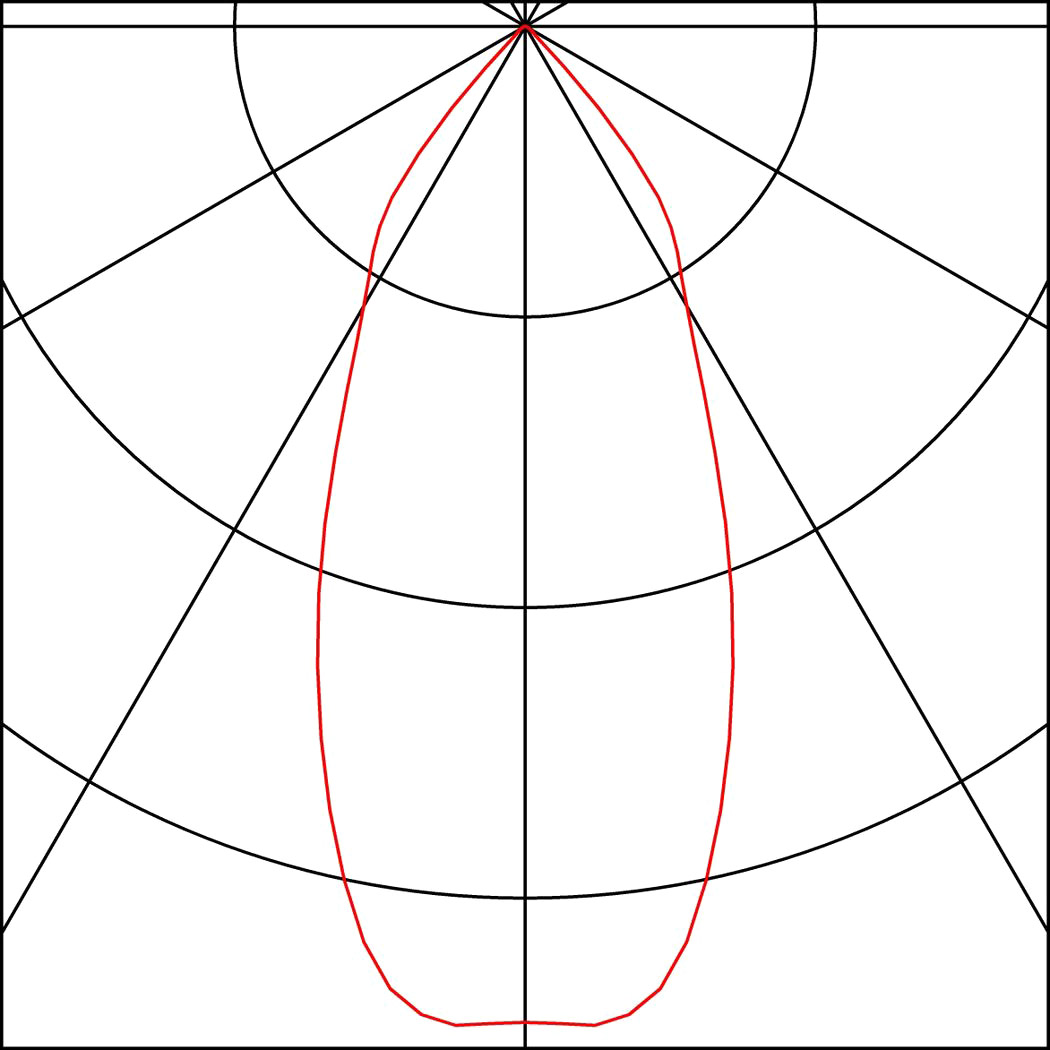

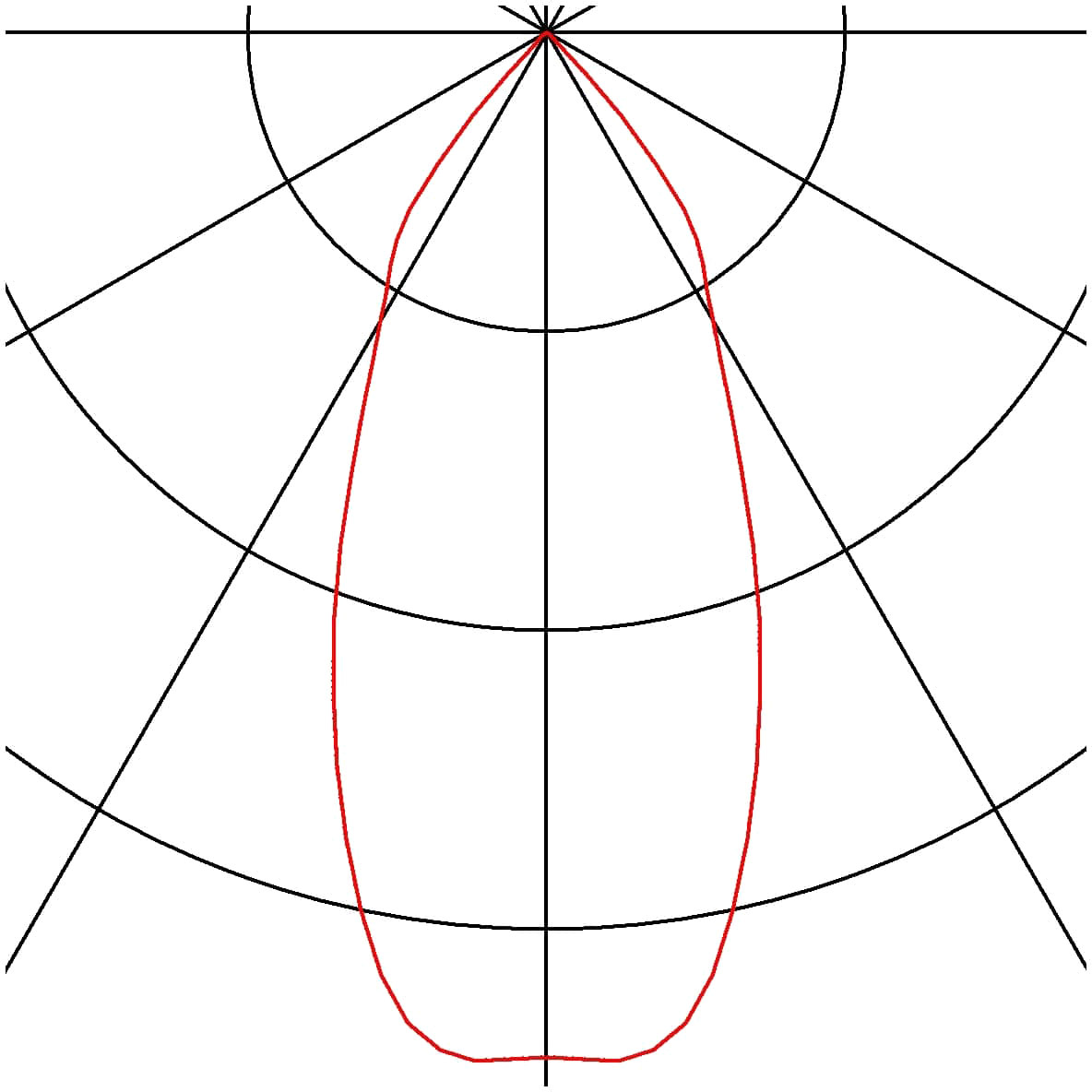

Half beam angle: | 38 ° |
CRI: | 80 |
Dimmable: | Yes |
Dimming technology: | Leading edge |
Protection category: | II |
IP Code: | IP 20 / IP 65 |
Assembly: | Recessed |
Assembly details: | Ceiling |
Shape: | round |

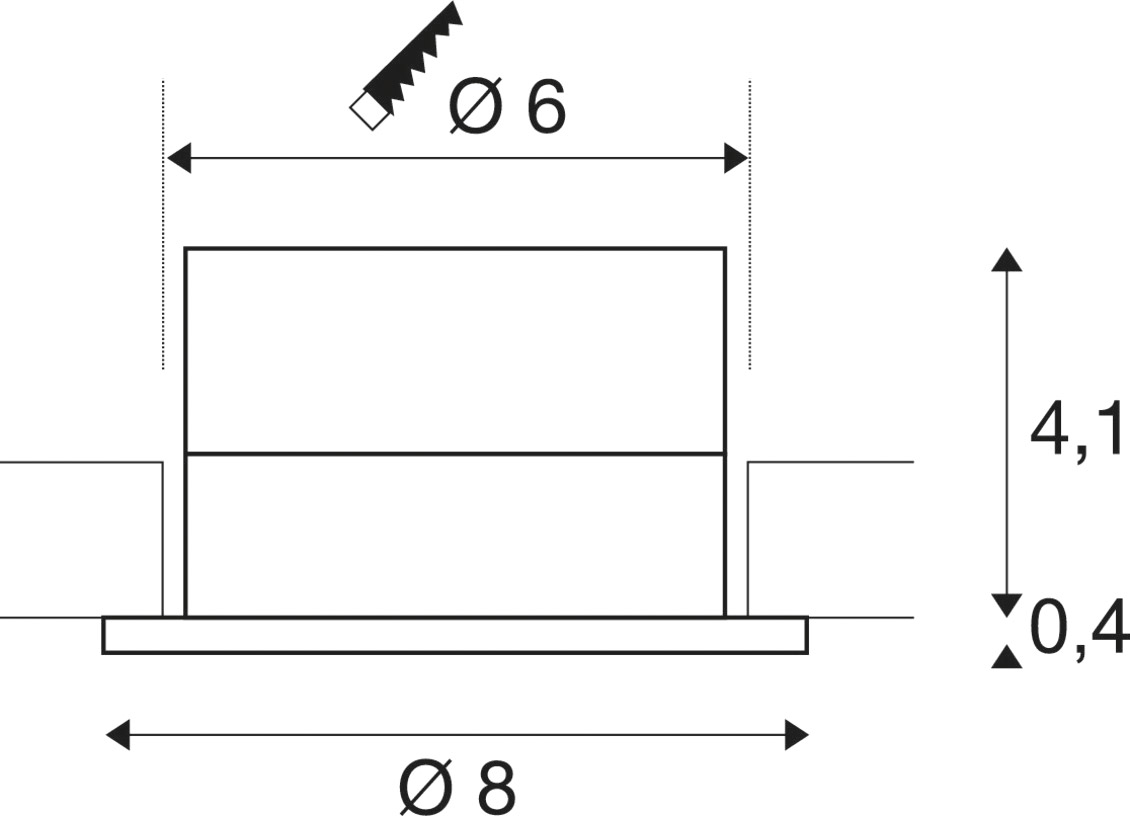

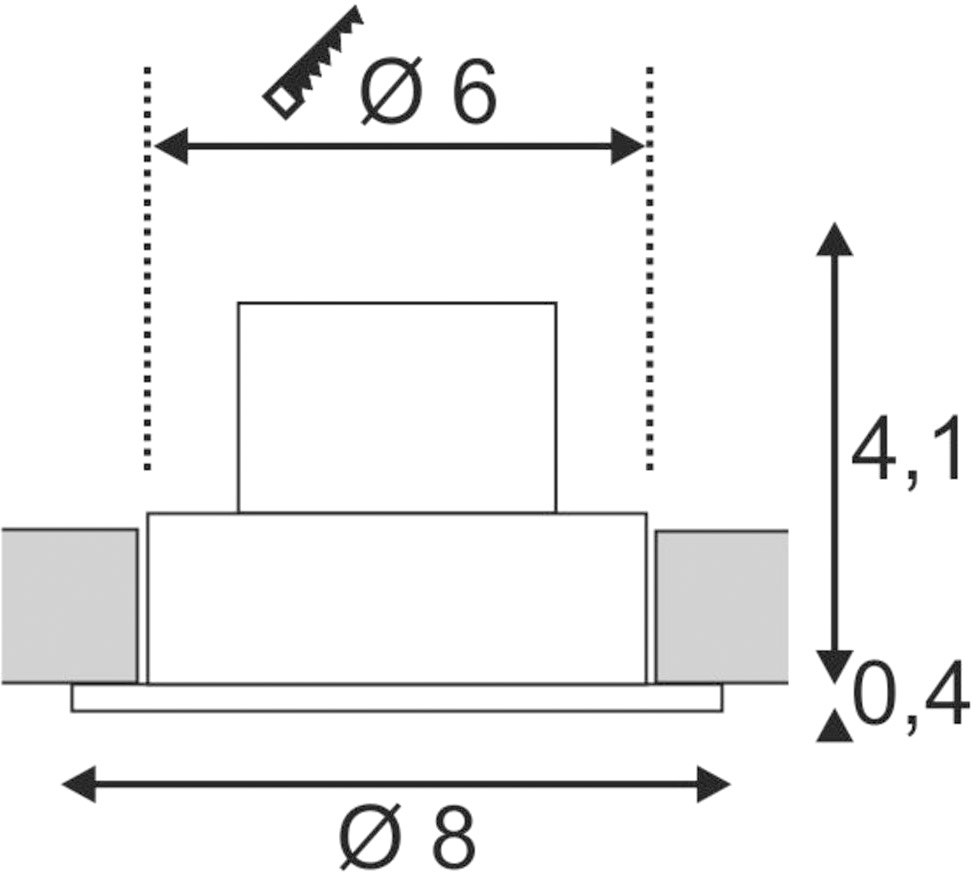

Height: | 4.5 cm |
Diameter: | 8 cm |
Shape of cut-out: | round |
Installation depth: | 6 cm |
Colour consistency: | 3 SDCM |
Service life: | 40000 h |
Primary nominal voltage: | 220-240V ~50/60Hz |
Secondary power / secondary voltage: | 500mA |
Net weight: | 0.25 kg |
Rated value luminous efficacy: | 82.73 lm/W |
Weighted consumption: | 11 kWh/1.000h |
LXXBXX data: | L70B50 |
