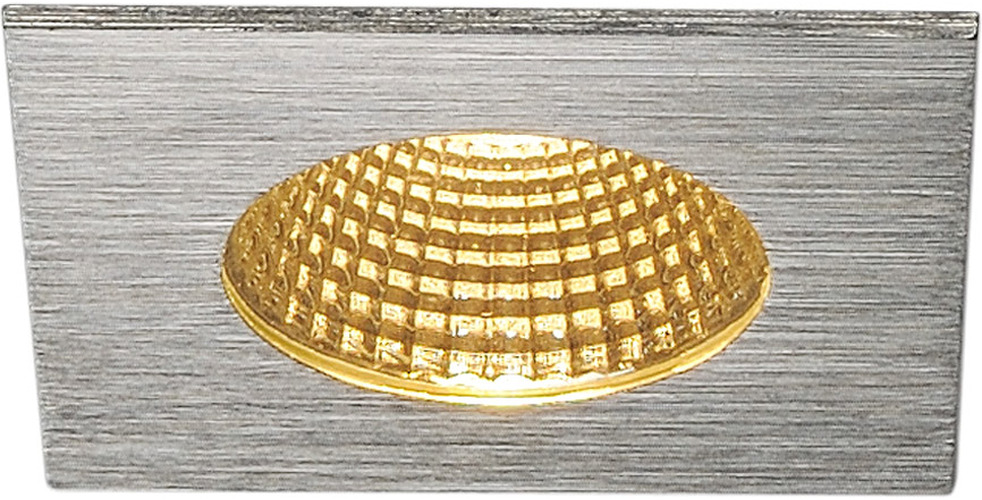

SLV PATTA-I, recessed fitting, LED, 3000K, square, brushed aluminium, 38°, incl. driver

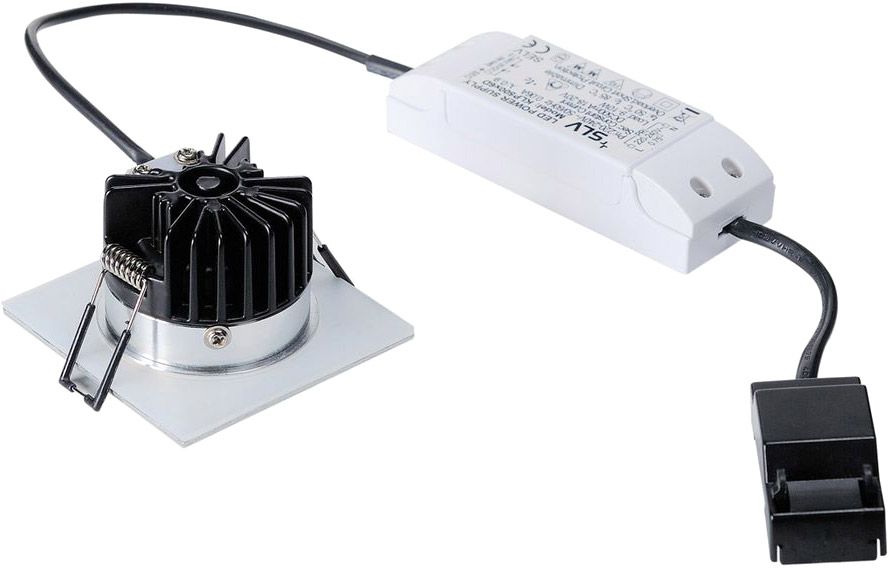

The innovative PATTA I recessed fitting is suitable for ceiling thicknesses of up to 25 mm. Rated IP65 it can be used outdoors or in damp areas. This set is available in matt black, matt white, or brushed aluminium as well as in round or square form. Equipped with a powerful, warm white premium COB LED in a rigid mount, as well as the dimmable LED driver included in the scope of supply, the set can be used in any lighting situation. The electrical connection is made directly to the 230V mains supply.Technical data:

Product name:	PATTA-I
Colour:	aluminium
Material:	Aluminium
electrical power:	11 W
Lumen/wattage:	82.73 lm/W
Luminous Flux:	910 lm
Colour temperature:	3000 Kelvin
Half beam angle:	38 °
CRI:	80
Dimmable:	Yes
Dimming technology:	Leading edge
Protection category:	II
IP Code:	IP 20 / IP 65
Assembly:	Recessed
Assembly details:	Ceiling
Shape:	square

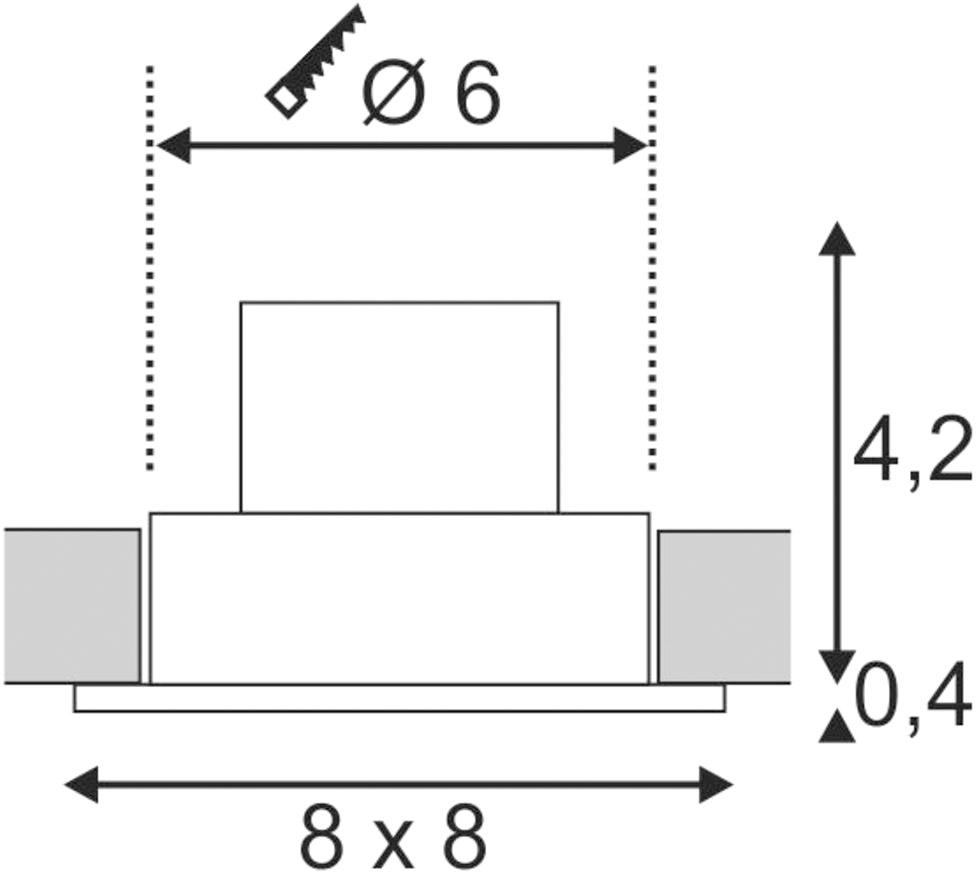

Length:	8 cm
Width:	8 cm
Height:	4.5 cm
Shape of cut-out:	round
Installation depth:	6 cm
Colour consistency:	3 SDCM
Service life:	40000 h
Primary nominal voltage:	220-240V ~50/60Hz
Secondary power / secondary voltage:	500mA
Net weight:	0.26 kg
Rated value luminous efficacy:	82.73 lm/W
Weighted consumption:	11 kWh/1.000h
LXXBXX data:	L70B50
