SLV PATTA-F, recessed fitting, LED, 3000K, square, white, 38°, incl. driver
€66.93 *
Availability:
Delivery time: 5-7 days
Delivery time: approx. 5-7 days
Item number: 110024875
EAN: 4024163151450
The innovative PATTA F recessed fitting is suitable for ceiling thicknesses of up to 20 mm. Rated... more
All information about the product:
"SLV PATTA-F, recessed fitting, LED, 3000K, square, white, 38°, incl. driver"

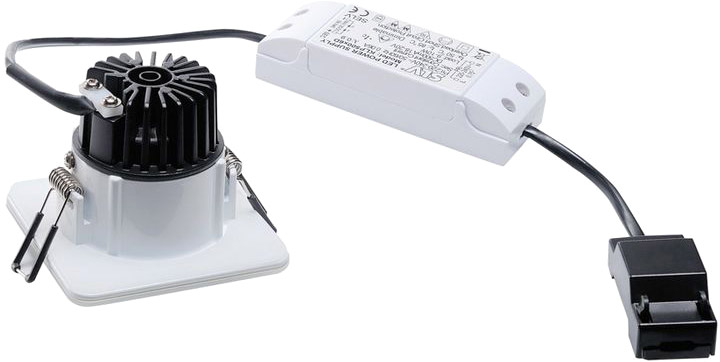

The innovative PATTA F recessed fitting is suitable for ceiling thicknesses of up to 20 mm. Rated IP65 it can be used outdoors or in damp areas. This set is available in black, white, or brushed aluminium as well as in round or square form. Equipped with a powerful, warm white premium COB LED in a tiltable mount, as well as dimmable LED driver included in the scope of supply, the set can be used in any lighting situation. The electrical connection is made directly to the 230V mains supply.Technical data:
Product name: | PATTA-F |
Colour: | white |
Material: | Aluminium |
electrical power: | 11 W |
Lumen/wattage: | 78.18 lm/W |
Luminous Flux: | 860 lm |
Colour temperature: | 3000 Kelvin |

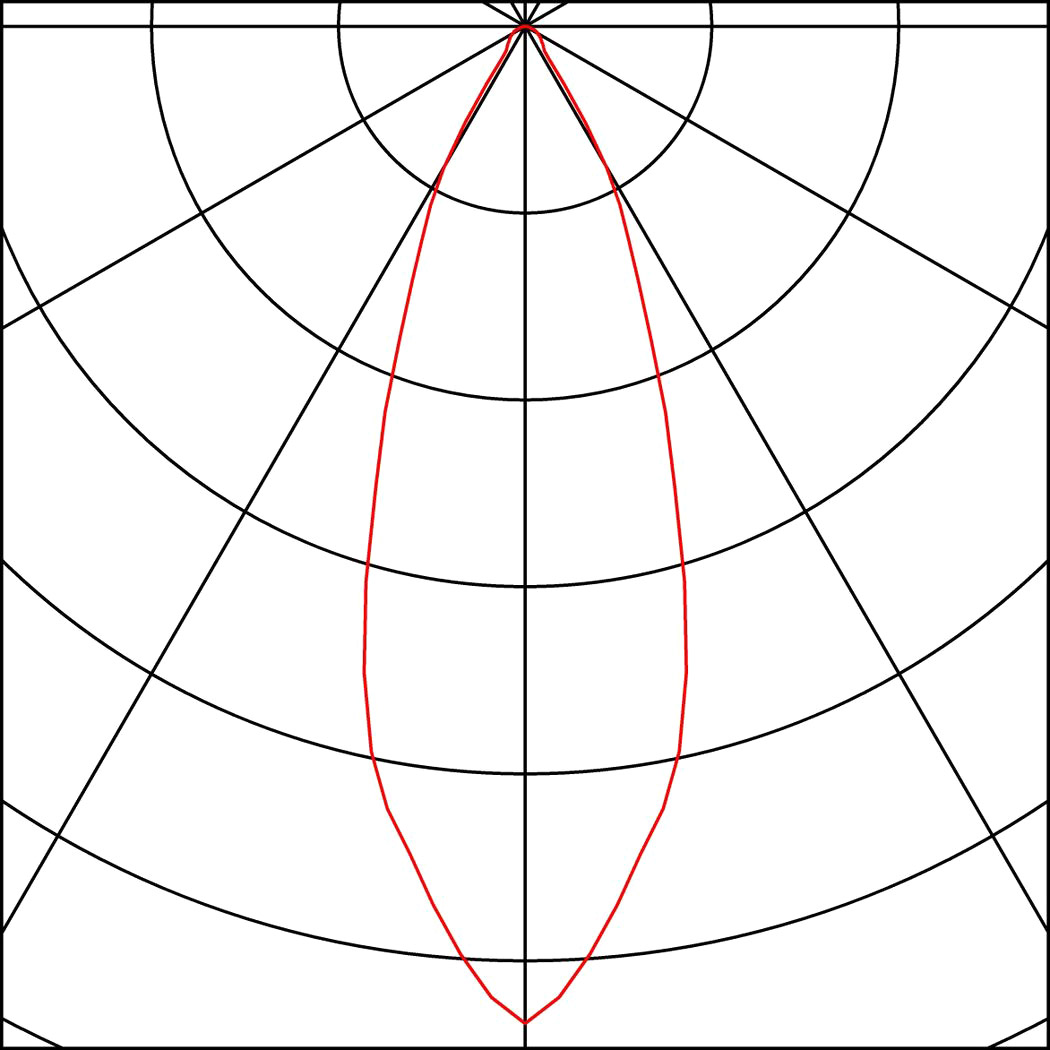

Half beam angle: | 38 ° |
CRI: | 80 |
Dimmable: | Yes |
Dimming technology: | Leading edge |
Protection category: | II |
IP Code: | IP 20 / IP 65 |
Assembly: | Recessed |
Assembly details: | Ceiling |
Shape: | square |

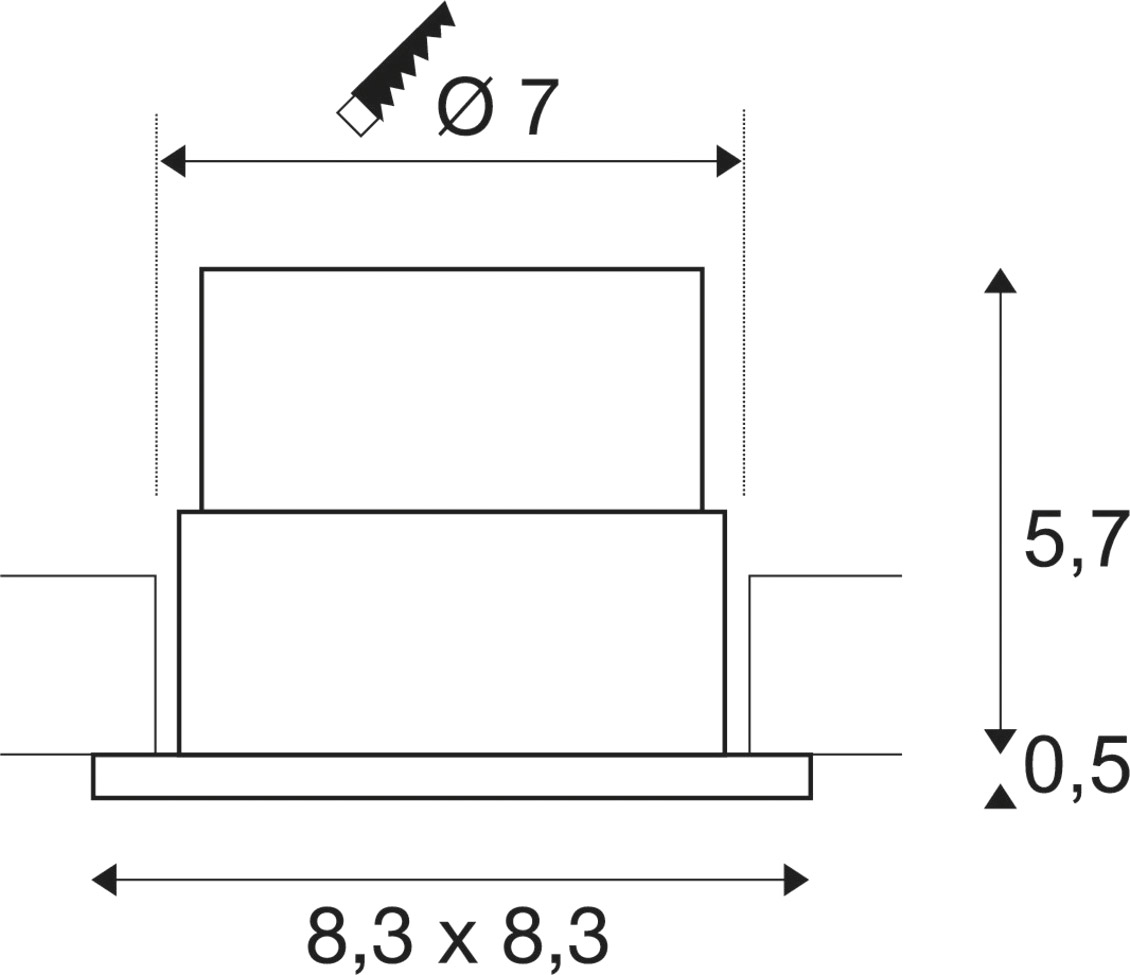

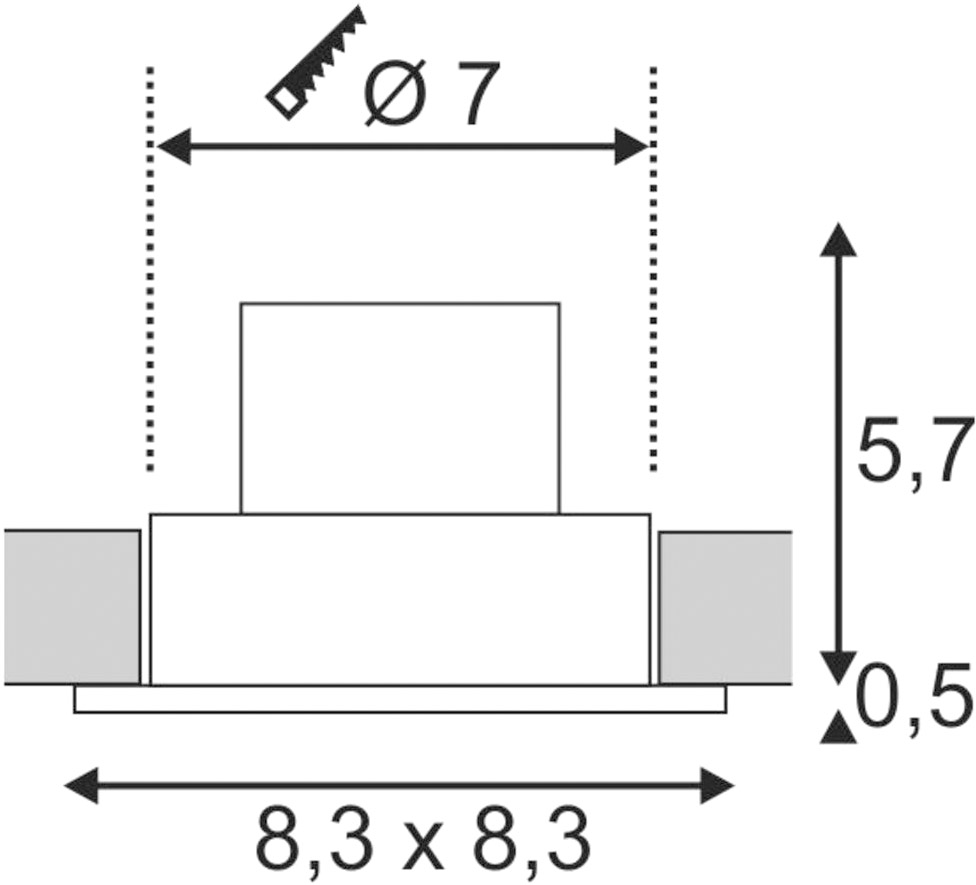

Length: | 8.3 cm |
Width: | 8.3 cm |
Height: | 6.2 cm |
Shape of cut-out: | round |
Installation depth: | 6 cm |
Colour consistency: | 3 SDCM |
Service life: | 40000 h |
Primary nominal voltage: | 220-240V ~50/60Hz |
Secondary power / secondary voltage: | 500mA |
Net weight: | 0.34 kg |
Rated value luminous efficacy: | 78.18 lm/W |
Weighted consumption: | 11 kWh/1.000h |
LXXBXX data: | L70B50 |
Further links
- Do you have any questions concerning this product?
- Further products by SLV
-
Information about the manufacturerObligation to provide information on product safety (GPSR)Manufacturer:SLV GmbH
Daimlerstraße 21-23
DE-52531 Übach-Palenberg
info@slv.de -
Safety instructions and warningsSafety instructions and warnings (GPSR)Specific safety instructions that apply to the product can be found in the operating instructions for the product.
We will be happy to advise you!
You can reach us:
Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Downloads for the product:
"SLV PATTA-F, recessed fitting, LED, 3000K, square, white, 38°, incl. driver"
Document type | File size | |
Operating instructions
(0.47 MB)
|
0.47 MB | |
Data sheet
(0.19 MB)
|
0.19 MB | |
Certificate
(0.36 MB)
|
0.36 MB | |
Information about the product
(0.60 MB)
|
0.60 MB | |
Information about the product
(0.05 MB)
|
0.05 MB | |
Information about the product
(0.05 MB)
|
0.05 MB | |
EPREL-Product data sheet
(0.22 MB)
|
0.22 MB | |
Information about the product
(0.41 MB)
|
0.41 MB |
