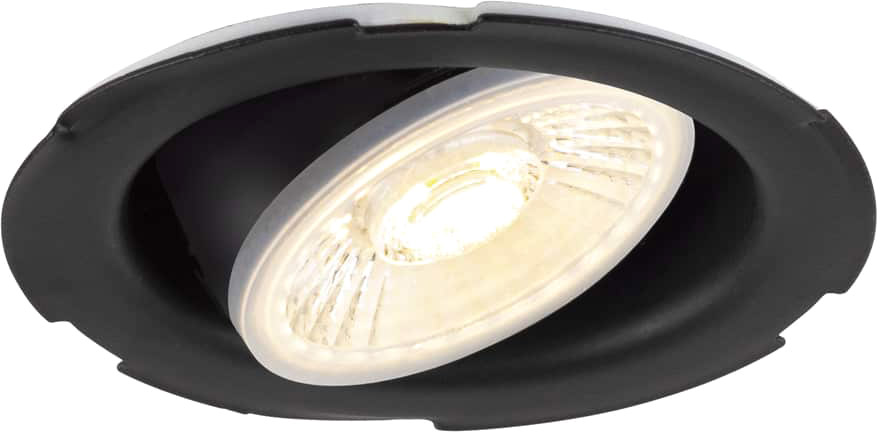

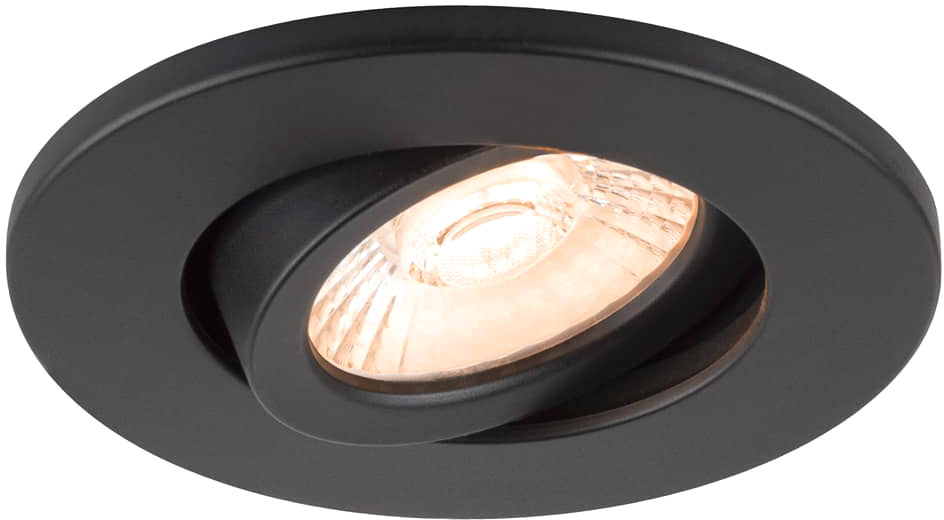

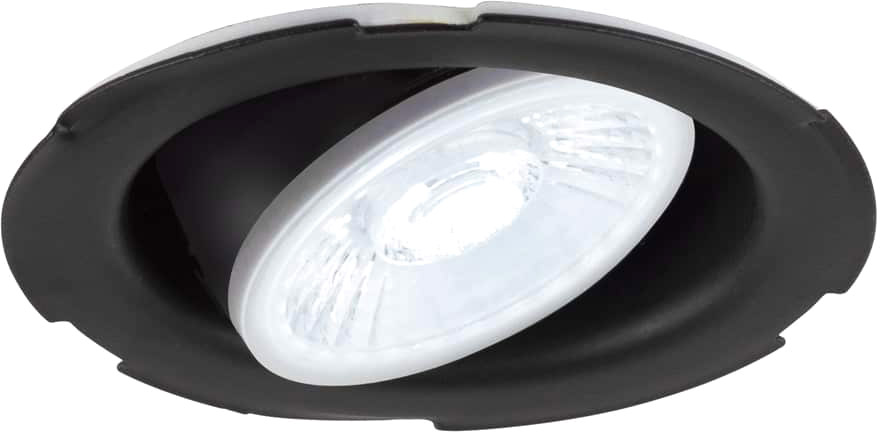

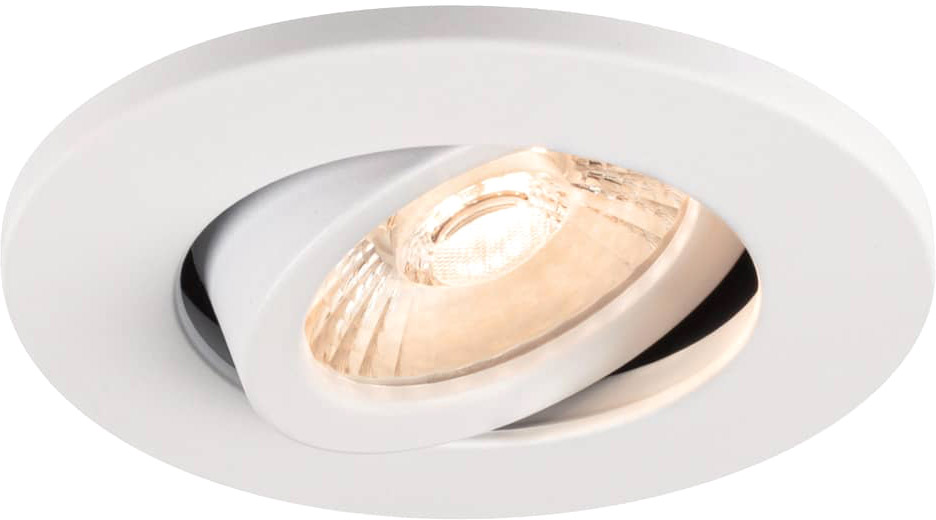

SLV UNIVERSAL DOWNLIGHT MOVE PHASE recessed light, IP20, pivoting, 5/8W, 2700/3000/4000/6500K
This article is currently not available.
€22.50 *
incl. tax,
plus shipping costs
Availability:
Currently not available
Currently not available
Item number: 110056840
EAN: 4024163273046
MPN: 1007090
Discreet and universal: the UNIVERSAL DOWNLIGHT MOVE PHASE recessed light creates targeted... more
All information about the product:
"SLV UNIVERSAL DOWNLIGHT MOVE PHASE recessed light, IP20, pivoting, 5/8W, 2700/3000/4000/6500K"
Discreet and universal: the UNIVERSAL DOWNLIGHT MOVE PHASE recessed light creates targeted lighting thanks to its narrow beam angle of 38 degrees. It can be swivelled to target specific areas that need illumination. A wide range of colour temperature options (2700/3000/4000/6000K) can be selected via the CCT switch before installation. Natural colour reproduction is achieved with a CRI of over 90. And the Quick Connector Box ensures a quick and easy installation. You can also use the separately available decorative ring, which comes in white, black, gold or chrome.Technical data:
Product name: | UNIVERSAL DOWNLIGHT |
Colour: | black |
Material: | steel |
electrical power: | 8 W |
Lumen/wattage: | 70 lm/W |
Luminous Flux: | 680 lm |
Half beam angle: | 38 ° |
CRI: | 90 |
UGR =: | 28 |
Dimmable: | Yes |
Dimming technology: | trailing edge |
Protection category: | II |
IP Code: | IP 20 |
Assembly: | Recessed |
Assembly details: | Ceiling |
Shape: | round |
Height: | 6.4 cm |
Diameter: | 8.5 cm |
Shape of cut-out: | round |
Installation diameter: | 6.8 cm |
Installation depth: | 7.3 cm |
Rotating or tilting: | tiltable |
Vertical tilting range: | 30 ° |
Shock resistance category: | IK02 |
Shock resistance: | 0.2 joule |
Primary nominal voltage: | 220-240V ~50/60Hz |
Secondary power / secondary voltage: | 60/90mA |
Ambient temperature: | -20 - 40 °C |
Energy efficiency class: | F |
Net weight: | 0.27 kg |
Rated value luminous efficacy: | 70 lm/W |
Weighted consumption: | 8 kWh/1.000h |
LXXBXX data: | L70B50 |
Service life: | 35000 h |
Operating efficiency (LOR): | 90% |
Inrush current height: | 3 |
Duration inrush current: | 30 |
Further links
- Do you have any questions concerning this product?
- Further products by SLV
-
Information about the manufacturerObligation to provide information on product safety (GPSR)Manufacturer:SLV GmbH
Daimlerstraße 21-23
DE-52531 Übach-Palenberg
info@slv.de -
Safety instructions and warningsSafety instructions and warnings (GPSR)Specific safety instructions that apply to the product can be found in the operating instructions for the product.
We will be happy to advise you!
You can reach us:
Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Downloads for the product:
"SLV UNIVERSAL DOWNLIGHT MOVE PHASE recessed light, IP20, pivoting, 5/8W, 2700/3000/4000/6500K"
Document type | File size | |
Operating instructions
(0.41 MB)
|
0.41 MB | |
Data sheet
(0.65 MB)
|
0.65 MB | |
Certificate
(0.19 MB)
|
0.19 MB | |
EPREL-Product data sheet
(0.41 MB)
|
0.41 MB |
We will be happy to advise you!
You can reach us:
Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help

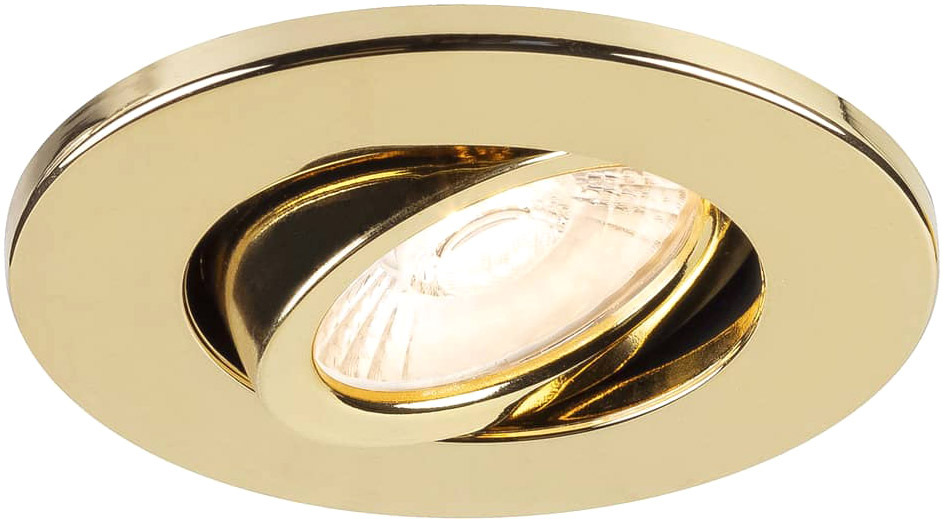

SLV UNIVERSAL DOWNLIGHT Cover, for Downlight IP20, pivoting, round, gold
€2.92
*
incl. tax,
plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days

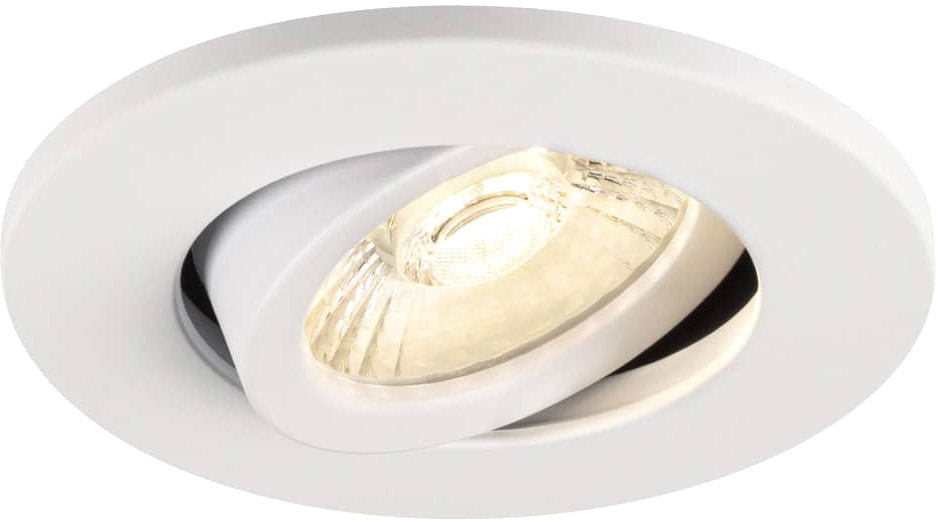

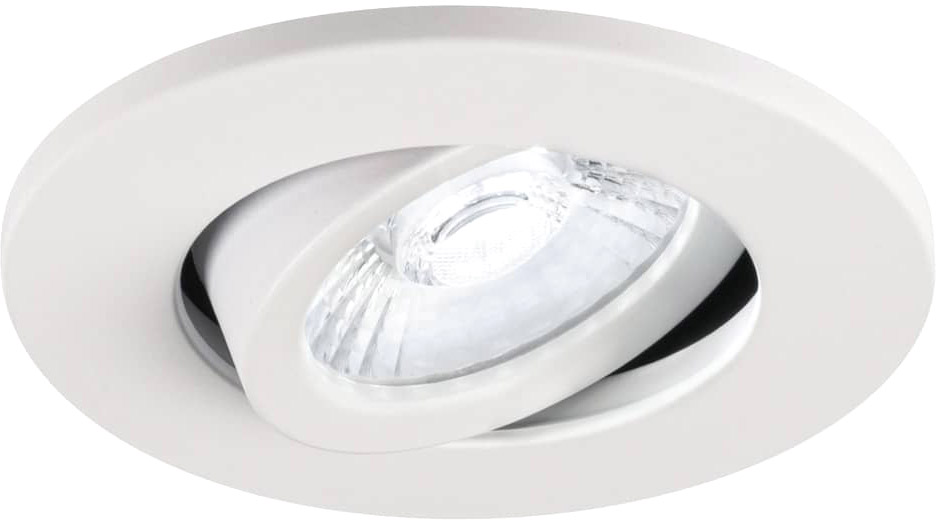

SLV UNIVERSAL DOWNLIGHT Cover, for Downlight IP20, pivoting, round, white
€2.50
*
incl. tax,
plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days

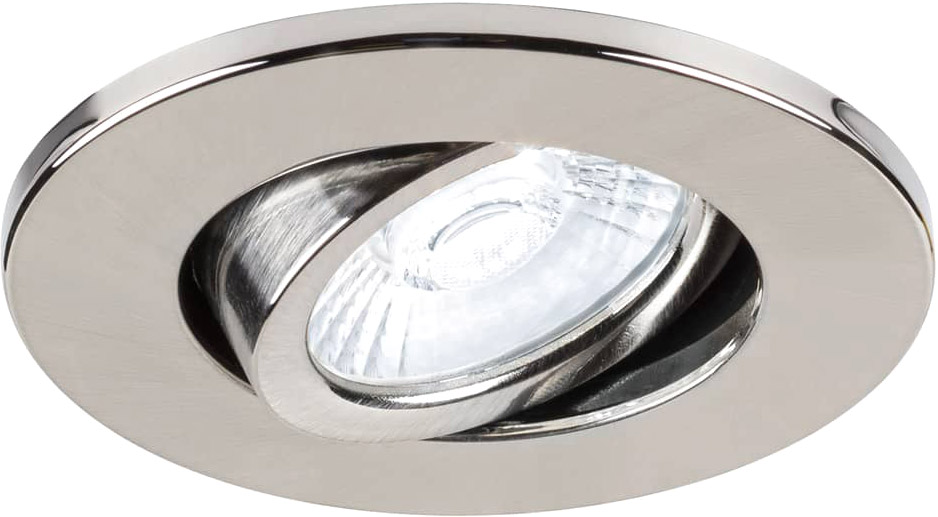

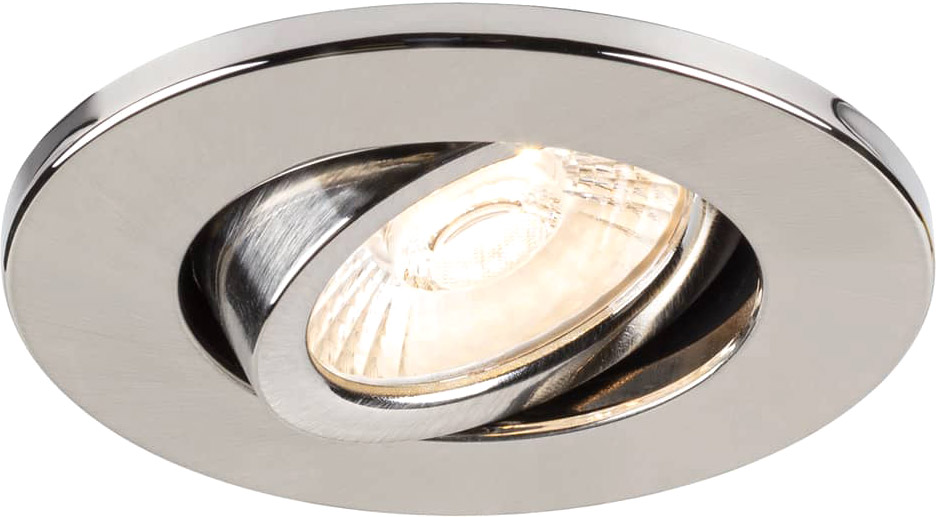

SLV UNIVERSAL DOWNLIGHT Cover, for Downlight IP20, pivoting, round, aluminium
