LEDVANCE SPOT FIRE RATED 8W 940 PS DIM IP65 WT
€35.19 *
incl. tax,
plus shipping costs
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 101413165
EAN: 4058075799769
Recessed mounted spotlight for certain fire-resistant ceilings, fixed. Product features: Color... more
All information about the product:
"LEDVANCE SPOT FIRE RATED 8W 940 PS DIM IP65 WT"

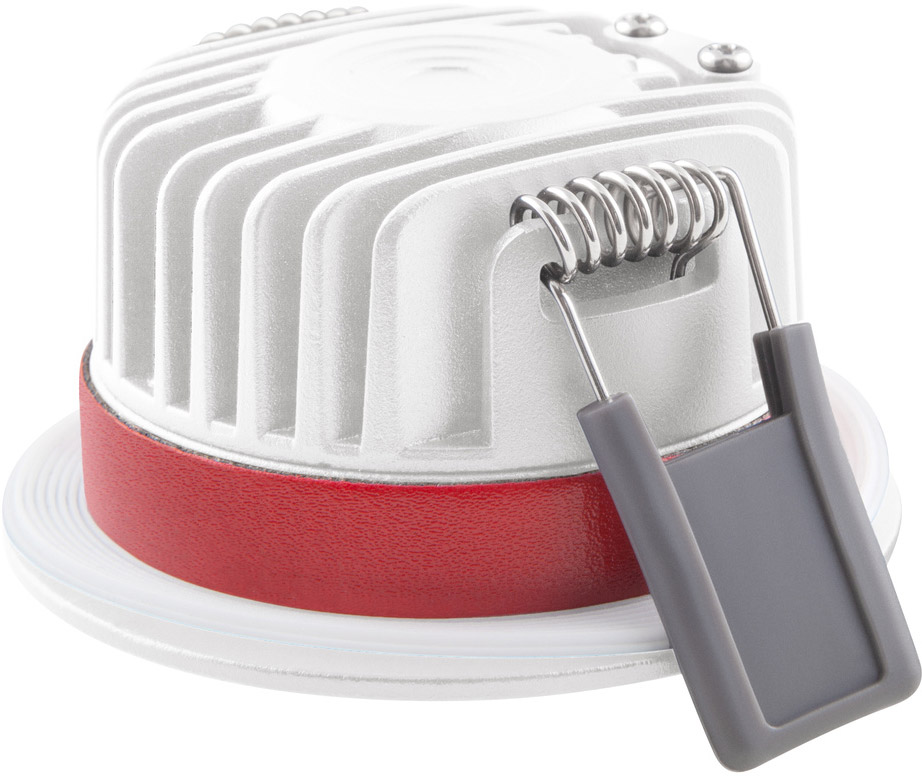

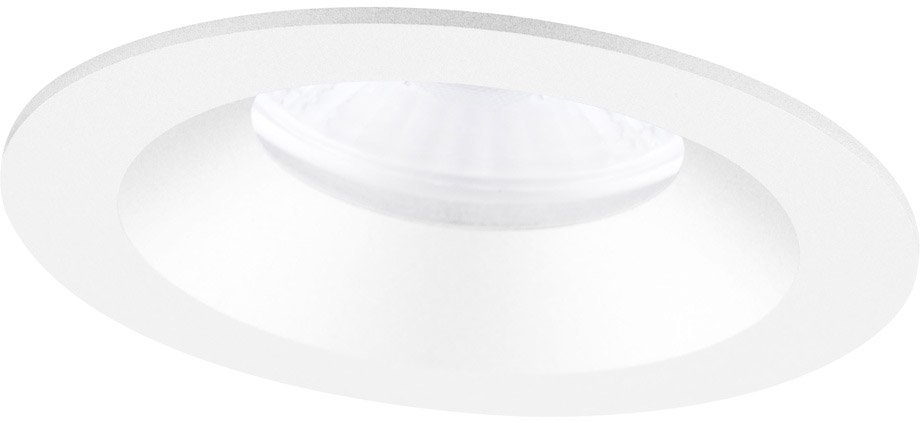

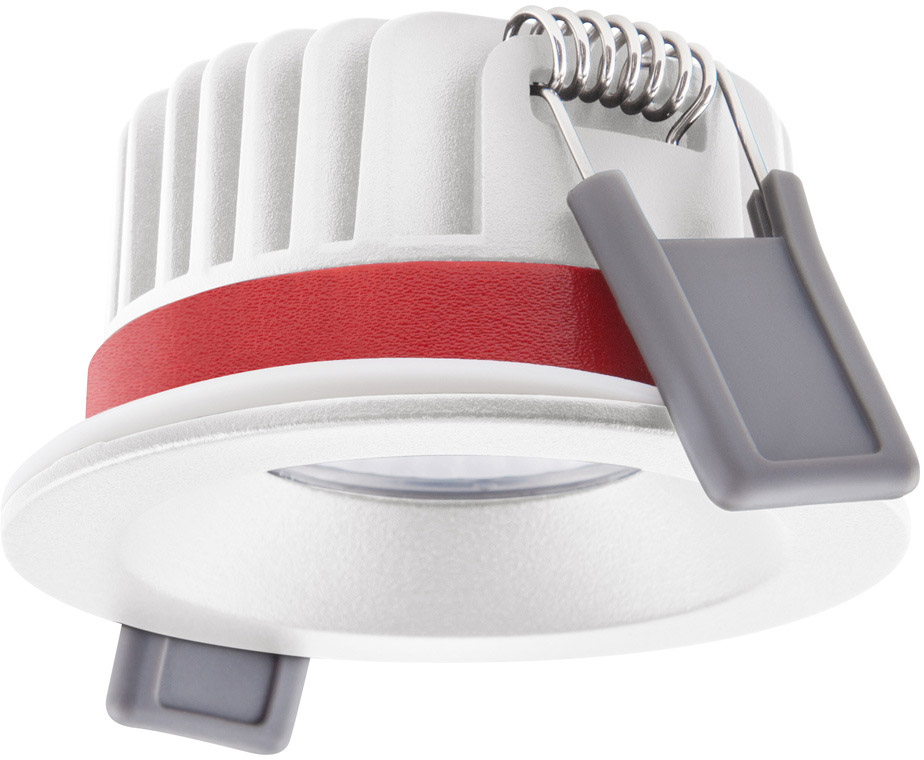

Recessed mounted spotlight for certain fire-resistant ceilings, fixed. Product features:
- Color rendering index Ra: 90
- Type of protection: IP65 (room side)
- Beam angle: 36°
- Die-cast aluminum housing
- Thermal expansion ribbon already preinstalled
- Silicon-pad protected springs
- Dimmable (with many common dimmers, see also www.ledvance.com/dim)
- Through-wiring possible
- Fire-rated: Designed and tested to meet fire rating standards (in certain fire rated ceilings)
- Airtight construction for reduced air-leakage and limited energy loss
- Powerselect: Brightness adjustment via dip switches on the driver
- Easy replacement of external driver thanks to plug with bayonet lock
- Easy installation and electrical connection thanks to tool-free electrical connectors
- SCALE Design – great appearance, valuable materials and small size fits into every surrounding
- 5 years guarantee
- Direct replacement for recessed spotlights with halogen lamps
- Fire resistent ceilings
- Hotel rooms and corridors
- Bars, restaurants
- Galleries, museums
- Equipment / Accessories: External control gear included with dip-switches to select power during installation
- Selected DALI 2.0 driver available as accessory
| Height: | 42 mm |
| Diameter: | 81 mm |
| Net weight: | 250 g |
| Nominal voltage: | 240 V |
| Rated power: | 8 W |
| Energy consumption: | 8 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | Cool White |
| Beam angle: | 36° |
| Luminous flux: | 720 lm |
| Luminous efficacy: | 90 lm/W |
| Colour rendering: | 90 CRI |
| Lifetime: | 50000 h |
| Switching cycles: | 100000 |
| Dimmable: | Yes |
| Material: | Aluminum |
| Colour: | White |
| EAN: | 4058075799769 |
