SLV DOWNLIGHT V 150, 9/15W 830/840 IP54

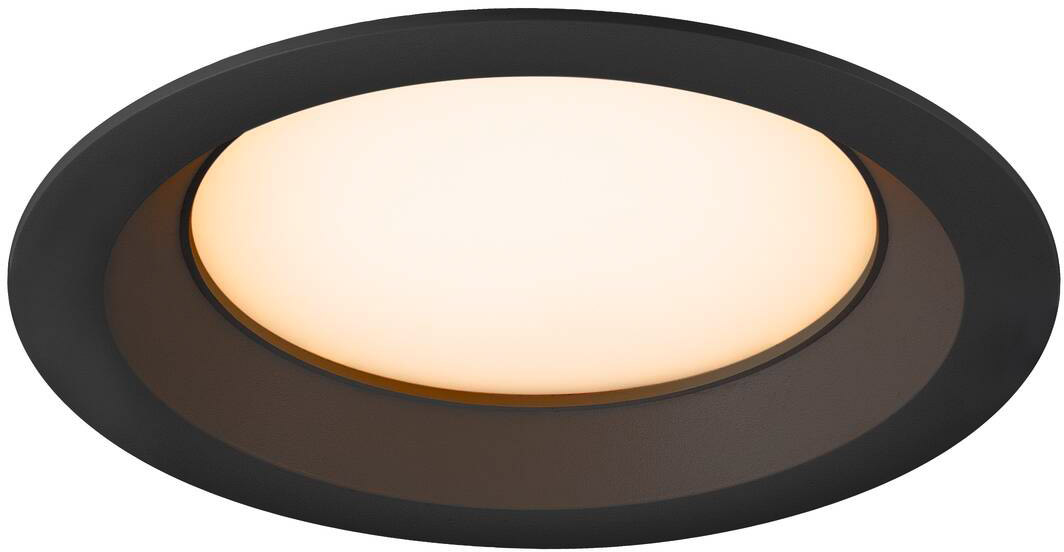

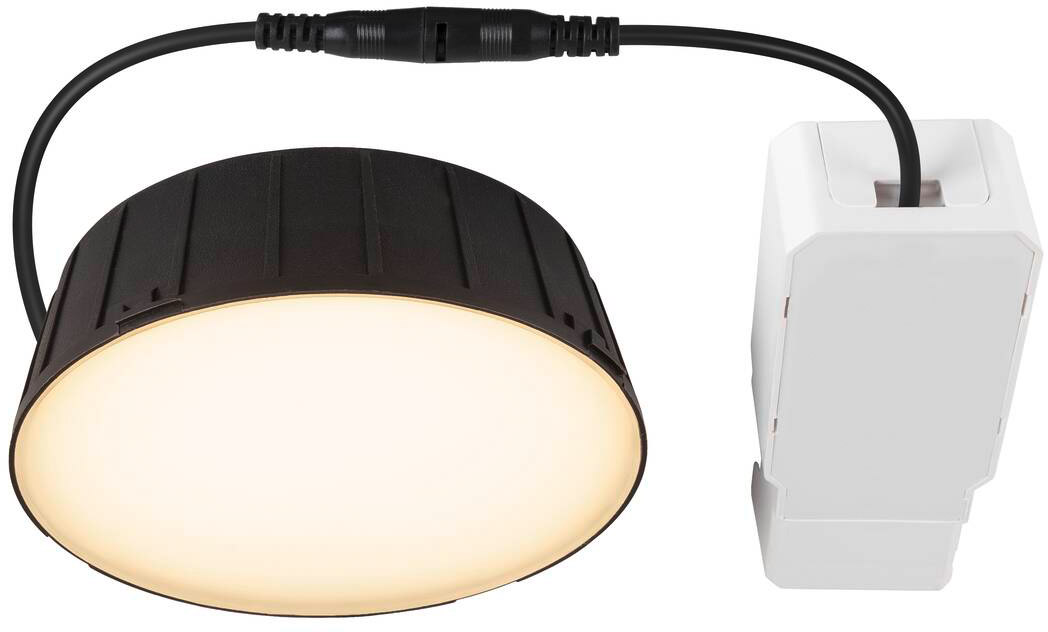

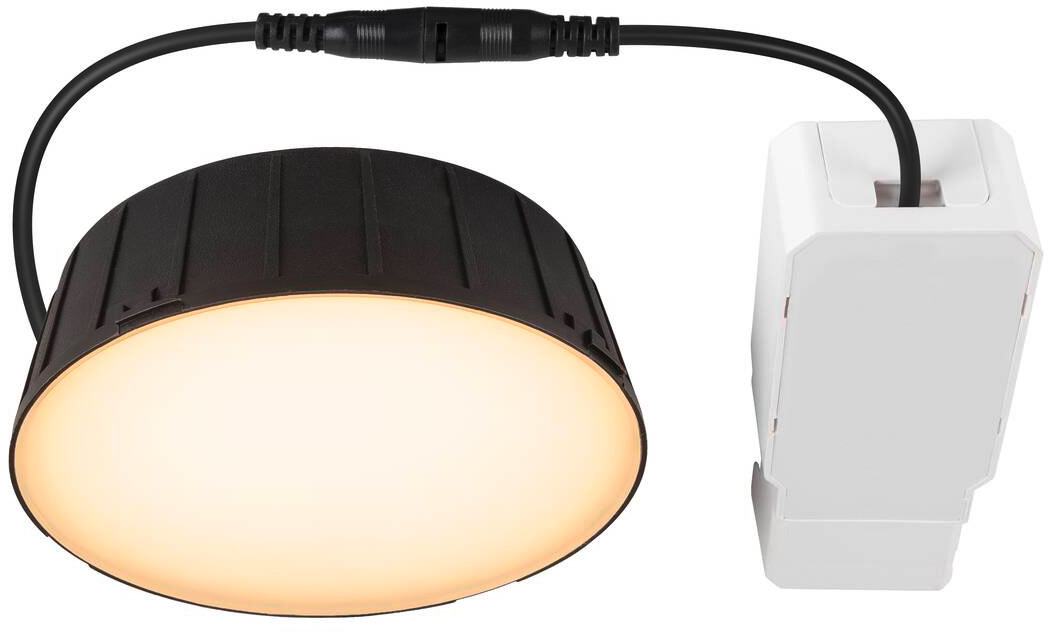

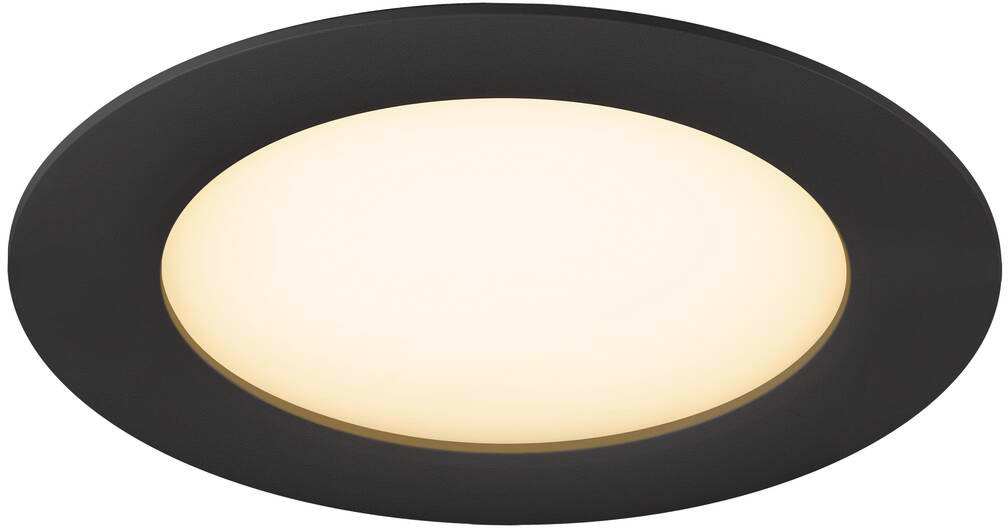

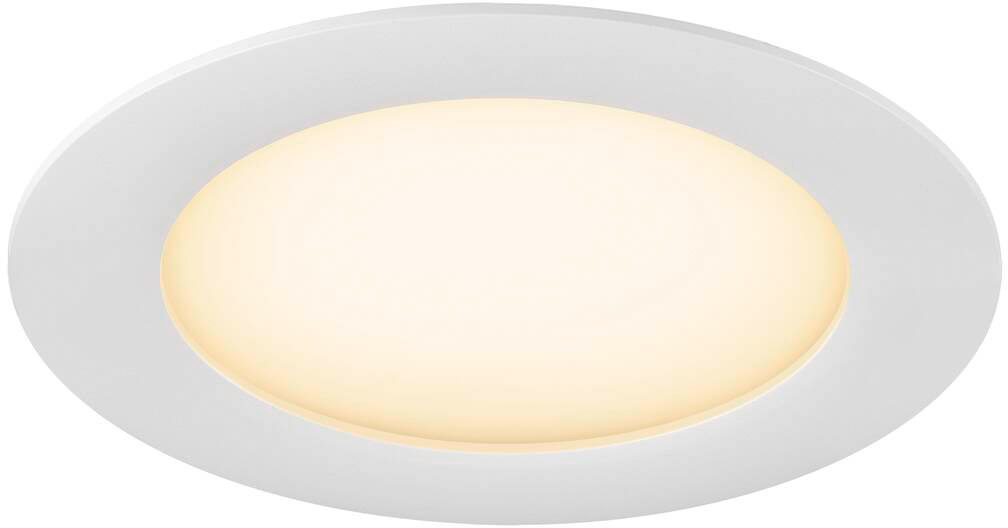

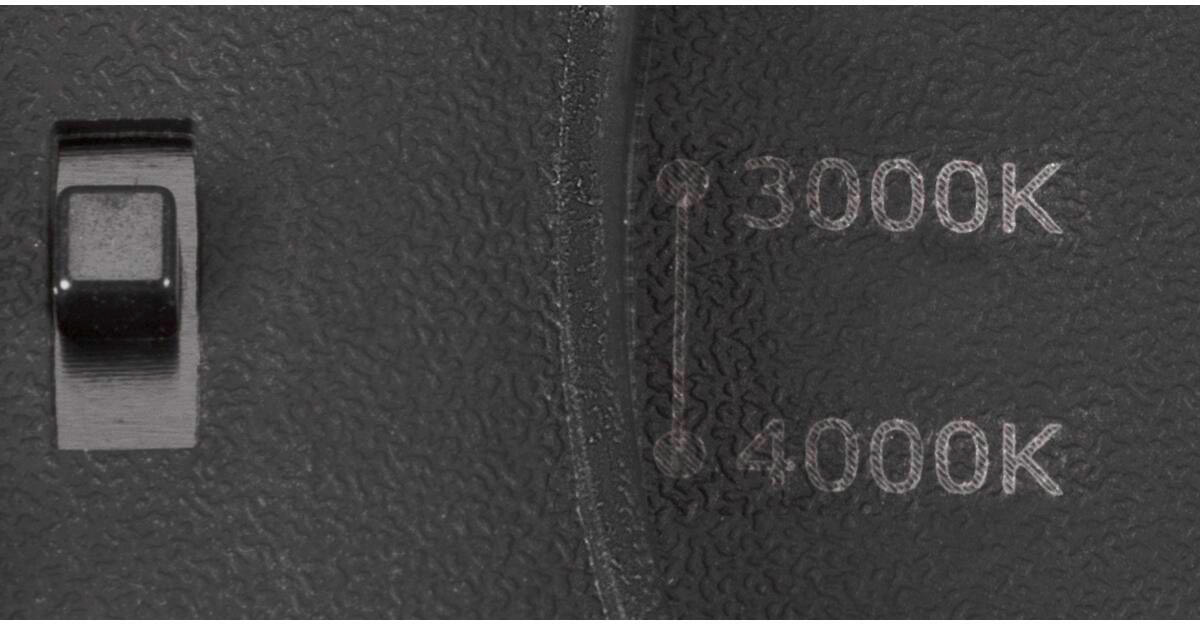

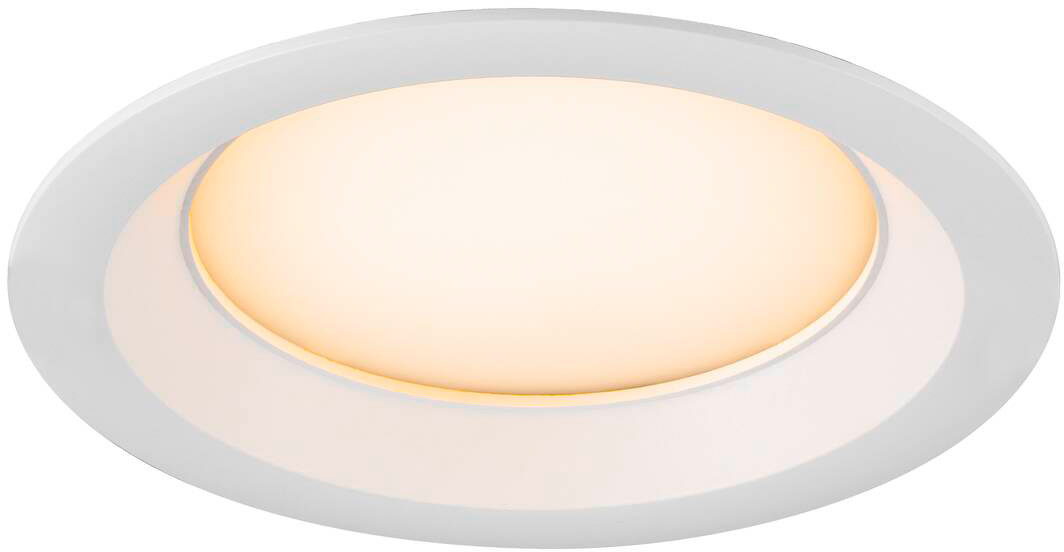

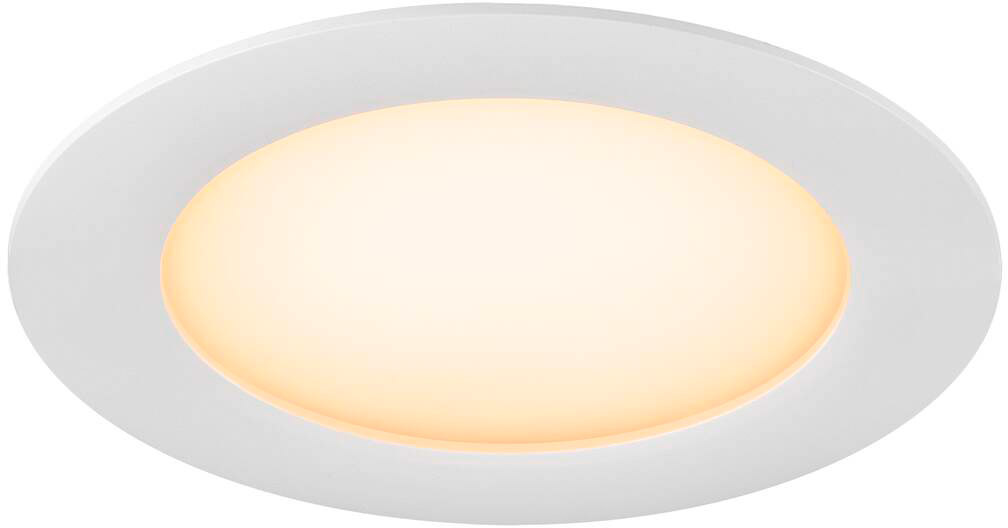

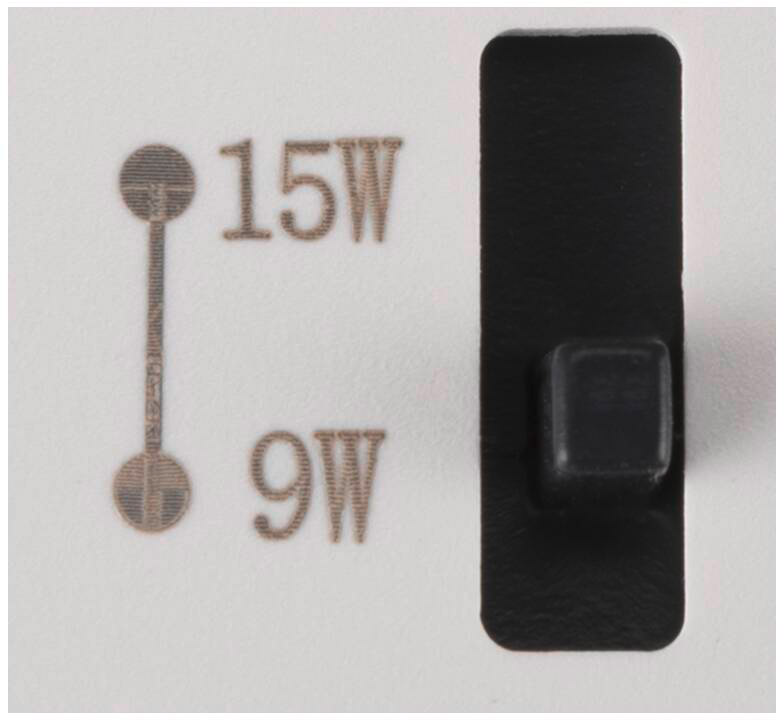

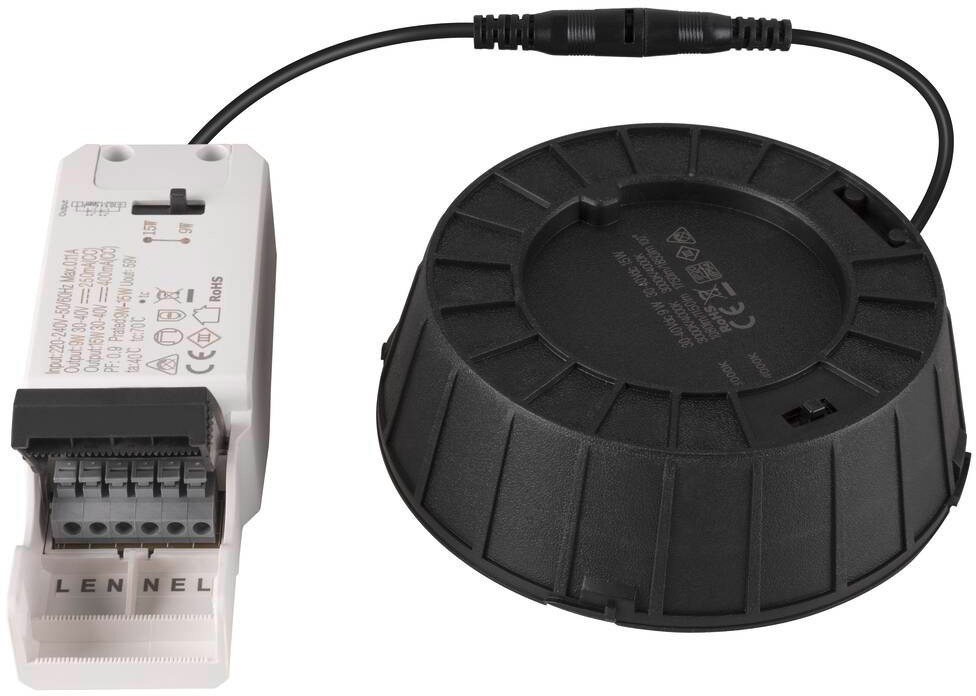

Discover our new technical product range: SLVtec.With state-of-the-art LED technology, we offer energy-efficient and functional lighting solutions for indoor and outdoor use. From wet room lights to high-bay spotlights – our high-quality products impress with functionality and a fair price-performance ratio. These include the DOWNLIGHT V 150 recessed light, available in white or black with a flat or slightly recessed cover. With a power consumption of 9W or 15W, the light colour (3000K/4000K) and light intensity (1750lm/1900lm) are adjustable via dip switch. For this purpose, the DOWNLIGHT V 150 is quickly and easily installed thanks to the integrated connection box of the LED driver. Decide in favour of SLVtec today.Technical data:

Product name:	Downlight V 150
Colour:	black
Material:	Polyamid (PA)
electrical power:	15 W
Rated value luminous efficacy:	117/127 lm/W
Luminous flux:	1750 / 1900 lm
Half beam angle:	105 °
CRI:	80
Protection category:	II
IP Code:	IP20/54
Assembly:	Recessed
Assembly details:	Ceiling with Acc.
Shape:	round
Height:	3.9 cm
Diameter:	12.3 cm
Shape of cut-out:	round
Installation diameter:	15 cm
Installation depth:	5.5 cm
Shock resistance category:	IK02
Primary nominal voltage:	220-240V ~50/60Hz
Secondary power / secondary voltage:	250/400mA
Ambient temperature:	-20 - 40 °C
Energy efficiency class:	D
Net weight:	0.22 kg
Weighted consumption:	15 kWh/1.000h
LXXBXX data:	L70B50
Service life:	50000 h
Number of lights on LS B16A:	39 St.
Number of lights on LS C16A:	66 St.
Inrush current level:	7.6 A
Inrush current duration:	420 µs
Stroboscopic visibility measure (SVM):	0.1
