MONACOR LDD-190/NWS LED downlight, 16 W, 1,070 lm

This article has been discontinued!

You can find out about possible alternatives or successor models by calling our hotline:

Item number: 250135160

EAN: 4029779044455

LDD-190/NWS LED downlight, 16 W, 1,070 lm Super slimline design, min. mounting depth: 14 mm... more

All information about the product:

"MONACOR LDD-190/NWS LED downlight, 16 W, 1,070 lm"

LDD-190/NWS LED downlight, 16 W, 1,070 lm

Super slimline design, min. mounting depth: 14 mm
Beam angle: 110°
White aluminium housing with protective front cover (plastic)
For installation into ceiling cutouts: Ø 175 mm
Qick-mounting facility with lateral spring clips

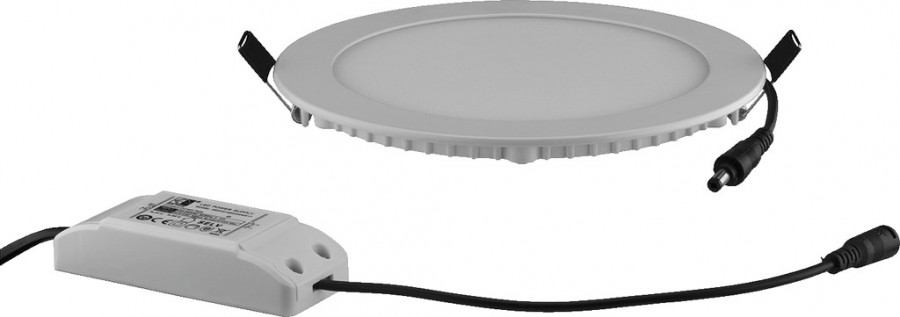

Including 230 V LED switch-mode power supply
Not dimmable
Suitable for integrating into lighting systems complying with EN 12464 and EN 12665 (DIN 5035)

Technical Data:LDD-190/NWS

Power rating:	16 W
Luminous colour:	neutral white
Colour temperature:	4,000 K
Luminous flux:	1,070 lm
Energy efficiency class:	A+
Dimmable:	no
Beam angle:	110°
Colour rendering index (Ra):	> 80
Rated life:	30,000 h
Switching cycles:	> 15,000
Protective class:	IP44
Power supply:	˜ 230 V/300 mA/16 W
Operating voltage:	~ 230 V
Power consumption, operation:	16 W
Current consumption:	300 mA

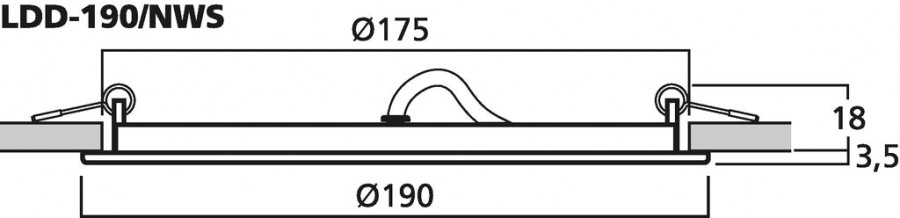

Mounting cutout:	Ø 175 mm
Mounting depth:	18 mm
Dimensions:	Ø 190 mm x 21.5 mm
Width:	Ø 190 mm
Depth:	21.5 mm
Weight:	0.426 kg
