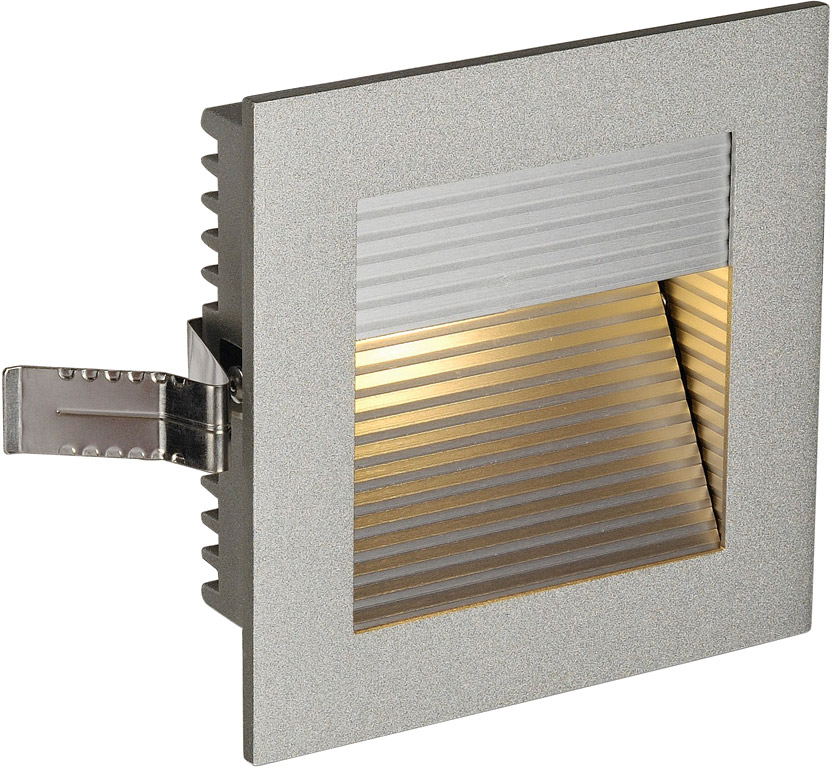

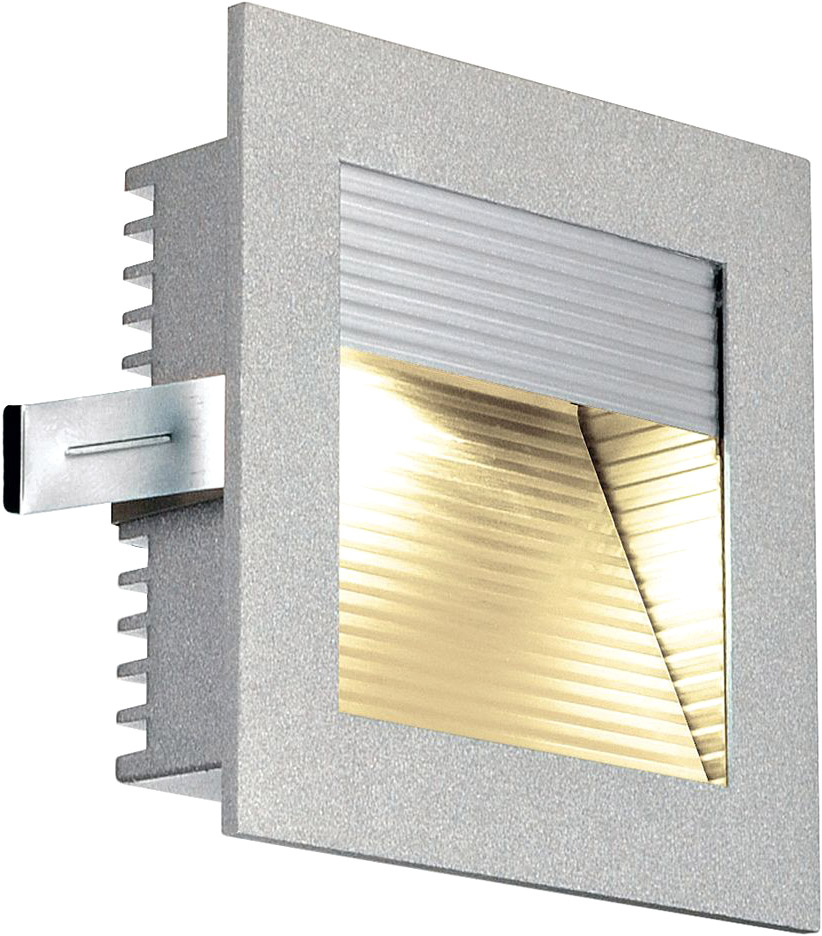

SLV FRAME CURVE, recessed fitting, LED, 3000K, square, silver-grey, incl. leaf springs
€37.26 *
incl. tax,
plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 110000360
EAN: 4024163115193
With our FRAME series we offer you a lighting solution for recessed wall and ceiling installation... more
All information about the product:
"SLV FRAME CURVE, recessed fitting, LED, 3000K, square, silver-grey, incl. leaf springs"
With our FRAME series we offer you a lighting solution for recessed wall and ceiling installation with minimum space requirements. The LED version is equipped with a durable diode and available in either pure white or warm white light colour. To operate, the FRAME CURVE needs a suitable constant current driver rated at 350mA. The optional accessory includes a connector strip for simplified wiring in addition to the mounting box and flush-mount frame. This luminaire contains built-in LED lamps.Technical data:
Product name: | FRAME CURVE |
Colour: | grey |
Material: | Aluminium |
electrical power: | 1 W |
Lumen/wattage: | 60 lm/W |
Luminous Flux: | 60 lm |
Colour temperature: | 3000 Kelvin |
CRI: | 90 |
Protection category: | III |
IP Code: | IP 20 |
Assembly: | Recessed |
Assembly details: | Wall |
Shape: | square |

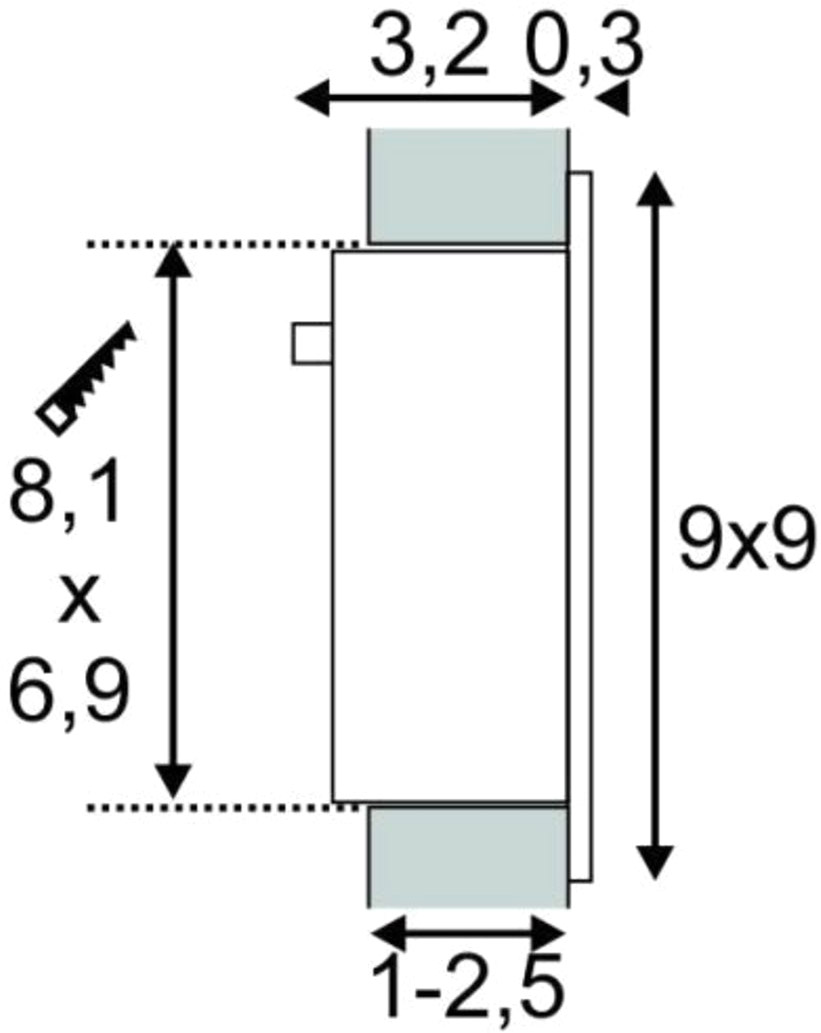

Width: | 9 cm |
Height: | 9 cm |
Shape of cut-out: | square |
Installation length: | 8.1 cm |
Installation width: | 6.9 cm |
Installation depth: | 4.5 cm |
Light outlet: | direct |

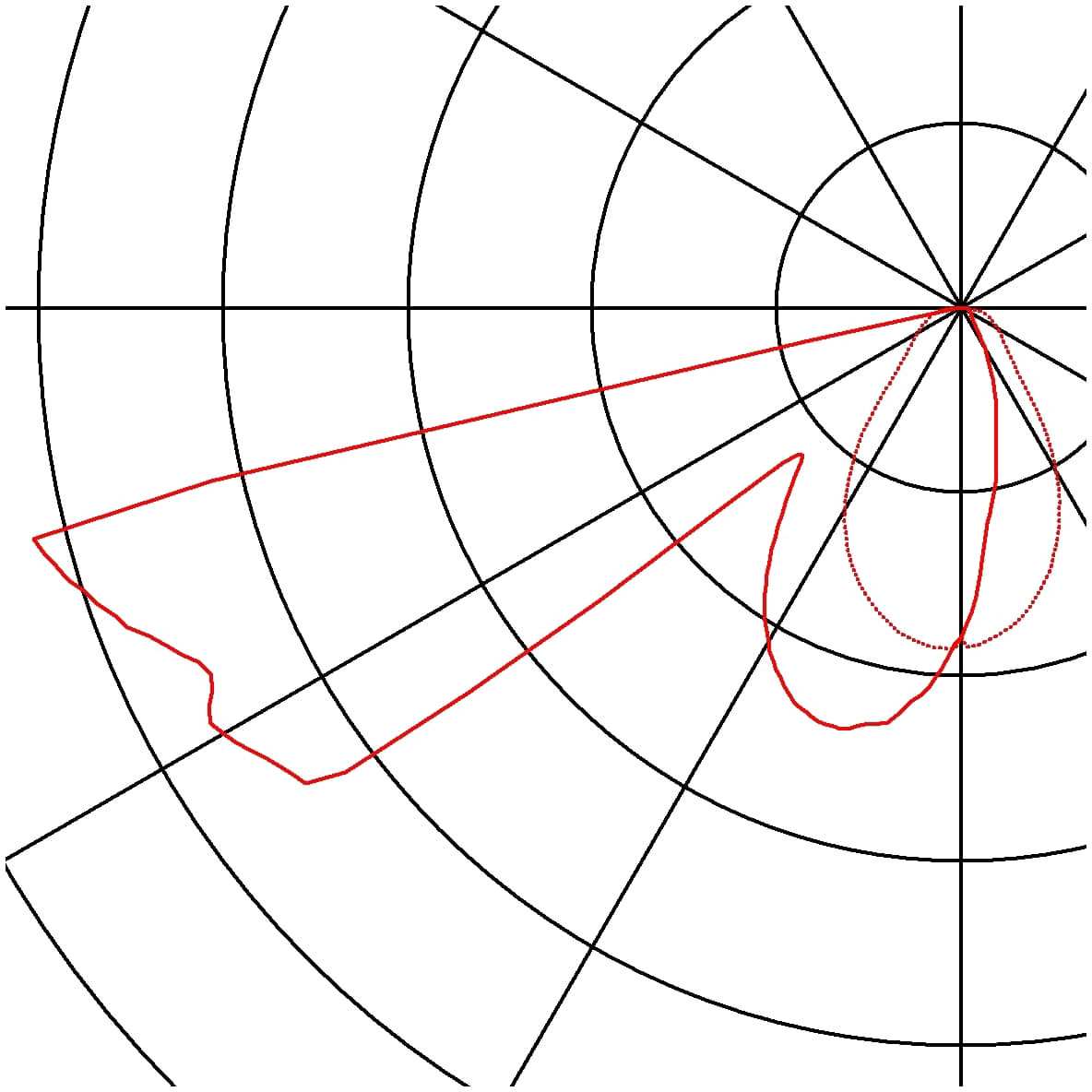

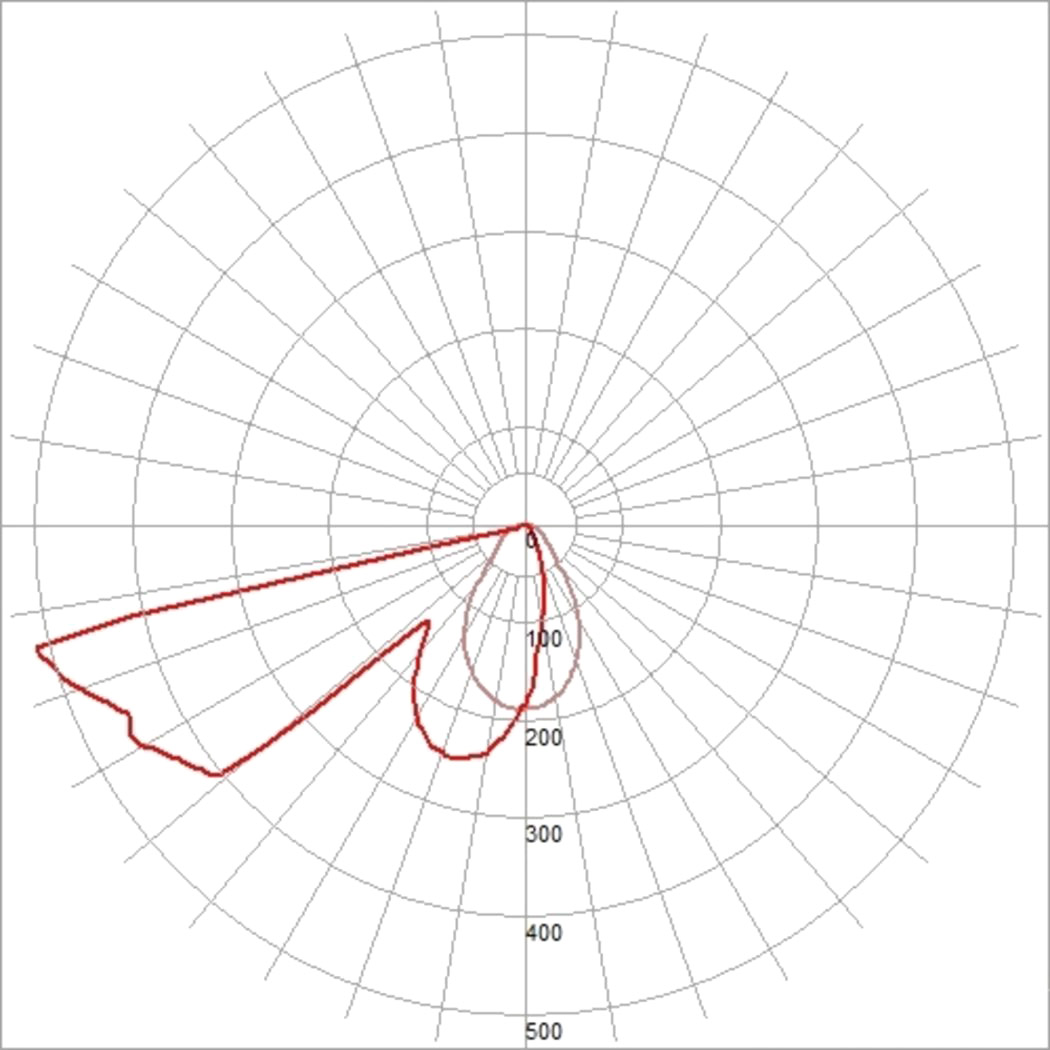

Luminous intensity distribution: | asymmetric |
Service life: | 30000 h |
Secondary power / secondary voltage: | 350mA |
Net weight: | 0.14 kg |
Rated value luminous efficacy: | 60 lm/W |
Weighted consumption: | 1 kWh/1.000h |
LXXBXX data: | L70B50 |
Further links
We will be happy to advise you!
You can reach us:
Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Downloads for the product:
"SLV FRAME CURVE, recessed fitting, LED, 3000K, square, silver-grey, incl. leaf springs"
Document type | File size | |
Data sheet
(0.84 MB)
|
0.84 MB | |
Certificate
(0.05 MB)
|
0.05 MB | |
Information about the product
(0.05 MB)
|
0.05 MB | |
Information about the product
(0.05 MB)
|
0.05 MB | |
Information about the product
(0.60 MB)
|
0.60 MB | |
EPREL-Product data sheet
(0.22 MB)
|
0.22 MB |
