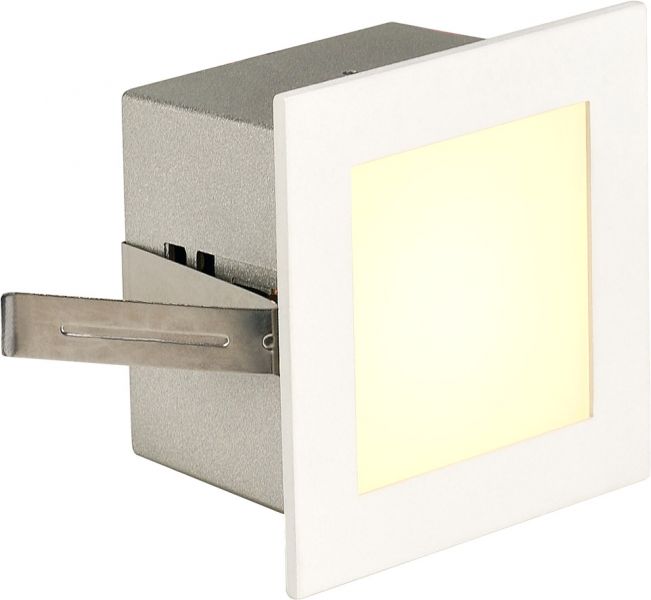

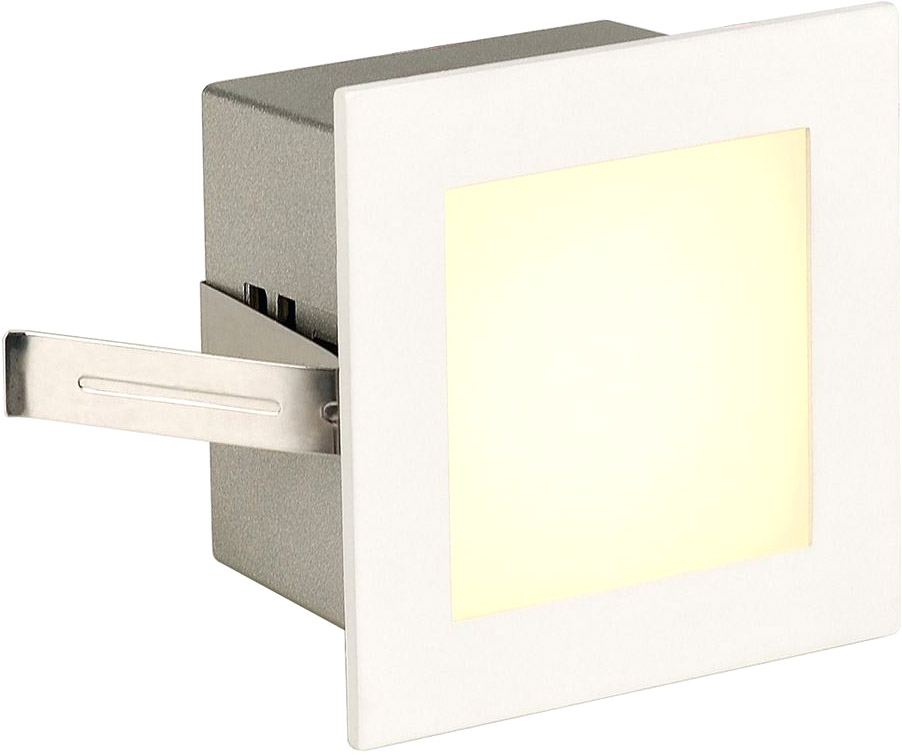

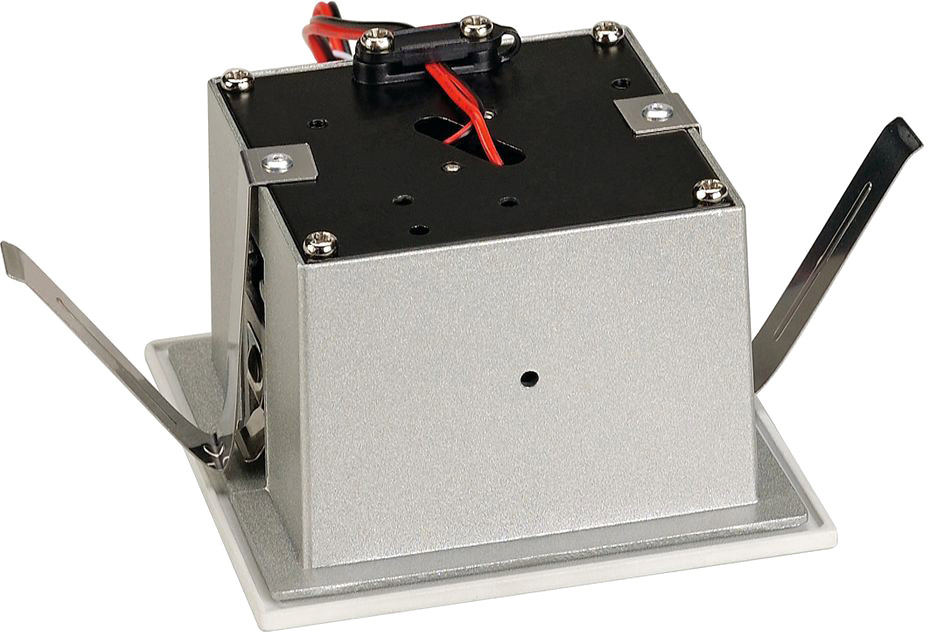

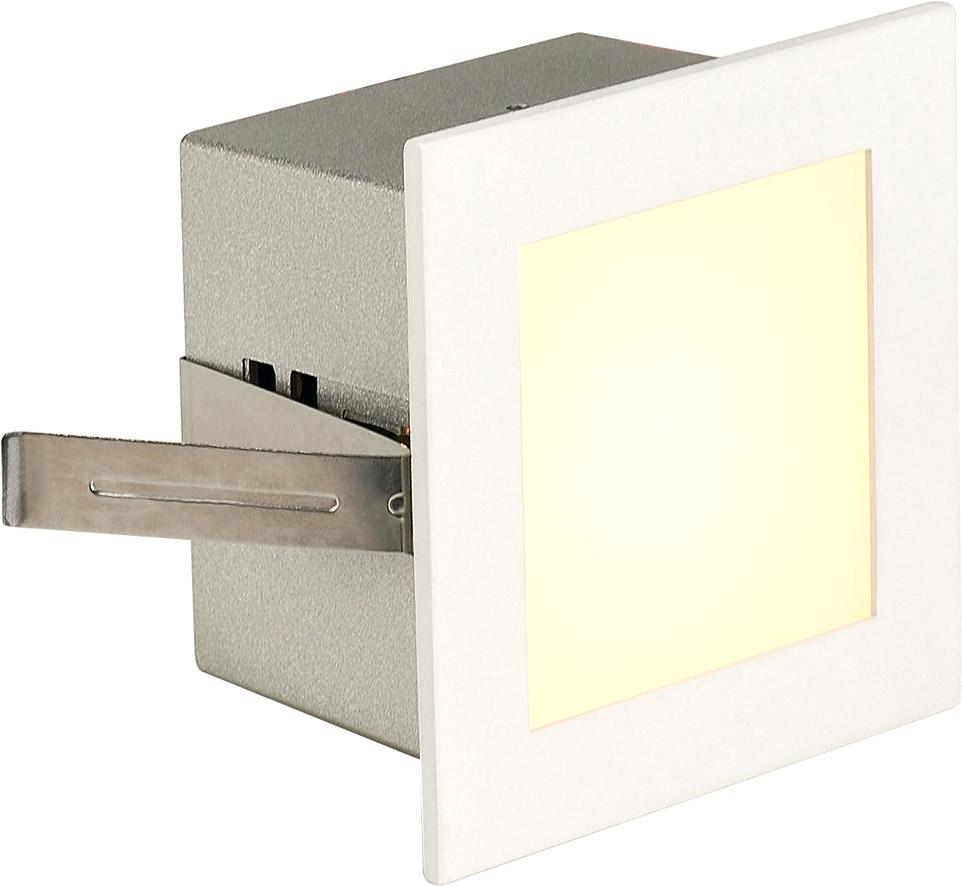

SLV FRAME BASIC, recessed fitting, LED, 3000K, square, matt white, incl. leaf springs
€27.60 *
incl. tax,
plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 110022585
EAN: 4024163138109
With our FRAME series we offer you a lighting solution for recessed wall and ceiling installation... more
All information about the product:
"SLV FRAME BASIC, recessed fitting, LED, 3000K, square, matt white, incl. leaf springs"
With our FRAME series we offer you a lighting solution for recessed wall and ceiling installation with minimum space requirements. The LED version is equipped with a high-quality diode and available in either pure white or warm white light colour. To operate, the FRAME BASIC needs a suitable constant current driver rated at 350mA. The optional accessory includes a connector strip for simplified wiring in addition to the mounting box and flush-mount frame. This luminaire contains built-in LED lamps.Technical data:
Product name: | FRAME BASIC |
Colour: | white |
Material: | Aluminium |
electrical power: | 1 W |
Lumen/wattage: | 40 lm/W |
Luminous Flux: | 40 lm |
Colour temperature: | 3000 Kelvin |
CRI: | 90 |
Protection category: | III |
IP Code: | IP 20 |
Assembly: | Recessed |
Assembly details: | Ceiling |
Shape: | square |

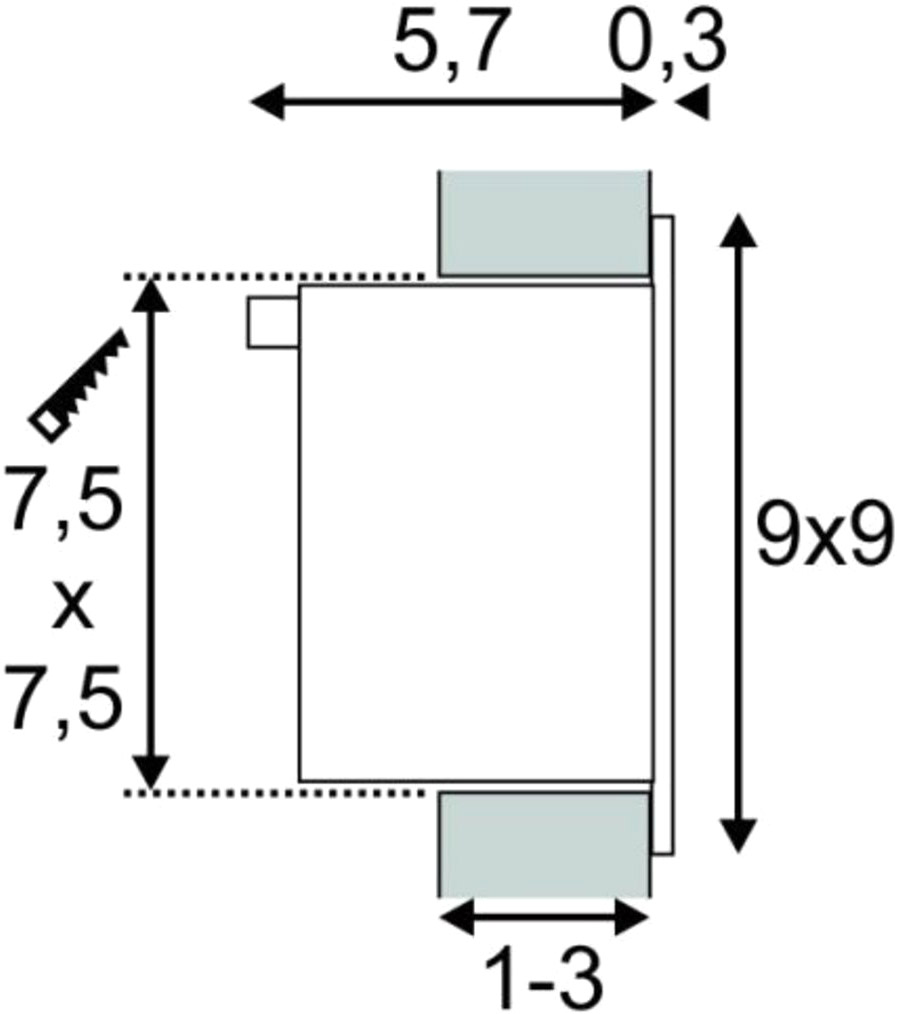

Width: | 9 cm |
Height: | 9 cm |
Shape of cut-out: | square |
Installation length: | 7.5 cm |
Installation width: | 7.5 cm |
Installation depth: | 6.6 cm |
Light outlet: | direct |

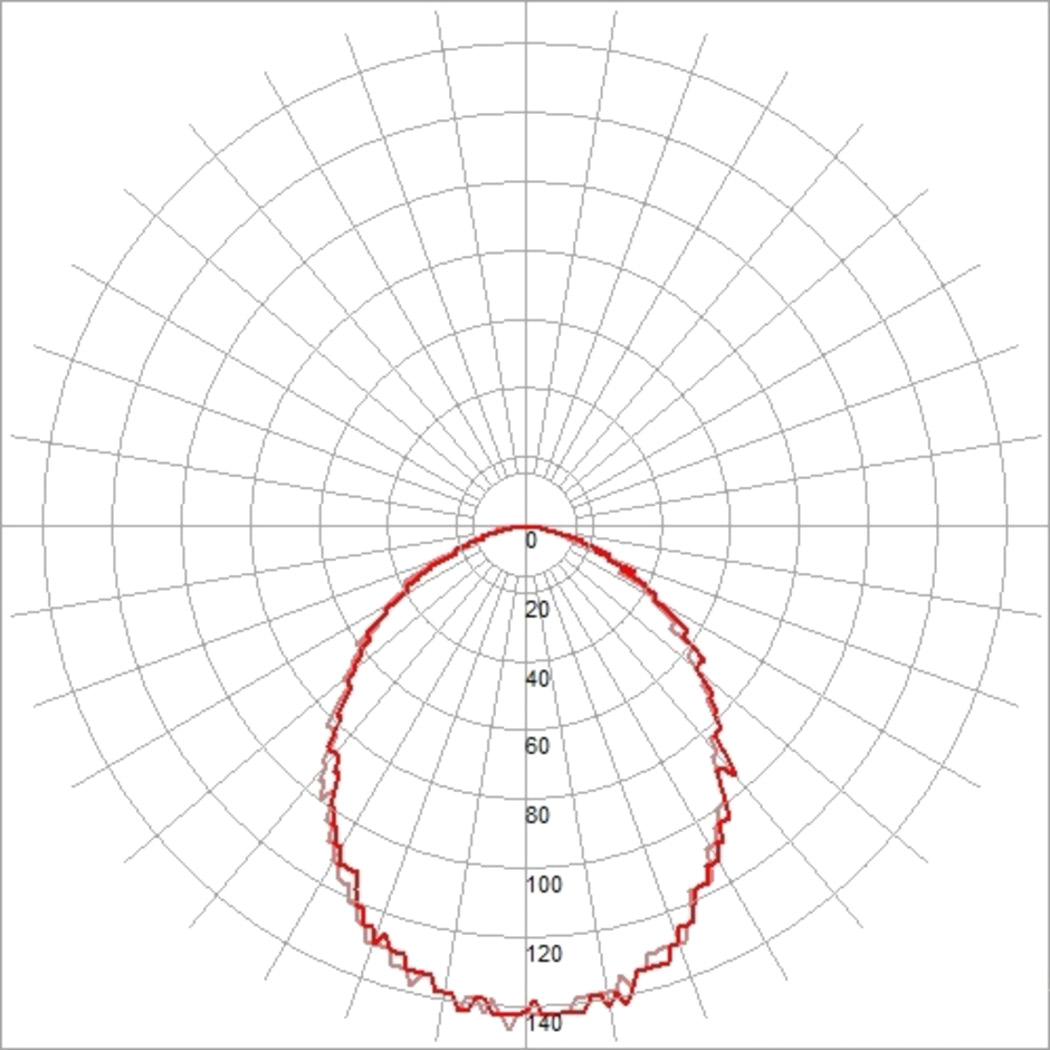

Luminous intensity distribution: | symmetric |
Service life: | 30000 h |
Secondary power / secondary voltage: | 350mA |
Net weight: | 0.23 kg |
Rated value luminous efficacy: | 40 lm/W |
Weighted consumption: | 1 kWh/1.000h |
LXXBXX data: | L70B50 |
