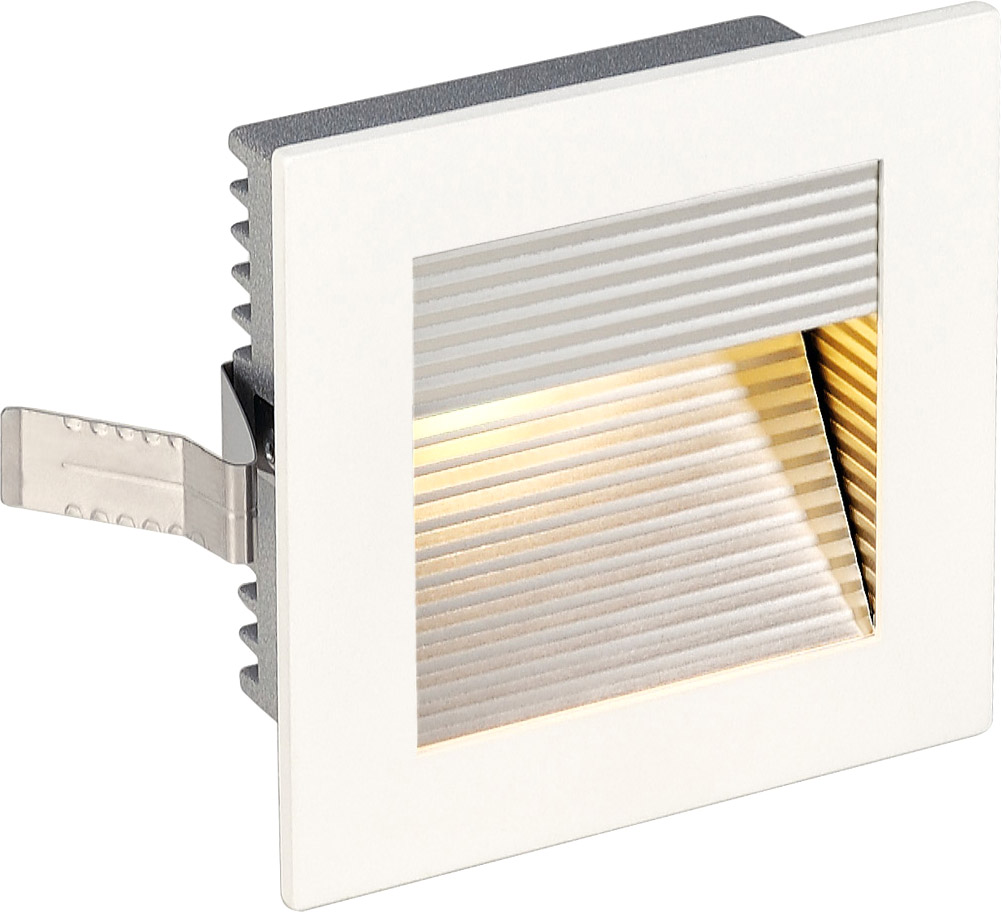

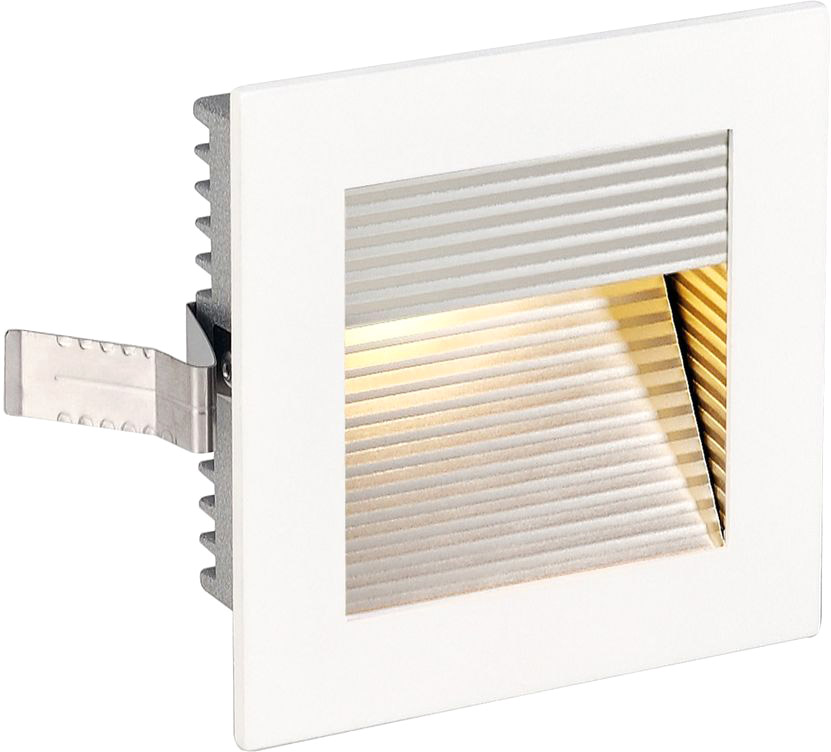

SLV FRAME CURVE, recessed fitting, LED, 3000K, square, matt white, incl. leaf springs

Preview: SLV FRAME CURVE LED Einbauleuchte, eckig, mattweiss, warmweisse LED

SLV FRAME CURVE LED Einbauleuchte, eckig, mattweiss, warmweisse LED

€37.26 *

incl. tax, plus shipping costs

Availability:

Delivery time: 5-7 days

Delivery time: approx. 5-7 days

Item number: 110022595

EAN: 4024163138123

Product data sheet (PDF)

With our FRAME series we offer you a lighting solution for recessed wall and ceiling installation... more

Back to the overview

All information about the product:

"SLV FRAME CURVE, recessed fitting, LED, 3000K, square, matt white, incl. leaf springs"

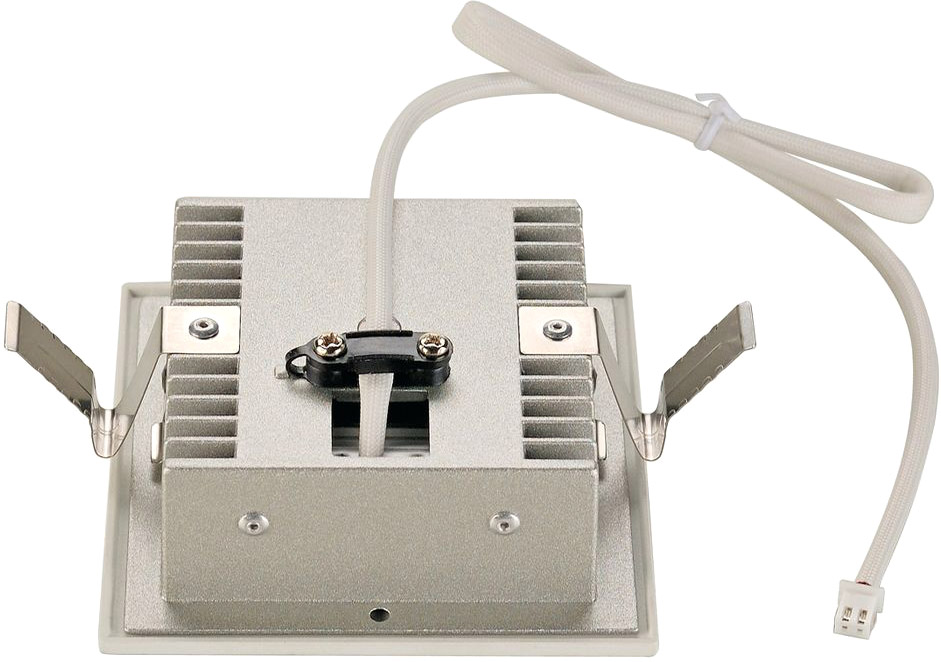

With our FRAME series we offer you a lighting solution for recessed wall and ceiling installation with minimum space requirements. The LED version is equipped with a durable diode and available in either pure white or warm white light colour. To operate, the FRAME CURVE needs a suitable constant current driver rated at 350mA. The optional accessory includes a connector strip for simplified wiring in addition to the mounting box and flush-mount frame. This luminaire contains built-in LED lamps.Technical data:

Product name:	FRAME CURVE
Colour:	white
Material:	Aluminium
electrical power:	1 W
Lumen/wattage:	60 lm/W
Luminous Flux:	60 lm
Colour temperature:	3000 Kelvin
CRI:	90
Protection category:	III
IP Code:	IP 20
Assembly:	Recessed
Assembly details:	Wall
Shape:	square

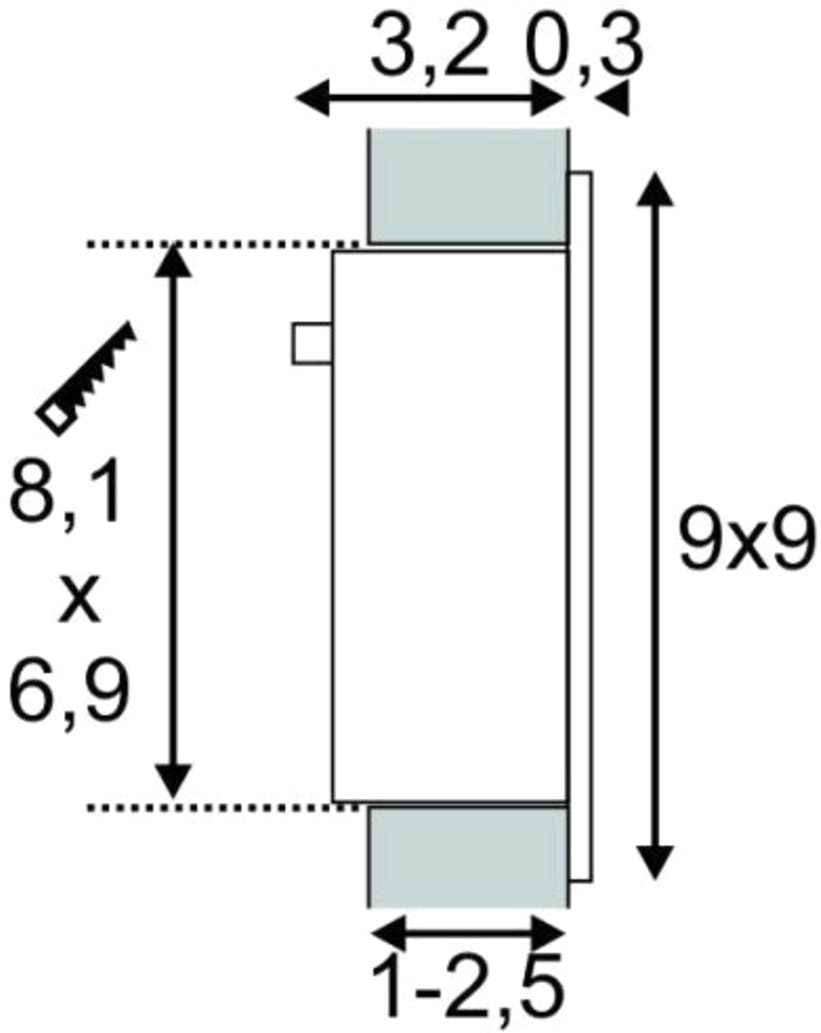

Width:	9 cm
Height:	9 cm
Shape of cut-out:	square
Installation length:	8.1 cm
Installation width:	6.9 cm
Installation depth:	4.5 cm
Light outlet:	direct
Luminous intensity distribution:	symmetric
Service life:	30000 h
Secondary power / secondary voltage:	350mA
Net weight:	0.14 kg
Rated value luminous efficacy:	60 lm/W
Weighted consumption:	1 kWh/1.000h
LXXBXX data:	L70B50
