LEDVANCE PANEL PROTECT 625 PS 36W 840 PS
€120.37 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 101414095
EAN: 4099854083389
Square recessed panel luminaires with IP54 protection and power select (PS) feature, 625 x 625... more
All information about the product:
"LEDVANCE PANEL PROTECT 625 PS 36W 840 PS"

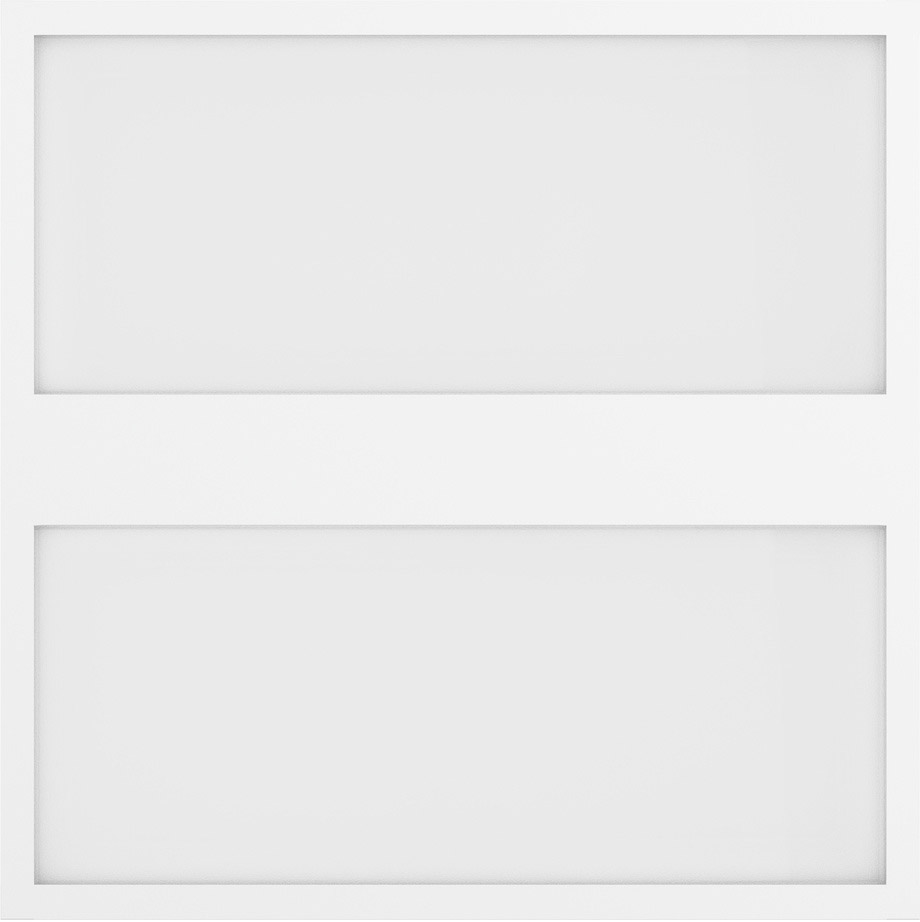

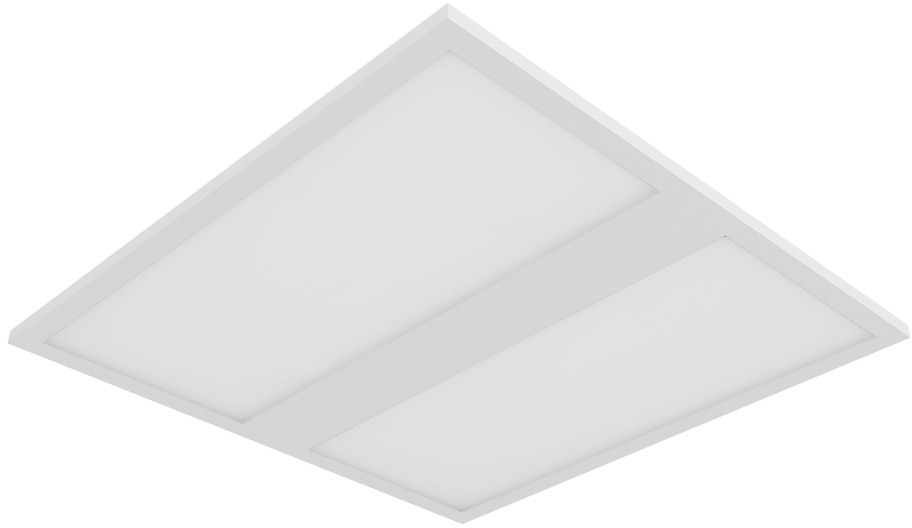

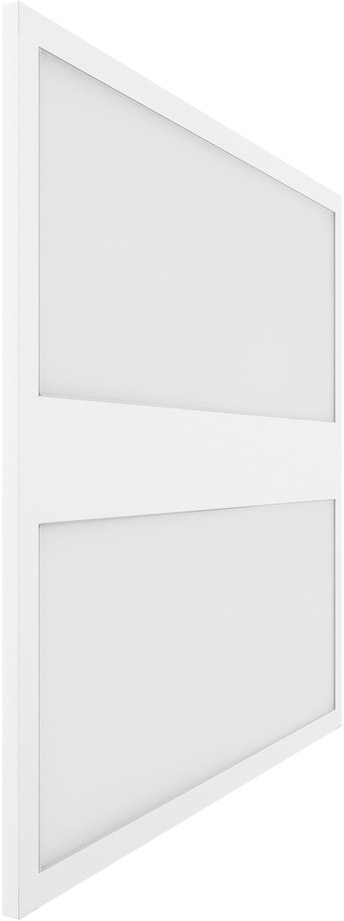

Square recessed panel luminaires with IP54 protection and power select (PS) feature, 625 x 625 mm. Product features:
- Type of protection: IP54 (frontside), IP20 (backside)
- Steel housing with notch in the backside for the driver to allow maximum height of 34 mm
- PMMA diffuser
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Luminaire versions with IoT-ready DALI-2 driver available
- Lifetime (L90/B10): 50,000 h (at 25° C)
- Panel can be customized with optical sensors on individual request
- Suitable for use in applications where a higher IP protection is needed
- Highly versatile due to selectable power steps (Power Select - PS) on the driver and up to 5040 lm
- Tool-free electrical connection due to push button connector
- Through-wiring possible with included connector box
- Energy savings thanks to high system efficacy: up to 140 lm/W
- High color consistency with SDCM 3
- Extended services such as energy monitoring and remote maintenance possible with DALI versions
- External driver for extended flexibility and easy installation
- Easy cleanable frontside thanks to the smooth PMMA surface of the diffuser
- Suitable for battery emergency installations acc
- to EN 60598-2-22
- Decentral emergency lighting possible with separately available LEDVANCE Emergency Conversion Box
- 5 years guarantee
- Direct replacement for luminaires with fluorescent lamps
- Suitable for recessed ceiling systems with grid size of 625 x 625 mm
- Hospitals
- Laboratories

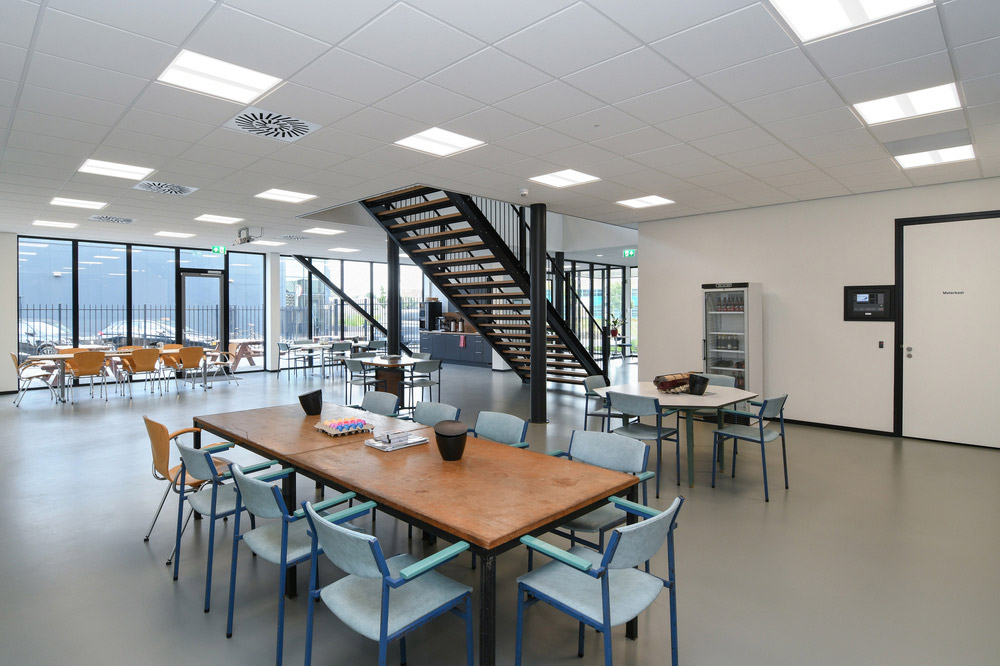

- Kitchens, canteens, workspaces
- Equipment / Accessories: Accessories for several mounting options available
- Connector box with 5-pole terminal pre-installed
- Security brackets preinstalled
- External control gear included
- Suitable for use with seperate Emergency Conversion Box
- Special mounting frame with an overall height of only 50 mm available separately
| Length: | 620 mm |
| Width: | 620 mm |
| Height: | 34 mm |
| Net weight: | 2170 g |
| Nominal voltage: | 240 V |
| Rated power: | 36 W |
| Energy consumption: | 36 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | Cool White |
| Beam angle: | 120° |
| Luminous flux: | 5040 lm |
| Luminous efficacy: | 140 lm/W |
| Colour rendering: | 80 CRI |
| Lifetime: | 100000 h |
| Switching cycles: | 100000 |
| Material: | Steel |
| Colour: | White |
| EAN: | 4099854083389 |
