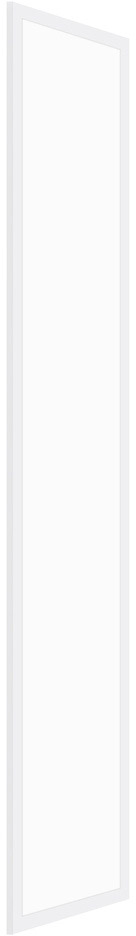

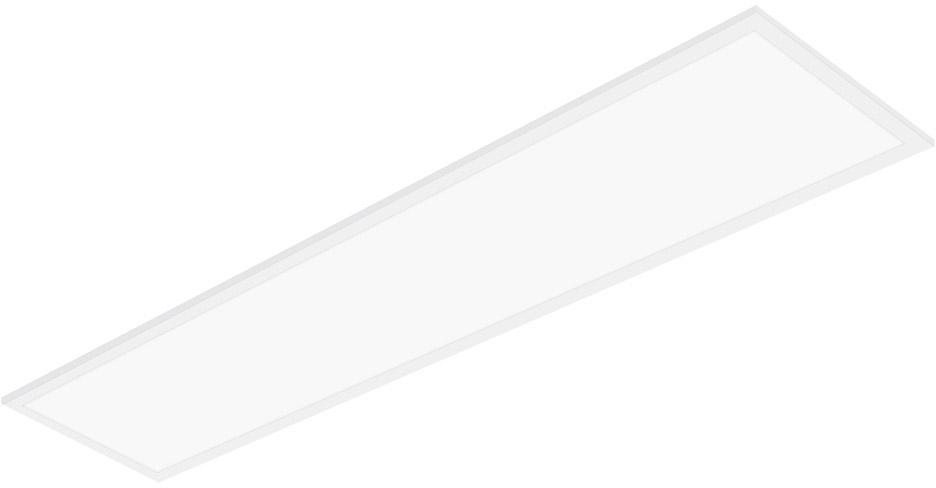

LEDVANCE PANEL COMFORT 1200 PS 33W 830 PS
€104.98 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 101414105
EAN: 4099854002731
Rectangular recessed panel luminaires with power select (PS) feature, for 1200 x 300 mm ceiling... more
All information about the product:
"LEDVANCE PANEL COMFORT 1200 PS 33W 830 PS"
Rectangular recessed panel luminaires with power select (PS) feature, for 1200 x 300 mm ceiling systems. Product features:
- Extruded aluminum frame
- Polystyrene diffuser
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Luminaire versions with IoT-ready DALI-2 driver available
- Lifetime (L80/B10): 70,000 h (at 25 °C)
- Highly versatile due to selectable power steps (Power Select - PS) on the driver
- Tool-free electrical connection due to push button connector
- Through-wiring possible with included connector box
- Energy savings thanks to high system efficacy: up to 130 lm/W
- High color consistency with SDCM 3
- Extended services such as energy monitoring and remote maintenance possible with DALI versions
- External driver for extended flexibility and easy installation
- Low flicker light thanks to special electronic control gear
- Emergency lighting possible with LEDVANCE Emergency Conversion Box
- 5 years guarantee
- Direct replacement for recessed luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 1200 x 300 mm
- Equipment / Accessories: Accessories for several mounting options available
- Connector box with 5-pole terminal included
- Security rope for luminaire included
- Security brackets preinstalled
- External control gear included
- Separate DC twist lock cable extension available
- Suitable for use with seperate Emergency Conversion Box
| Length: | 1195 mm |
| Width: | 295 mm |
| Height: | 11 mm |
| Net weight: | 2800 g |
| Nominal voltage: | 240 V |
| Rated power: | 33 W |
| Energy consumption: | 33 kWh/1000 |
| Colour temperature: | 3000 K |
| Light colour: | Warm White |
| Beam angle: | 110° |
| Luminous flux: | 4320 lm |
| Luminous efficacy: | 130,91 lm/W |
| Colour rendering: | 80 CRI |
| Lifetime: | 100000 h |
| Switching cycles: | 50000 |
| Material: | Steel |
| Colour: | White |
| EAN: | 4099854002731 |
