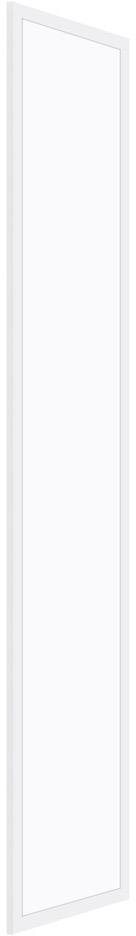

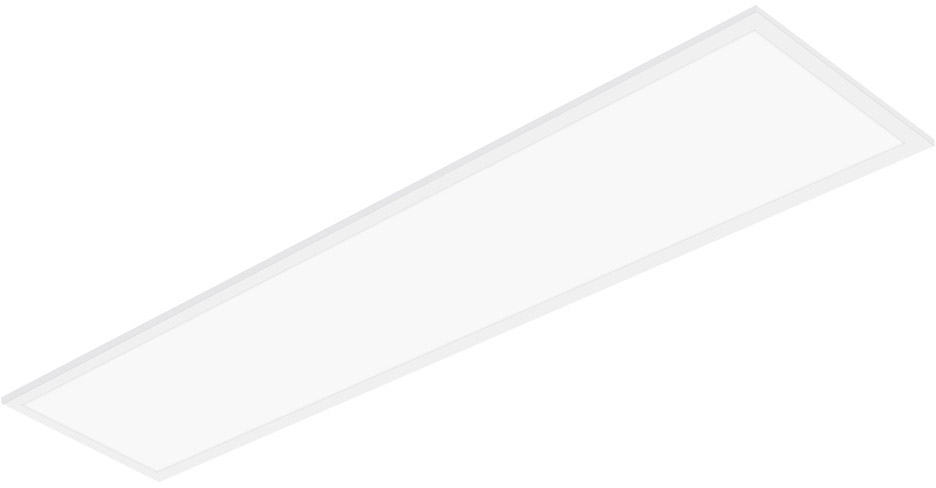

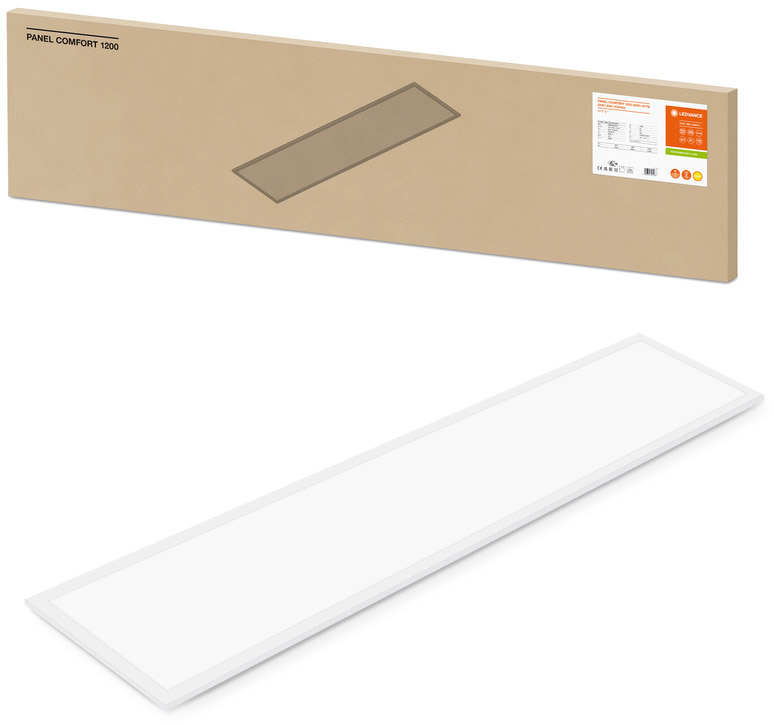

LEDVANCE PANEL COMFORT 1200 UGR
€114.51 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 101414115
EAN: 4099854004087
Rectangular recessed panel luminaires with power select (PS) feature and low glare, for 1200 x... more
All information about the product:
"LEDVANCE PANEL COMFORT 1200 UGR"
Rectangular recessed panel luminaires with power select (PS) feature and low glare, for 1200 x 300 mm ceiling systems. Product features:
- Extruded aluminum frame
- Polystyrene diffuser
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Luminaire versions available with on-off or IoT-ready DALI-2 driver
- Lifetime (L80/B10): 70,000 h (at 25 °C)
- Highly versatile due to selectable power steps (Power Select - PS) on the driver
- Tool-free electrical connection due to push button connector
- Through-wiring possible with included connector box
- Energy savings thanks to high system efficacy: up to 130 lm/W
- Good glare reduction (UGR
Length: | 1195 mm |
Width: | 295 mm |
Height: | 11 mm |
Net weight: | 2940 g |
Nominal voltage: | 240 V |
Rated power: | 33 W |
Energy consumption: | 33 kWh/1000 |
Colour temperature: | 3000 K |
Light colour: | Warm White |
Beam angle: | 90° |
Luminous flux: | 4320 lm |
Luminous efficacy: | 130,91 lm/W |
Colour rendering: | 80 CRI |
Lifetime: | 100000 h |
Switching cycles: | 50000 |
Material: | Steel |
Colour: | White |
EAN: | 4099854004087 |
