LEDVANCE PANEL COMFORT 625 UGR
€140.29 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 101414170
EAN: 4099854014482
Square recessed panel luminaire with low glare, for 625 x 625 mm ceiling systems and DALI-2 IoT... more
All information about the product:
"LEDVANCE PANEL COMFORT 625 UGR"

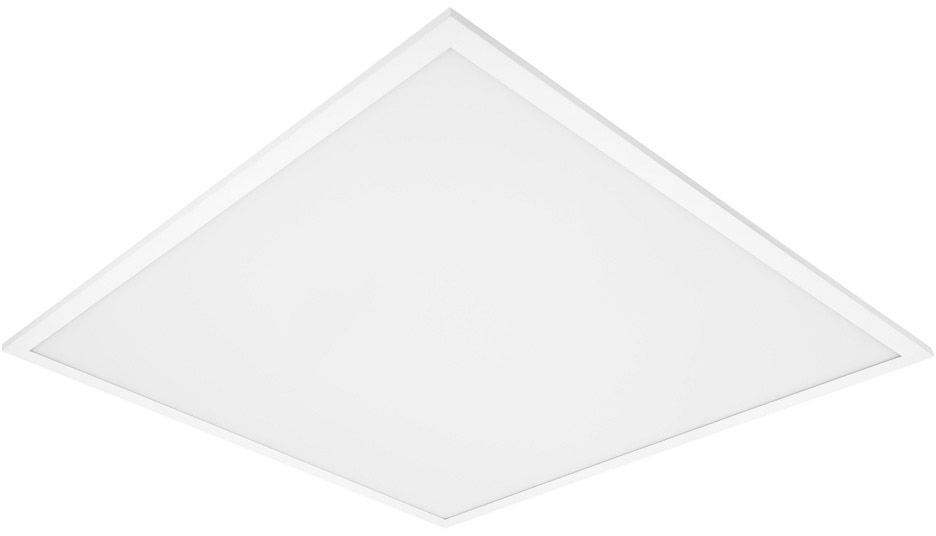

Square recessed panel luminaire with low glare, for 625 x 625 mm ceiling systems and DALI-2 IoT technology. Product features:
- IoT-ready luminaire with DALI-2 technology
- Suitable for central battery emergency installations acc
- to EN 60598-2-22
- Push DIM function for dimming and switching directly on a pushbutton
- Versions available with CRI 90
- Extruded aluminum frame
- Polystyrene diffuser
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Lifetime (L80/B10): 70,000 h (at 25 °C)
- Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
- Tool-free electrical connection due to push button connector
- Through-wiring possible with included connector box
- Energy savings thanks to high system efficacy: up to 130 lm/W
- Good glare reduction (UGR
| Length: | 620 mm |
| Width: | 620 mm |
| Height: | 32 mm |
| Net weight: | 2000 g |
| Nominal voltage: | 240 V |
| Rated power: | 28 W |
| Energy consumption: | 28 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | Cool White |
| Beam angle: | 90° |
| Luminous flux: | 3640 lm |
| Luminous efficacy: | 130 lm/W |
| Colour rendering: | 80 CRI |
| Lifetime: | 100000 h |
| Switching cycles: | 50000 |
| Dimmable: | Yes |
| Material: | Steel |
| Colour: | White |
| EAN: | 4099854014482 |
