LEDVANCE PANEL COMFORT 600 DALI 28W 840 DALIVR
€127.53 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 101414175
EAN: 4099854014505

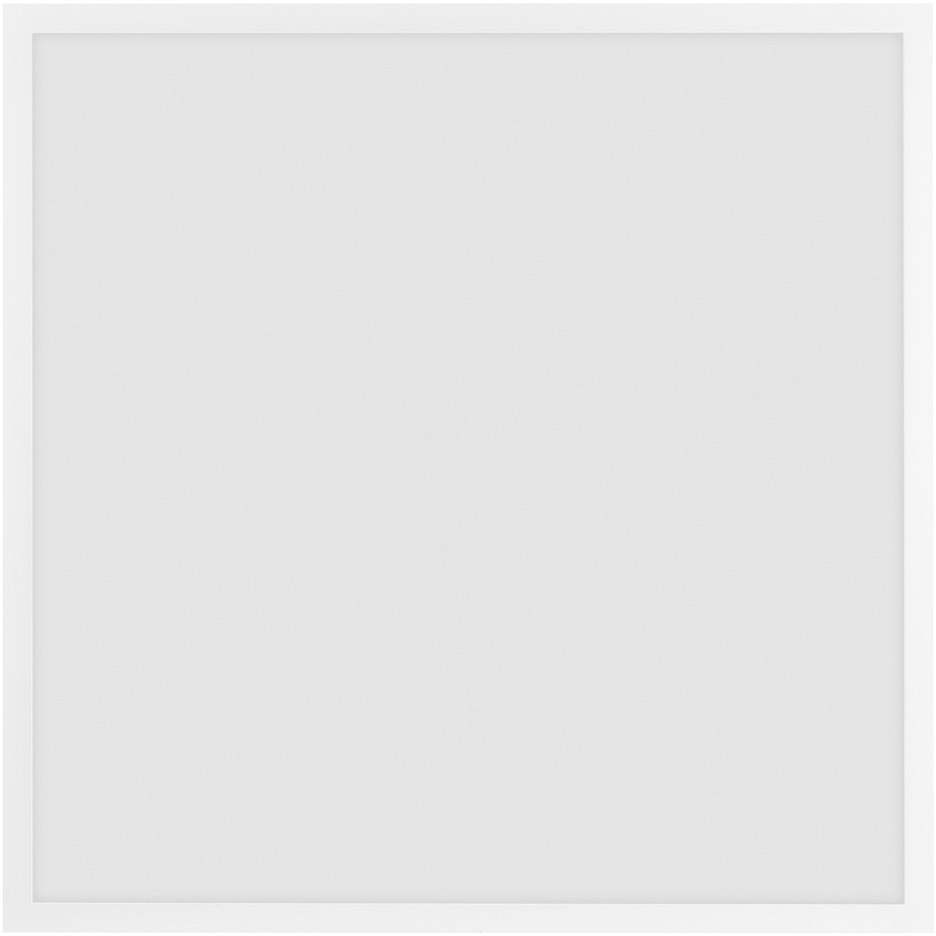

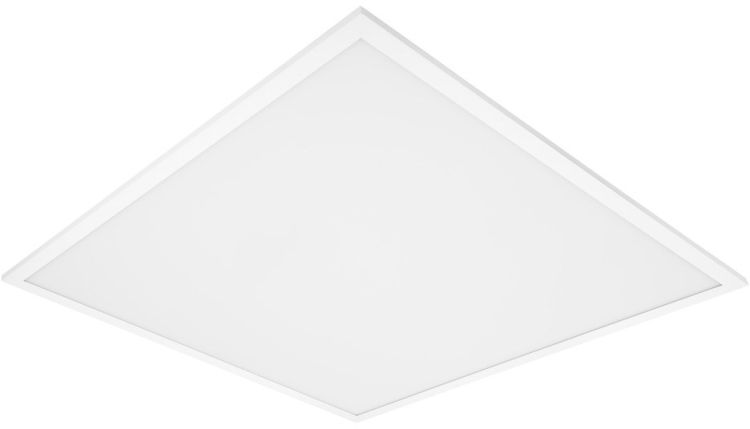

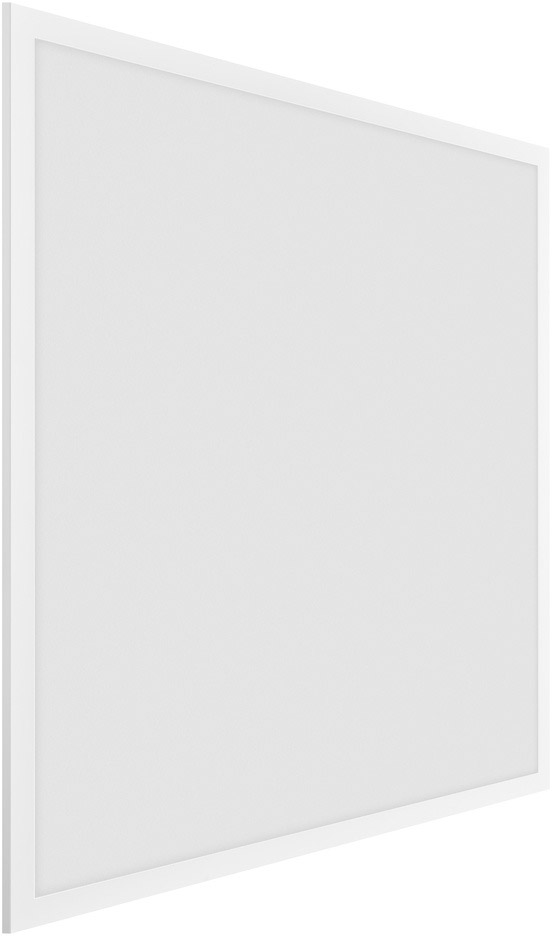

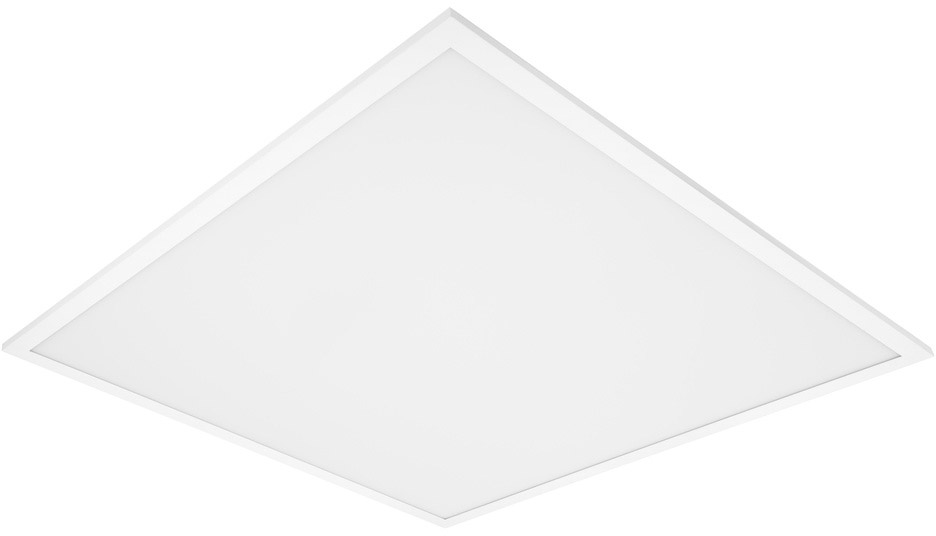

Square recessed panel luminaire, for 600 x 600 mm ceiling systems and DALI-2 IoT technology.... more
All information about the product:
"LEDVANCE PANEL COMFORT 600 DALI 28W 840 DALIVR"
Square recessed panel luminaire, for 600 x 600 mm ceiling systems and DALI-2 IoT technology. Product features:
- IoT-ready luminaire with DALI-2 technology
- Suitable for central battery emergency installations acc
- to EN 60598-2-22
- Push DIM function for dimming and switching directly on a pushbutton
- Extruded aluminum frame
- Polystyrene diffuser
- 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
- Lifetime (L80/B10): 70,000 h (at 25 °C)
- Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
- Tool-free electrical connection due to push button connector
- Through-wiring possible with included connector box
- Energy savings thanks to high system efficacy: up to 130 lm/W
- High color consistency with SDCM 3
- Extended services such as energy monitoring and remote maintenance possible with DALI versions
- External driver for extended flexibility and easy installation
- Low flicker light thanks to special electronic control gear
- Suitable for emergency lighting
- 5 years guarantee
- Direct replacement for recessed luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
- Equipment / Accessories: Accessories for several mounting options available
- Connector box with 5-pole terminal included
- Security rope for luminaire included
- Security brackets preinstalled
- External control gear included
- Suitable for use with seperate Emergency Conversion Box
| Length: | 595 mm |
| Width: | 595 mm |
| Height: | 32 mm |
| Net weight: | 1730 g |
| Nominal voltage: | 240 V |
| Rated power: | 28 W |
| Energy consumption: | 28 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | Cool White |
| Beam angle: | 110° |
| Luminous flux: | 3640 lm |
| Luminous efficacy: | 130 lm/W |
| Colour rendering: | 80 CRI |
| Lifetime: | 100000 h |
| Switching cycles: | 50000 |
| Dimmable: | Yes |
| Material: | Steel |
| Colour: | White |
| EAN: | 4099854014505 |
Further links
We will be happy to advise you!
You can reach us:
| Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Learn more about us!
Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads
"LEDVANCE PANEL COMFORT 600 DALI 28W 840 DALIVR"
| Document type | File size | |
|
Operating instructions | 3.35 MB |
