LEDVANCE PANEL COMFORT 600 DALI 33W 865 DALIVR

Ledvance
Preview: LEDVANCE PANEEL KOMFORT 600 DALI 33W 865 DALIVR Preview: LEDVANCE PANEEL KOMFORT 600 DALI 33W 865 DALIVR Preview: LEDVANCE PANEEL KOMFORT 600 DALI 33W 865 DALIVR Preview: LEDVANCE PANEEL KOMFORT 600 DALI 33W 865 DALIVR Preview: LEDVANCE PANEEL KOMFORT 600 DALI 33W 865 DALIVR
LEDVANCE PANEEL KOMFORT 600 DALI 33W 865 DALIVR
LEDVANCE PANEEL KOMFORT 600 DALI 33W 865 DALIVR
LEDVANCE PANEEL KOMFORT 600 DALI 33W 865 DALIVR
LEDVANCE PANEEL KOMFORT 600 DALI 33W 865 DALIVR
LEDVANCE PANEEL KOMFORT 600 DALI 33W 865 DALIVR

€135.24 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 101414230
EAN: 4099854015410
Description Videos 0 Downloads 1 Accessories 5
Description
Square recessed panel luminaire, for 600 x 600 mm ceiling systems and DALI-2 IoT technology.... more
Back to the overview
All information about the product:
"LEDVANCE PANEL COMFORT 600 DALI 33W 865 DALIVR"

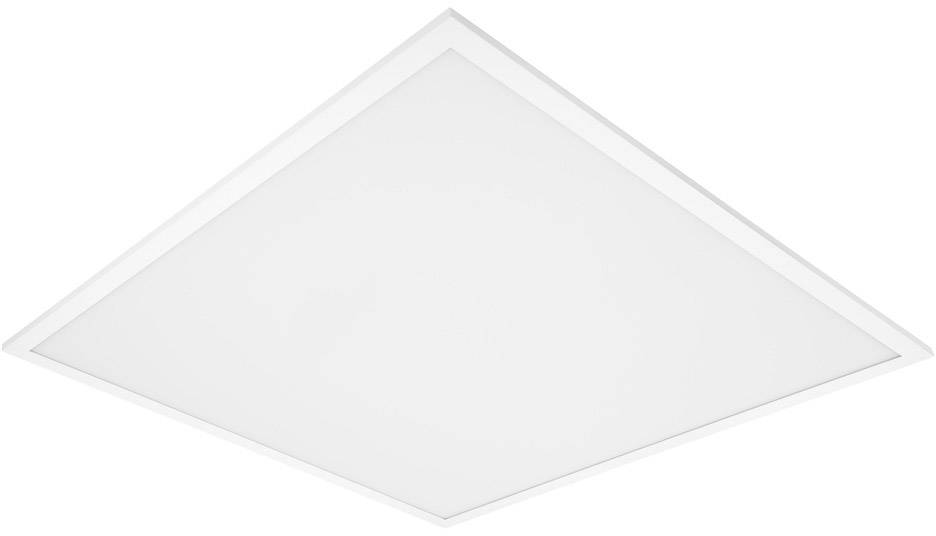

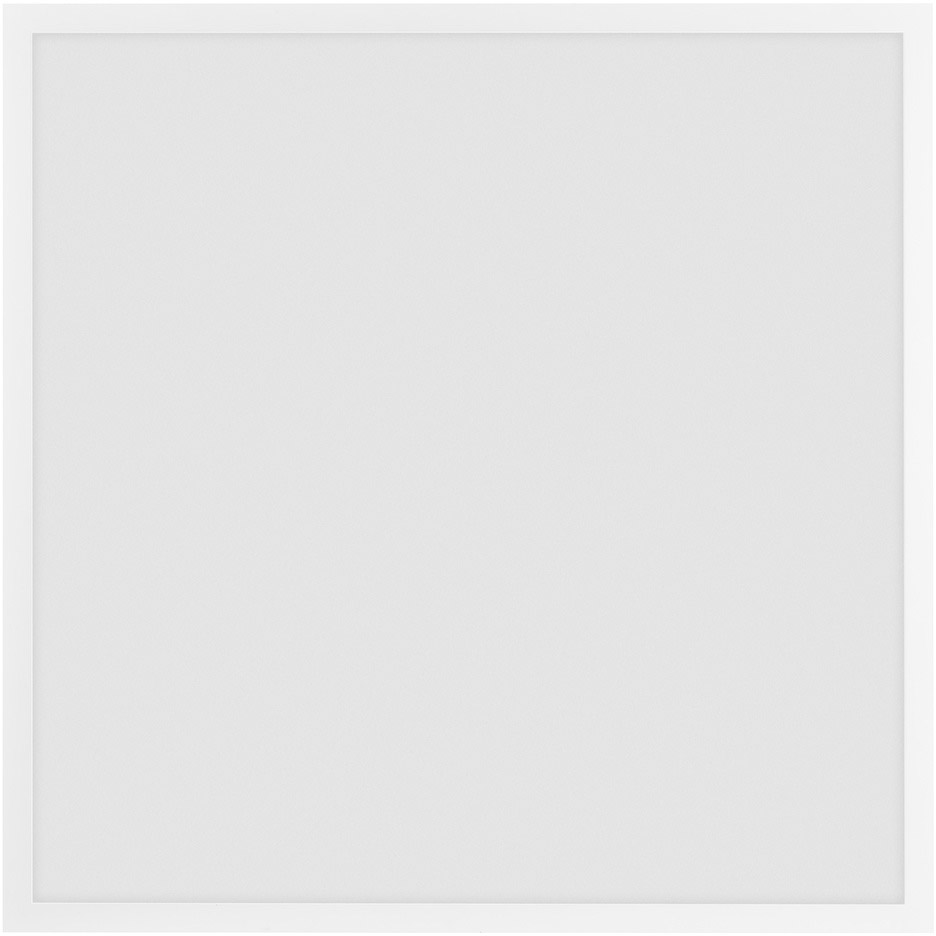

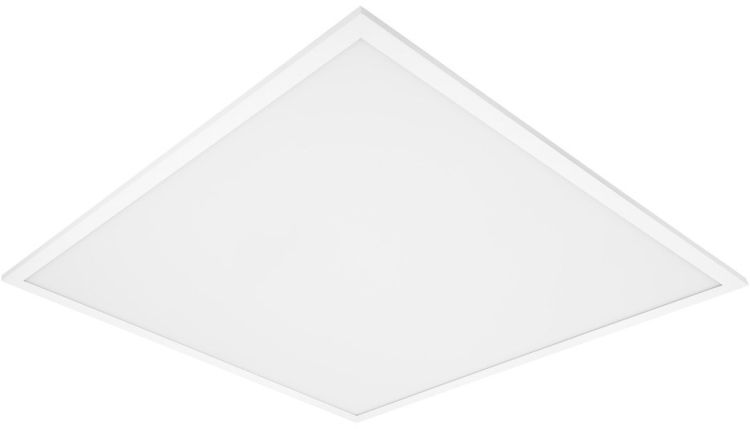

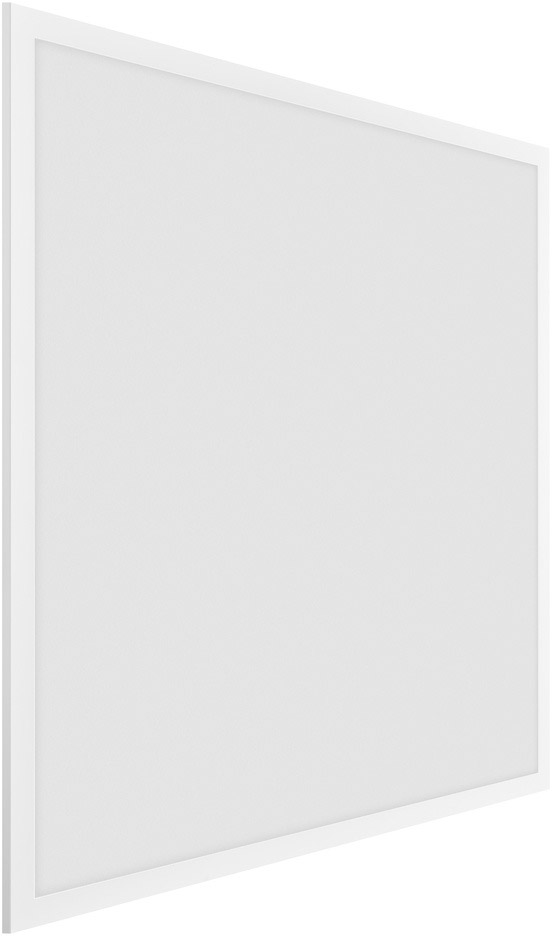

Square recessed panel luminaire, for 600 x 600 mm ceiling systems and DALI-2 IoT technology. Product features:
  • IoT-ready luminaire with DALI-2 technology
  • Suitable for central battery emergency installations acc
  • to EN 60598-2-22
  • Push DIM function for dimming and switching directly on a pushbutton
  • Extruded aluminum frame
  • Polystyrene diffuser
  • 5-pole terminal block, cable cross section up to 5 x 2.5 mm²
  • Lifetime (L80/B10): 70,000 h (at 25 °C)
Product benefits:
  • Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
  • Tool-free electrical connection due to push button connector
  • Through-wiring possible with included connector box
  • Energy savings thanks to high system efficacy: up to 130 lm/W
  • High color consistency with SDCM 3
  • Extended services such as energy monitoring and remote maintenance possible with DALI versions
  • External driver for extended flexibility and easy installation
  • Low flicker light thanks to special electronic control gear
  • Suitable for emergency lighting
  • 5 years guarantee
Areas of application:
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
  • Suitable for recessed ceiling systems with grid size of 600 x 600 mm
  • Equipment / Accessories: Accessories for several mounting options available
  • Connector box with 5-pole terminal included
  • Security rope for luminaire included
  • Security brackets preinstalled
  • External control gear included
  • Suitable for use with seperate Emergency Conversion Box
Technical data:
Length:595 mm
Width:595 mm
Height:32 mm
Net weight:1670 g
Nominal voltage:240 V
Rated power:33 W
Energy consumption:33 kWh/1000
Colour temperature:6500 K
Light colour:Cool Daylight
Beam angle:110°
Luminous flux:4320 lm
Luminous efficacy:130,91 lm/W
Colour rendering:80 CRI
Lifetime:100000 h
Switching cycles:50000
Dimmable: Yes
Material:Steel
Colour:White
EAN:4099854015410
