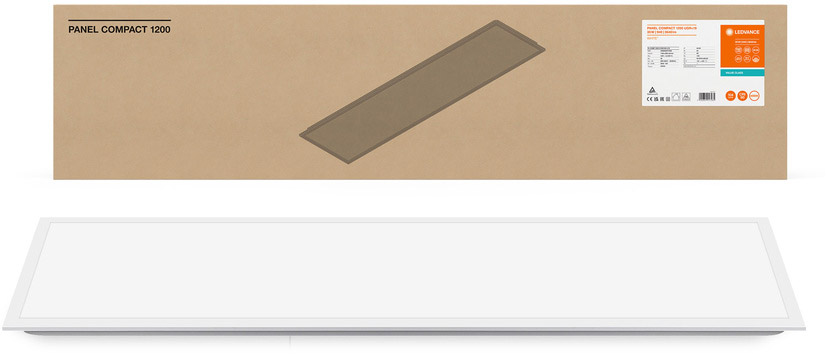

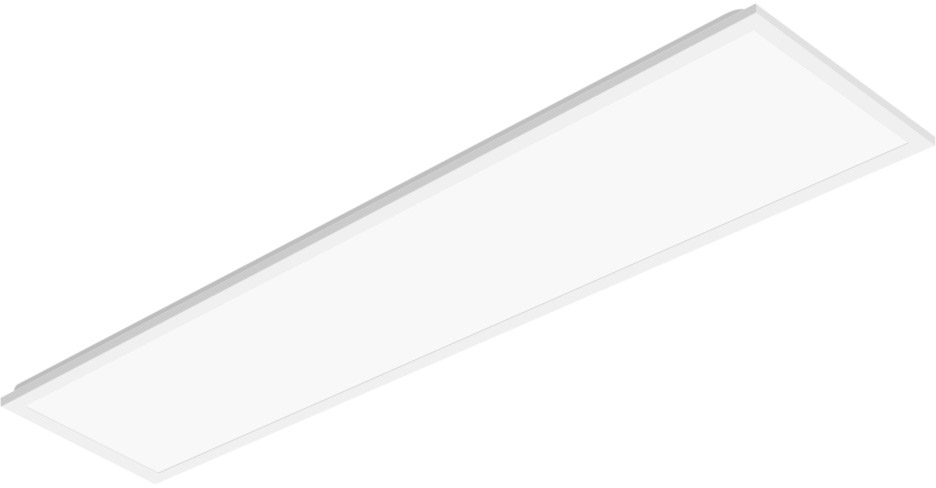

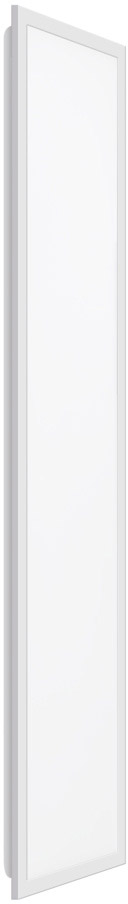

LEDVANCE PANEL COMPACT 1200 UGR
€73.16 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 101414345
EAN: 4099854017285
Rectangular recessed panel luminaire with low glare and CRI90, for 1200 x 300 mm ceiling systems.... more
All information about the product:
"LEDVANCE PANEL COMPACT 1200 UGR"
Rectangular recessed panel luminaire with low glare and CRI90, for 1200 x 300 mm ceiling systems. Product features:
- Extruded aluminum frame
- Polystyrene diffuser
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
- High color rendering index (Ra>90) with up to 104 lm/W
- Good glare reduction (UGR = 19)
- Low flicker light thanks to special electronic control gear
- External driver for extended flexibility and easy installation
- Versions with DALI ECG available
- 5 years guarantee
- Direct replacement for luminaires with fluorescent lamps

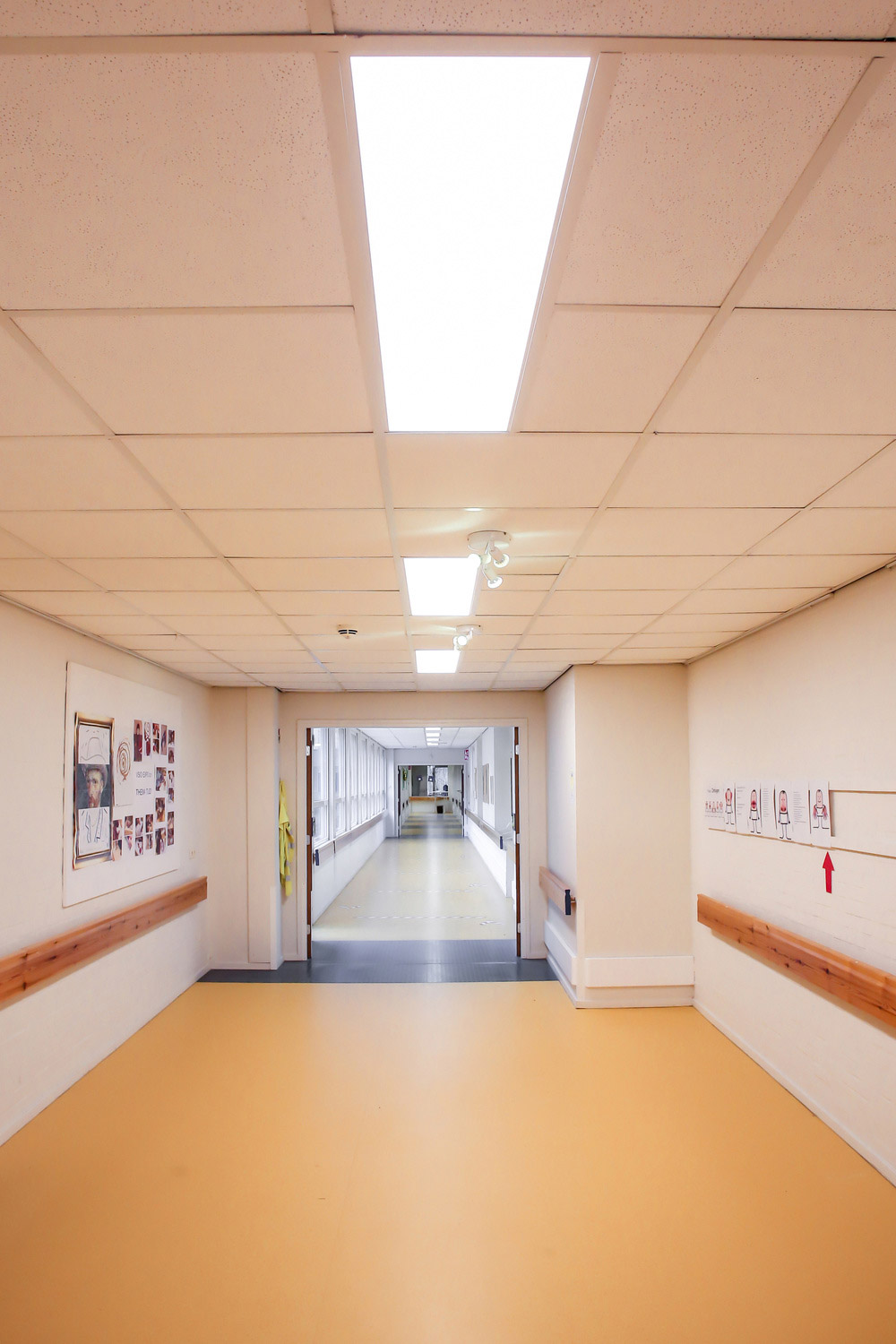

- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 1200 x 300 mm
- Equipment / Accessories: Accessories for several mounting options available
- Security rope for luminaire included
- Security brackets preinstalled
- External control gear included
- Suitable for use with seperate Emergency Conversion Box
- Connector box with 5-pole terminal for through-wiring separately available for cable cross sections up to 2.5 mm²
Length: | 1195 mm |
Width: | 295 mm |
Height: | 34 mm |
Net weight: | 1790 g |
Nominal voltage: | 240 V |
Rated power: | 35 W |
Energy consumption: | 35 kWh/1000 |
Colour temperature: | 4000 K |
Light colour: | Cool White |
Beam angle: | 90° |
Luminous flux: | 3640 lm |
Luminous efficacy: | 104 lm/W |
Colour rendering: | 90 CRI |
Lifetime: | 50000 h |
Switching cycles: | 50000 |
Material: | Aluminum |
Colour: | White |
EAN: | 4099854017285 |
