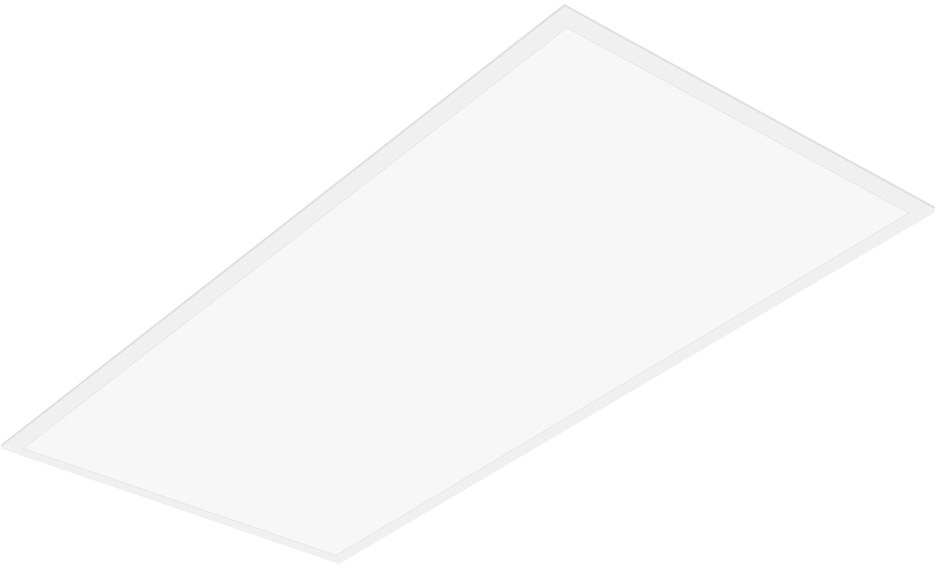

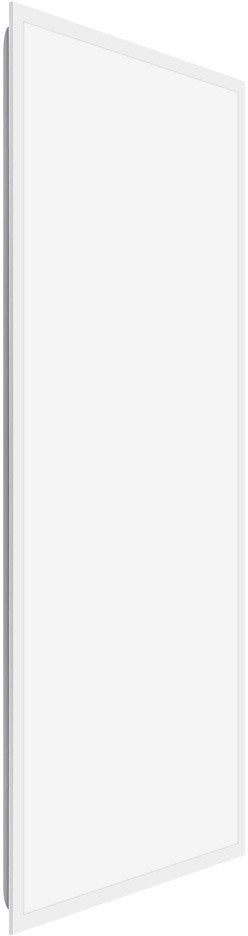

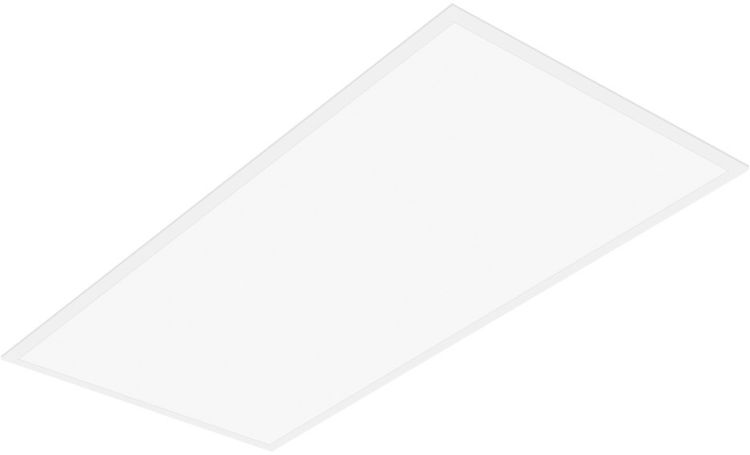

LEDVANCE PANEL COMPACT 1200 X 600 53W 840
€97.38 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 101414355
EAN: 4099854113680
Rectangular recessed panel luminaires, for 1200 x 600 mm ceiling systems. Product features:... more
All information about the product:
"LEDVANCE PANEL COMPACT 1200 X 600 53W 840"
Rectangular recessed panel luminaires, for 1200 x 600 mm ceiling systems. Product features:
- Extruded aluminum frame
- Polystyrene diffuser
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
- Low flicker light thanks to special electronic control gear
- Energy savings thanks to system efficacy of up to 110 lm/W
- External driver for extended flexibility and easy installation
- Versions with DALI ECG available
- 5 years guarantee
- Direct replacement for luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 1200 x 600 mm
- Equipment / Accessories: Accessories for several mounting options available
- Security rope for luminaire included
- Security brackets preinstalled
- External control gear included
- Suitable for use with seperate Emergency Conversion Box
- Connector box with 5-pole terminal for through-wiring separately available for cable cross sections up to 2.5 mm²
| Length: | 1195 mm |
| Width: | 595 mm |
| Height: | 34 mm |
| Net weight: | 3500 g |
| Nominal voltage: | 240 V |
| Rated power: | 53 W |
| Energy consumption: | 53 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | Cool White |
| Beam angle: | 120° |
| Luminous flux: | 5830 lm |
| Luminous efficacy: | 110 lm/W |
| Colour rendering: | 80 CRI |
| Lifetime: | 70000 h |
| Switching cycles: | 50000 |
| Material: | Steel |
| Colour: | White |
| EAN: | 4099854113680 |
