LEDVANCE PANEL COMPACT 600 DALI 33W 840 DALI
€99.12 *
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 101414420
EAN: 4099854017926

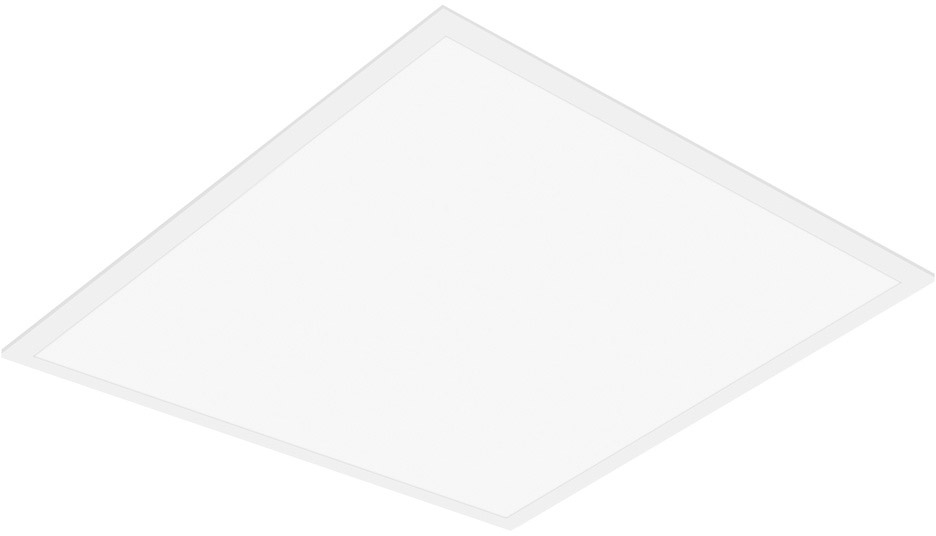

Square recessed panel luminaire, for 600 x 600 mm ceiling systems and DALI-2 technology. Product... more
All information about the product:
"LEDVANCE PANEL COMPACT 600 DALI 33W 840 DALI"
Square recessed panel luminaire, for 600 x 600 mm ceiling systems and DALI-2 technology. Product features:
- Suitable for central battery emergency installations acc
- to EN 60598-2-22
- Push DIM function for dimming and switching directly on a pushbutton
- Extruded aluminum frame
- Polystyrene diffuser
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
- Low flicker light thanks to special electronic control gear
- External driver for extended flexibility and easy installation
- Suitable for emergency lighting
- 5 years guarantee
- Direct replacement for luminaires with fluorescent lamps

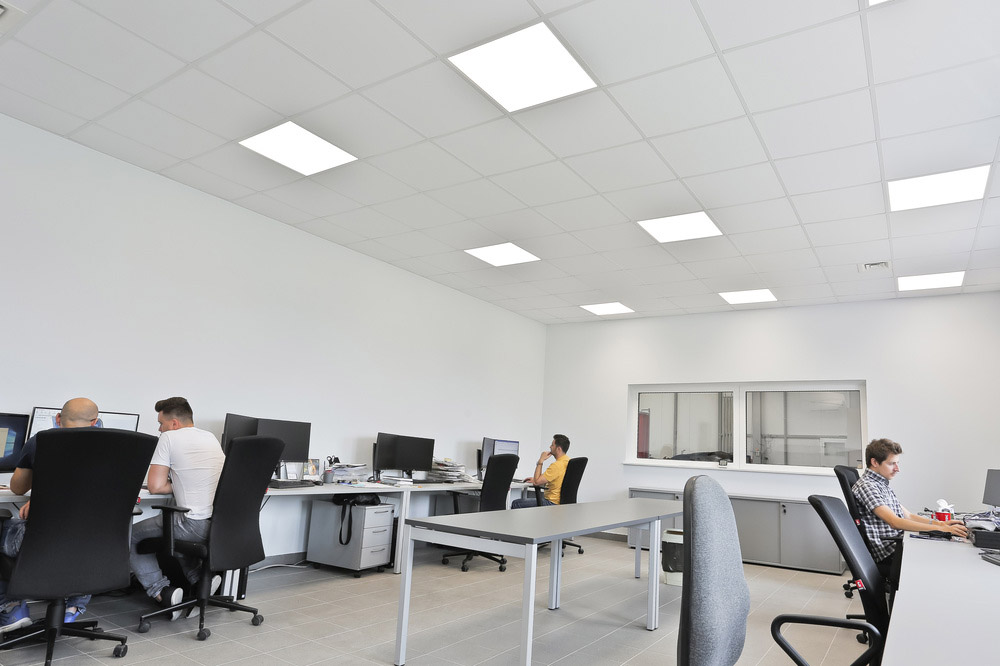

- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
- Suitable for recessed ceiling systems with grid size of 600 x 600 mm
- Equipment / Accessories: Accessories for several mounting options available
- Security rope for luminaire included
- Security brackets preinstalled
- External control gear included
- Suitable for use with seperate Emergency Conversion Box
- Connector box with 5-pole terminal for through-wiring separately available for cable cross sections up to 2.5 mm²
Length: | 595 mm |
Width: | 595 mm |
Height: | 32 mm |
Net weight: | 1543 g |
Nominal voltage: | 240 V |
Rated power: | 33 W |
Energy consumption: | 33 kWh/1000 |
Colour temperature: | 4000 K |
Light colour: | Cool White |
Beam angle: | 120° |
Luminous flux: | 3630 lm |
Luminous efficacy: | 110 lm/W |
Colour rendering: | 80 CRI |
Lifetime: | 70000 h |
Switching cycles: | 50000 |
Dimmable: | Yes |
Material: | Steel |
Colour: | White |
EAN: | 4099854017926 |
