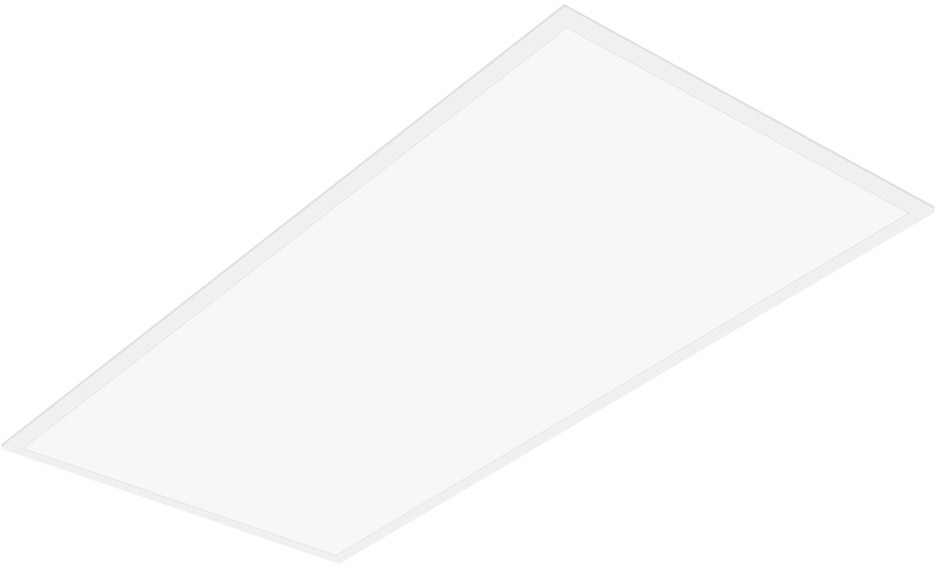

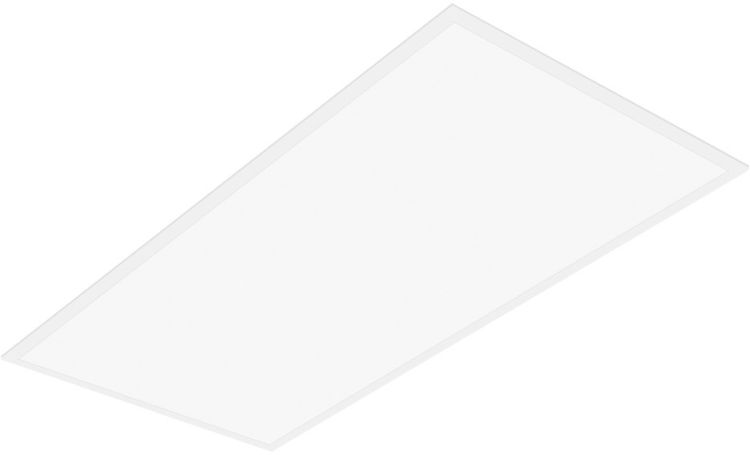

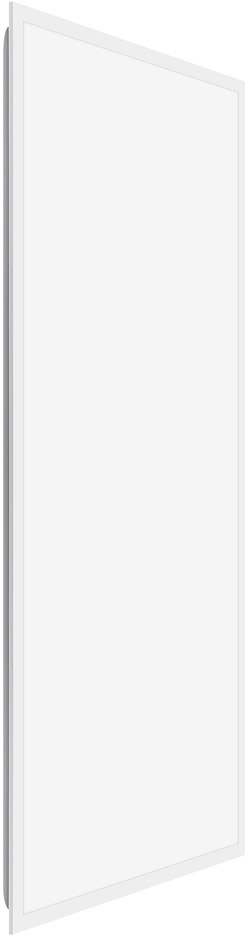

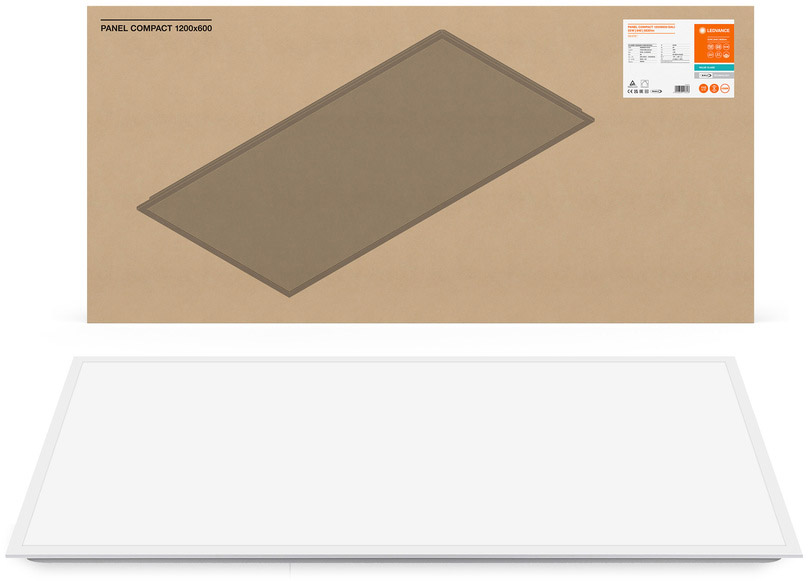

LEDVANCE PANEL COMPACT 1200 X 600 DALI 53W 840 DALI

€135.72 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 101414425
EAN: 4099854113703
Rectangular recessed panel luminaires, for 1200 x 600 mm ceiling systems and DALI-2 technology.... more
All information about the product:
"LEDVANCE PANEL COMPACT 1200 X 600 DALI 53W 840 DALI"
Rectangular recessed panel luminaires, for 1200 x 600 mm ceiling systems and DALI-2 technology. Product features:
  • Suitable for central battery emergency installations acc
  • to EN 60598-2-22
  • Push DIM function for dimming and switching directly on a pushbutton
  • Extruded aluminum frame
  • Polystyrene diffuser
  • Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Product benefits:
  • Low flicker light thanks to special electronic control gear
  • External driver for extended flexibility and easy installation
  • Suitable for emergency lighting
  • 5 years guarantee
Areas of application:
  • Direct replacement for luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
  • Suitable for recessed ceiling systems with grid size of 1200 x 600 mm
  • Equipment / Accessories: Accessories for several mounting options available
  • Security rope for luminaire included
  • Security brackets preinstalled
  • External control gear included
  • Suitable for use with seperate Emergency Conversion Box
  • Connector box with 5-pole terminal for through-wiring separately available for cable cross sections up to 2.5 mm²
Technical data:
Length:1195 mm
Width:595 mm
Height:34 mm
Net weight:3500 g
Nominal voltage:240 V
Rated power:53 W
Energy consumption:53 kWh/1000
Colour temperature:4000 K
Light colour:Cool White
Beam angle:120°
Luminous flux:5830 lm
Luminous efficacy:110 lm/W
Colour rendering:80 CRI
Lifetime:70000 h
Switching cycles:50000
Dimmable: Yes
Material:Steel
Colour:White
EAN:4099854113703
